Suitable Materials and Applications for Automotive Engine Crankshafts

Automotive engine crankshafts are vital components that convert the reciprocating motion of pistons into rotational motion, driving the vehicle. To meet the diverse demands of automotive engines, crankshafts must be made from robust and reliable materials while being designed for optimal performance and durability. Here's a breakdown of materials and configurations suitable for automotive engine crankshafts:

Materials Suitable for Automotive Engine Crankshafts

1. Forged Steel

• Applications: High-performance, heavy-duty, and commercial vehicles.
• Features:
  • Made by forging high-strength steel alloys.
  • Superior resistance to fatigue, bending, and high stress.
  • Common in engines with high RPM and torque requirements.
• Benefits:
  • Long-lasting and highly durable under extreme conditions.
  • Ideal for turbocharged or supercharged engines.

2. Cast Iron

• Applications: Standard passenger vehicles and budget-friendly engines.
• Features:
  • Produced using casting techniques, often with nodular (ductile) iron for added strength.
  • Cost-effective material with moderate durability.
• Benefits:
  • Sufficient for vehicles with low to medium power output.
  • Reduces manufacturing costs without sacrificing functionality for everyday use.

3. Billet Steel

• Applications: Racing and custom-built engines.
• Features:
  • Machined from a single billet of high-grade steel or aluminum alloy.
  • Offers unmatched strength and precision.
  • Designed for engines operating under extreme conditions.
• Benefits:
  • Fully customizable for specific engine needs.
  • Superior resistance to torsional stress and wear.

4. Aluminum Alloys

• Applications: Lightweight engines and experimental vehicles.
• Features:
  • Lightweight material to reduce engine weight and enhance efficiency.
  • Limited to applications requiring low to medium torque.
• Benefits:
  • Improves fuel economy and engine response.
  • Not as strong as steel but useful for niche applications.

5. Carbon Fiber Reinforced Polymers (Experimental)

• Applications: High-efficiency and electric-hybrid prototypes.
• Features:
  • Lightweight and corrosion-resistant.
  • Currently under development for specialized applications.
• Benefits:
  • Reduces overall vehicle weight.
  • Limited use in mainstream automotive engines due to cost and strength limitations.

Key Configurations of Crankshafts

1. Inline Engine Crankshafts

• Usage: Straight-line piston arrangements (e.g., inline-4, inline-6 engines).
• Features:
  • Simpler design with fewer balancing challenges.
  • Commonly made from cast iron or forged steel.

2. V-Type Engine Crankshafts

• Usage: Engines with angled cylinders (e.g., V6, V8, V12).
• Features:
  • Incorporates complex counterweights for balance.
  • Typically made from forged or billet steel for strength and durability.

3. Flat or Boxer Engine Crankshafts

• Usage: Horizontally opposed piston configurations (e.g., Subaru, Porsche engines).
• Features:
  • Compact design with unique balancing requirements.
  • Built from high-strength materials for precision and durability.

Factors to Consider When Selecting Crankshafts

1. Engine Type: Match the crankshaft material and design to the specific engine layout and power requirements.
2. Performance Needs: High-performance engines benefit from forged or billet steel crankshafts, while standard vehicles can use cast iron.
3. Durability: Consider materials with high wear resistance for extended lifespan.
4. Budget: Balance cost with performance; cast iron is more affordable, while billet steel offers premium durability.

Benefits of Using Suitable Crankshafts

• Durability: High-quality materials withstand intense pressures and wear.
• Efficiency: Optimized designs improve energy transfer and engine performance.
• Reliability: Proper material selection ensures long-term operation with minimal failures.
• Versatility: Materials and configurations cater to a wide range of vehicles, from passenger cars to heavy-duty trucks.

Applications of Suitable Crankshafts

• Passenger Vehicles: Cost-effective cast iron crankshafts for daily commuting.
• High-Performance Cars: Forged or billet steel crankshafts for enhanced strength and performance.
• Heavy-Duty Vehicles: Forged steel crankshafts to handle high loads and torque.
• Racing and Custom Engines: Billet steel crankshafts for extreme precision and durability.
• Eco-Friendly Vehicles: Lightweight aluminum or hybrid materials to improve efficiency.

Maintenance and Care for Crankshafts

1. Regular Inspection: Check for cracks, scoring, or wear during routine engine servicing.
2. Proper Lubrication: Use high-quality engine oil to reduce friction and prevent wear.
3. Dynamic Balancing: Maintain balance to reduce vibrations and ensure smooth operation.
4. Timely Replacement of Bearings: Avoid undue stress on the crankshaft by replacing worn bearings promptly.

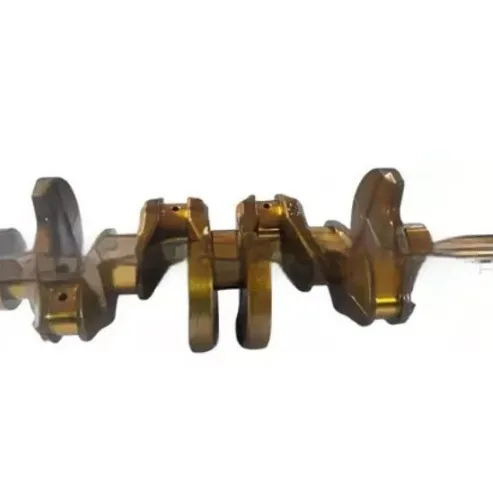

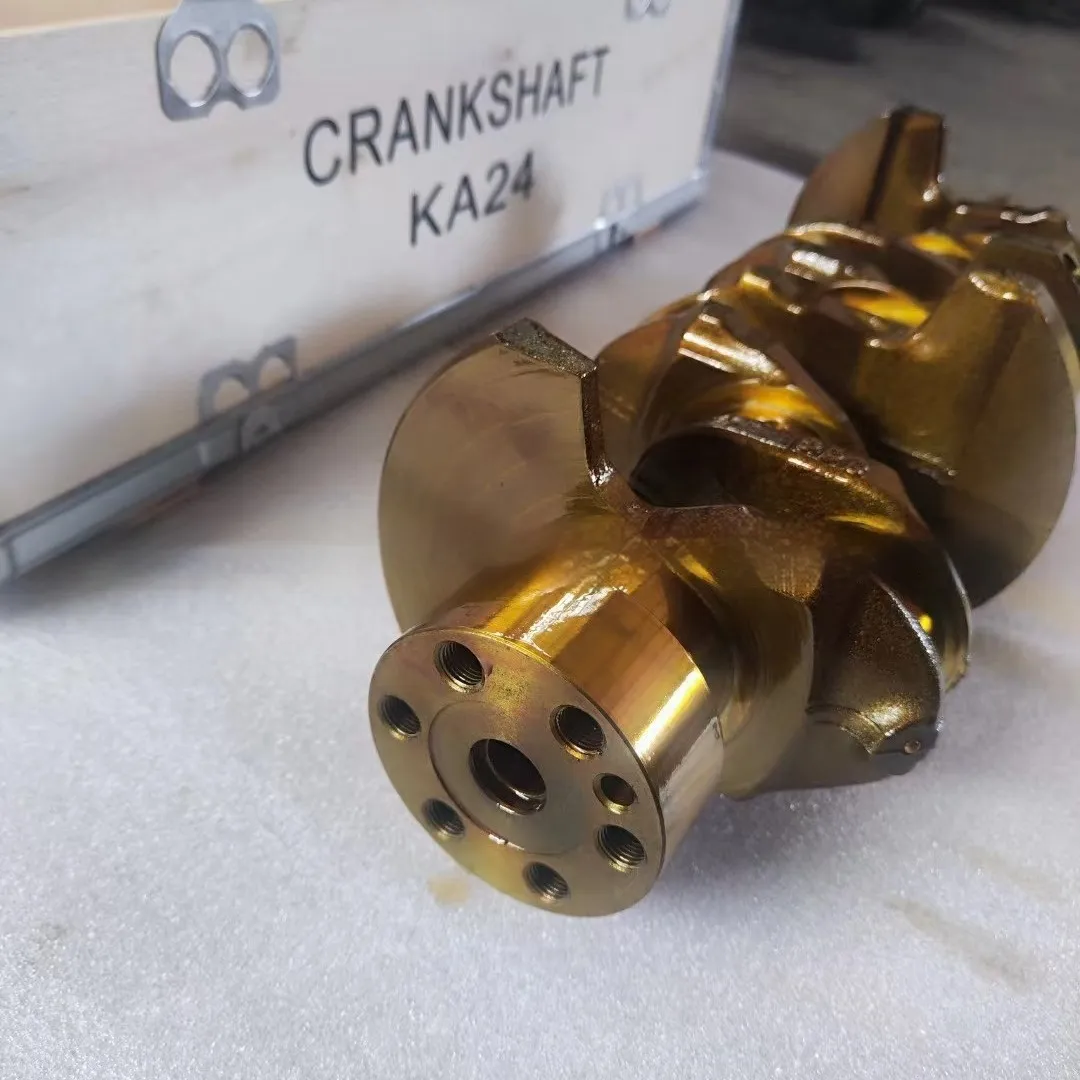

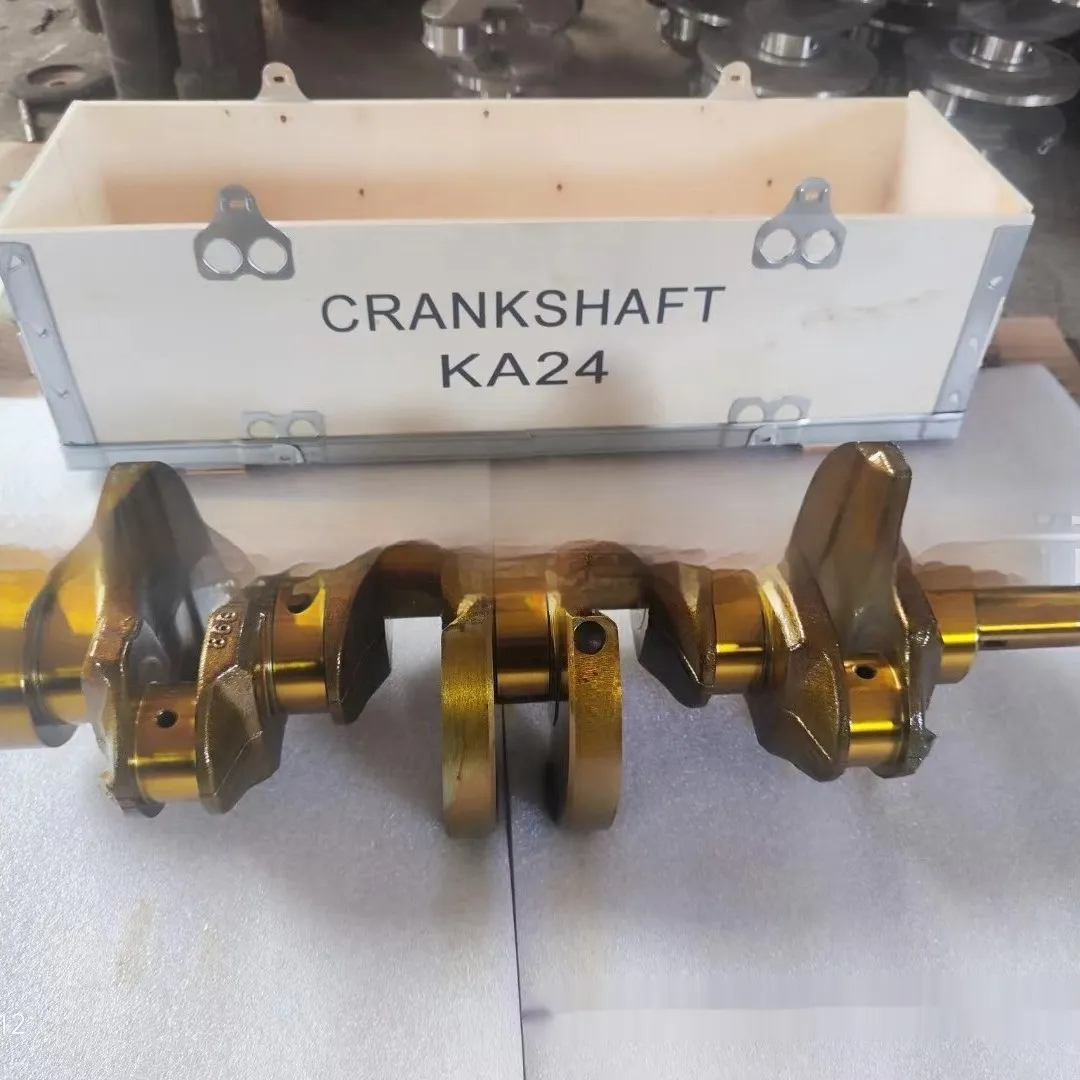

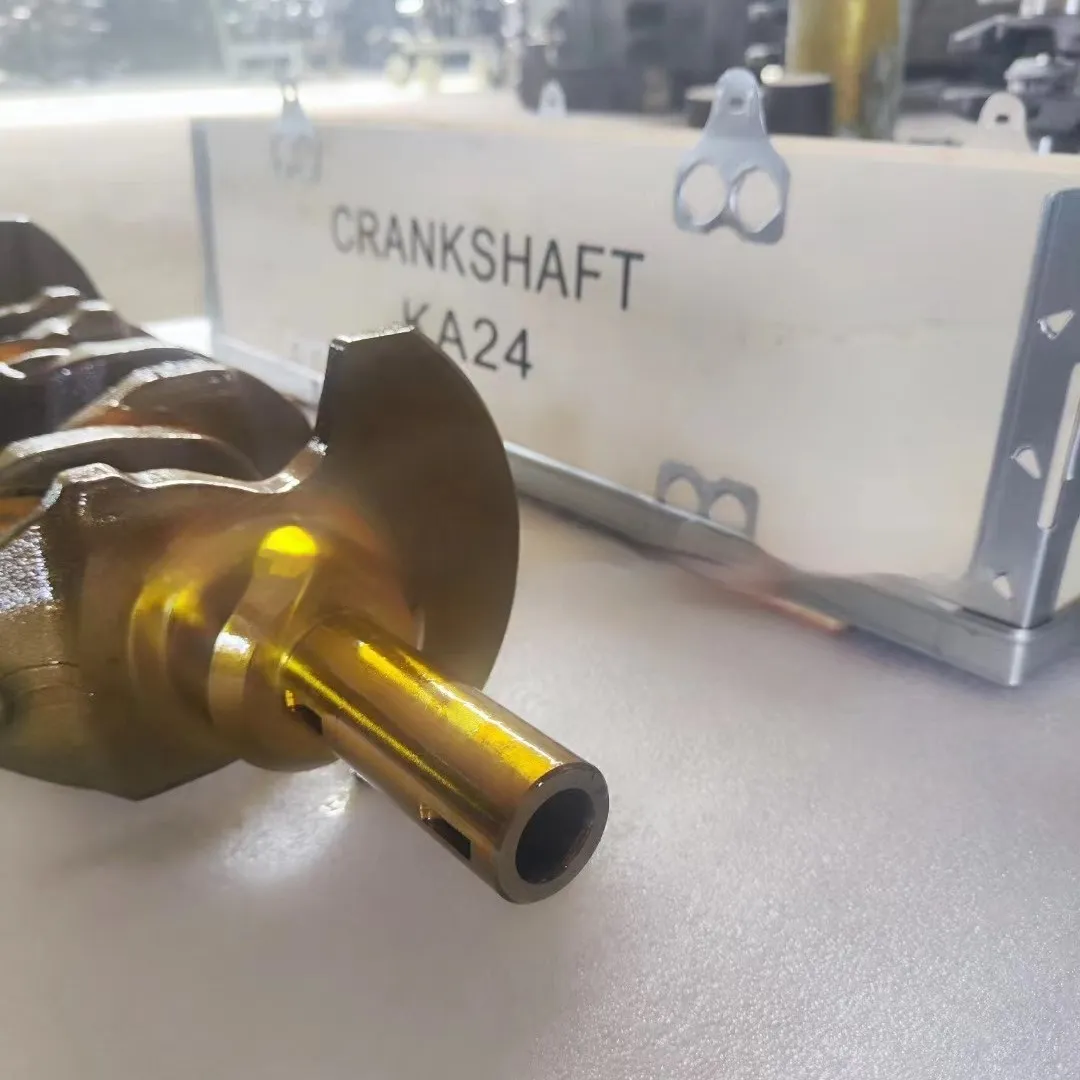

Product information:

Material: Alloy
Model: KA24
Tensile strength: 800 (mPa)
Elongation rate: 800 (%)
Applicable vehicle model: NISSAN

Packing list:

Crankshaft * 1
