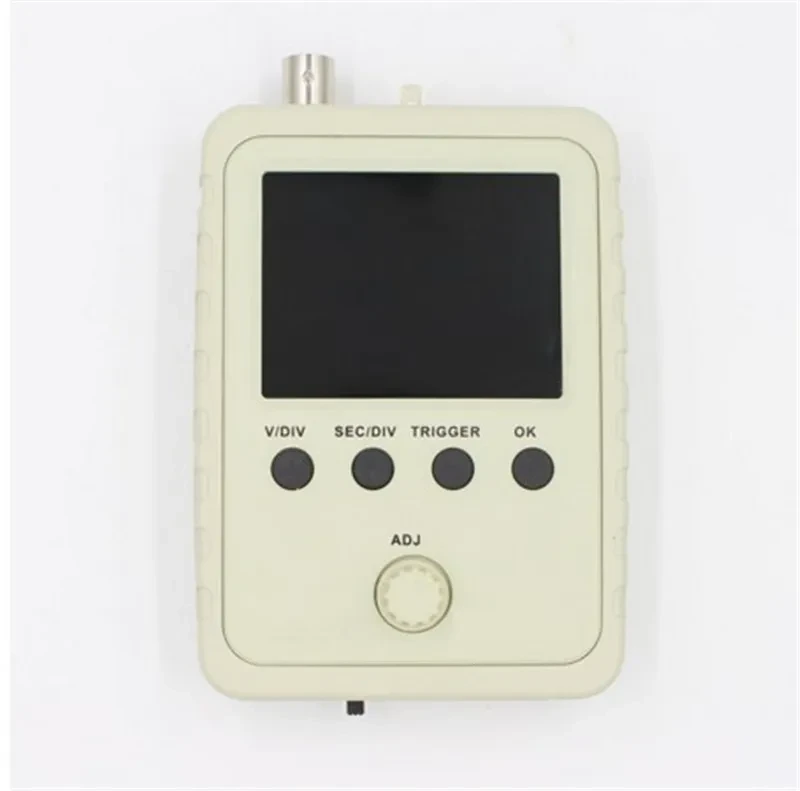

Oscilloscope electronic teaching and training DIY kit

Shell oscilloscope uses 9V DC power supply (the power supply voltage should not exceed 10V! Otherwise it may burn the machine). The kit itself does not include a power supply. Users need to prepare the power supply by themselves, and the power supply current should be able to provide more than 200mA.
Characteristic index:
The highest real-time sampling rate: 1Msps
Precision: 12Bit
Sampling buffer depth: 1024 bytes
Analog bandwidth: 0-200KHz
Vertical sensitivity: 5mV/Div – 20V/Div (in 1-2-5 way)
Adjustable vertical displacement, with instructions
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling methods include DC/AC/GND
Horizontal time base range: 10μs/Div – 50s/Div (increase by 1-2-5)
With automatic, conventional and single trigger modes, it is convenient to capture instant waveforms
Can be triggered by rising or falling edge
Trigger level position is adjustable, with indication
Observe the waveform before the trigger (negative delay)
The waveform display can be frozen at any time (HOLD function)
Comes with 1KHz /3.3V square wave test signal source

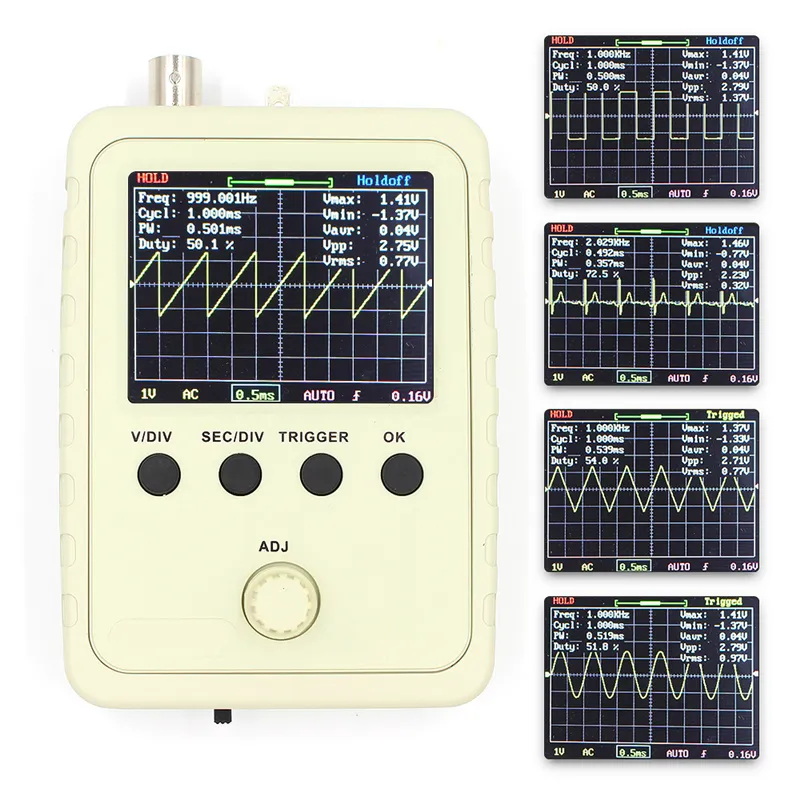

With digital display of waveform parameters, the parameters that can be displayed are: frequency, period, pulse width, duty cycle, maximum value, minimum value, average value, peak-to-peak value, effective value
Save/recall the waveform, the waveform does not disappear when turned off

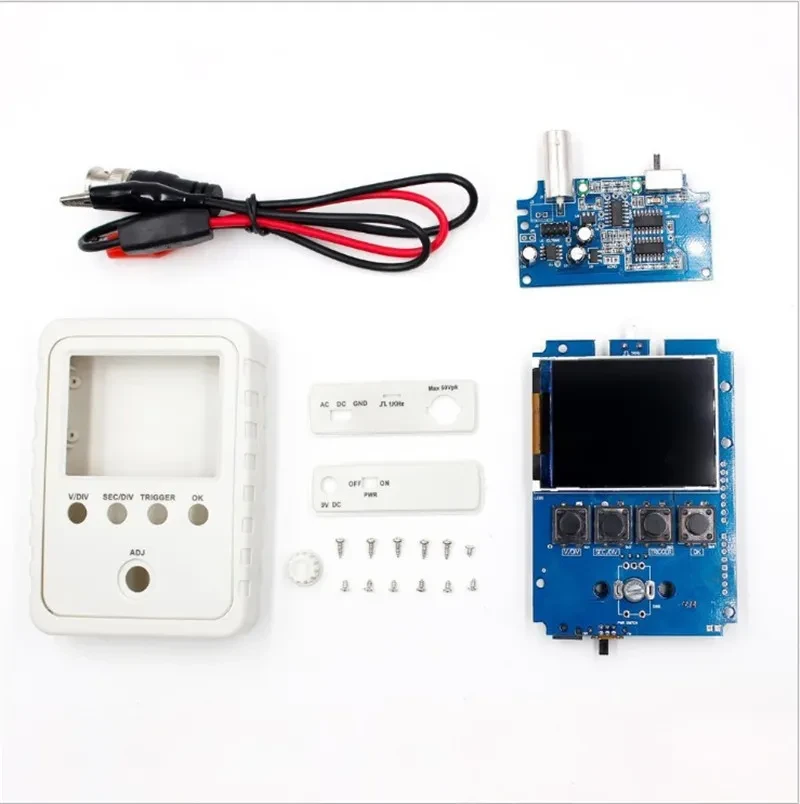

packing list:

15001K (SMD components have been welded):
All parts of the shell oscilloscope, the analog board chip components have been welded and tested

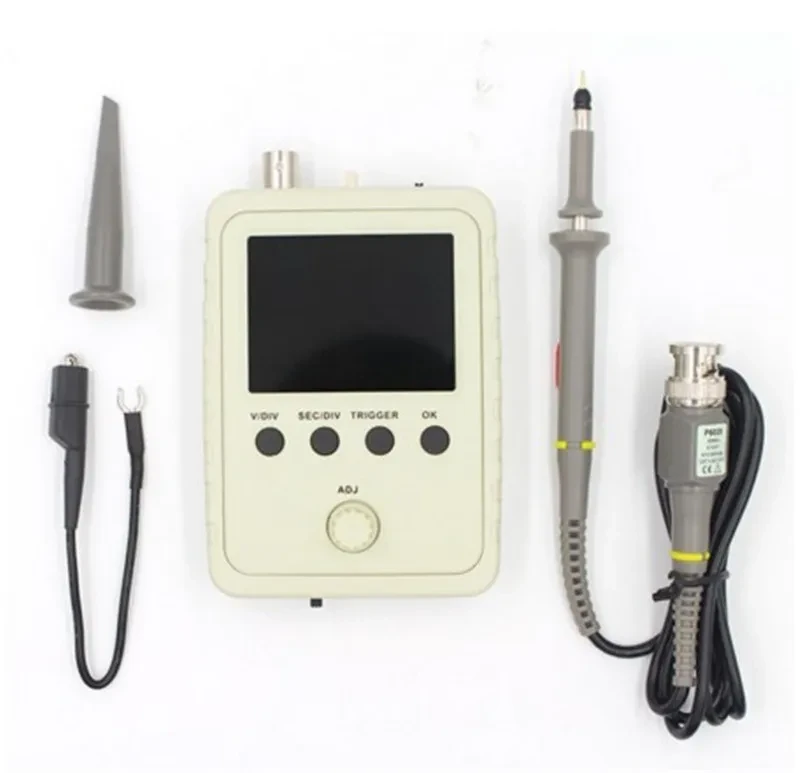

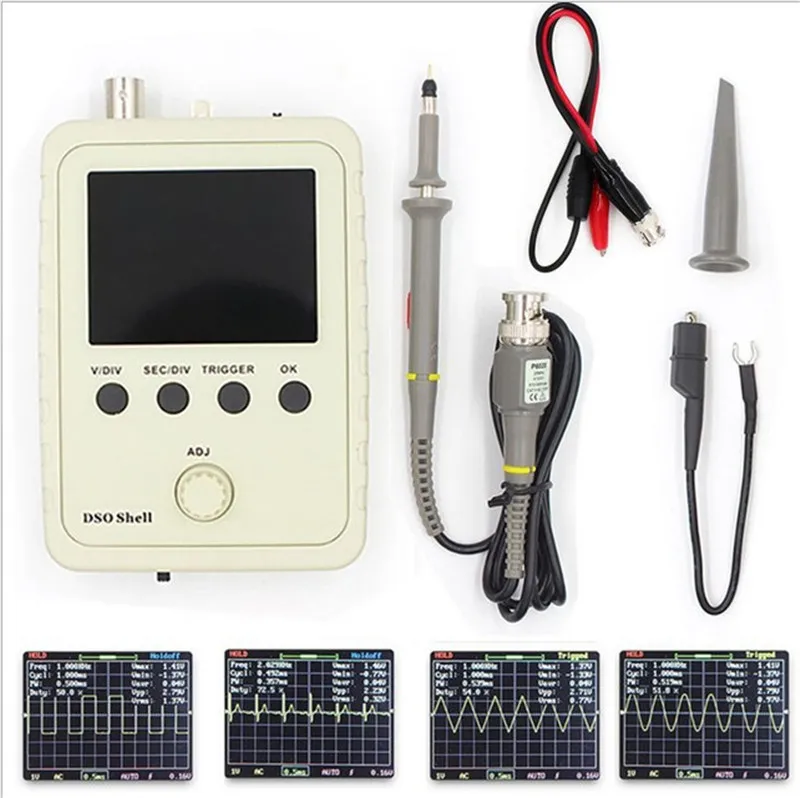

BNC fish clip probe
Assembly instructions

Description:

The Oscilloscope Electronic Teaching and Training DIY Kit is the ultimate hands-on learning experience for electronics enthusiasts, students, and DIY hobbyists looking to deepen their understanding of electrical circuits and signal analysis. This comprehensive kit is designed to teach you the essential skills required to operate and understand oscilloscopes, a key tool in the field of electronics. Whether you’re a beginner or an advanced user, this DIY kit helps you gain practical knowledge of how oscilloscopes work, while simultaneously offering you the ability to build and modify circuits for enhanced learning.

An oscilloscope is an indispensable instrument in electronics used to observe varying signal voltages, and this DIY kit offers a practical, affordable, and interactive approach to mastering the technology behind it. Ideal for both classroom settings and personal projects, the kit includes all necessary components to build your very own functional oscilloscope. Through the assembly process, you’ll not only develop valuable hands-on skills but also conceptualize the underlying principles of electronic measurement tools.

The kit includes a range of components such as soldering materials, oscilloscope parts, training guides, and detailed instructions. Once completed, you’ll have a fully operational oscilloscope that can be used for a variety of tasks, including signal analysis, waveform generation, amplitude measurements, and more. This product is ideal for individuals who are interested in expanding their understanding of electronics while building a functional tool they can use in future projects.

Key Features:

• Comprehensive DIY Kit: The kit includes all the necessary components to build a fully functional oscilloscope, including circuit boards, resistors, capacitors, and more.

• Educational Training Tool: Designed to provide practical learning, helping users understand both the operation of oscilloscopes and the principles of electronic circuits.

• Hands-On Learning: A step-by-step assembly process that allows you to build your own oscilloscope, reinforcing the concepts taught during the building process.

• Compact and Portable: Once assembled, the oscilloscope is compact enough to be used in any laboratory, classroom, or workshop environment, making it easy to transport.

• Clear and Detailed Instructions: The kit comes with user-friendly instructions that guide you through each step of the assembly process, making it suitable for both beginners and experienced users.

• Wide Application Range: After assembly, the oscilloscope can be used for a variety of applications, such as signal analysis, audio signal testing, electronics repairs, and more.

• Customizable Features: Allows you to modify and upgrade components to enhance performance or add additional functionality for more advanced projects.

• Durable Construction: Made from high-quality materials designed to withstand regular use, ensuring long-lasting durability.

• Soldering Skills Practice: Ideal for those looking to practice their soldering skills while learning about circuit assembly and testing.


Benefits:

• Learn by Doing: This DIY kit offers the perfect balance of theoretical knowledge and hands-on practice, ensuring that you not only understand oscilloscope functionality but also how to build and repair circuits.

• Affordable and Practical Learning Tool: Instead of purchasing an expensive commercial oscilloscope, this kit allows you to learn and build one at a fraction of the cost.

• Develop Key Electronics Skills: Enhance your understanding of signal measurements, waveform analysis, and electronic components, which are critical in both professional and personal projects.

• Build a Functional Tool: By the end of the project, you will have a fully operational oscilloscope that can be used for testing and analyzing electrical signals, giving you a valuable tool for future experiments and DIY electronics projects.

• Confidence in Electronics Design: With this kit, you will not only learn how to use an oscilloscope, but you’ll also gain insight into how different electronic components interact in a circuit, helping you to design and troubleshoot circuits with greater ease.

• Expand Knowledge Base: This kit can be used to support learning in various fields, such as electronics engineering, mechatronics, robotics, and other technical disciplines.

• Improve Soldering Skills: Soldering is a critical skill in the electronics industry. This DIY kit allows you to practice and master soldering techniques in a hands-on, real-world project.


Why Choose This Product?

If you are interested in learning electronics, whether as a hobbyist or student, the Oscilloscope Electronic Teaching and Training DIY Kit is an invaluable resource. Unlike standard electronic kits, this product goes a step further by allowing you to construct your very own oscilloscope, turning the theoretical aspects of circuit analysis into practical application.

What sets this kit apart is its ability to offer hands-on experience while also being an affordable and customizable learning tool. As you assemble the oscilloscope, you’ll gain a deeper understanding of both the device’s workings and the broader concepts of signal analysis, measurement, and waveform interpretation.

This product is perfect for anyone looking to expand their knowledge of electrical engineering in a fun, engaging, and educational way. It’s suitable for a wide range of users, from students looking to improve their understanding of electronics, to hobbyists building their own gadgets, to professionals seeking a quick and customizable testing tool for projects.
