Product information:

Specifications:DJI O3 Air Unit

Note：Non-DJI brand products,Applicable to DJl Goggles 2、DJI FPV models.

Overview：

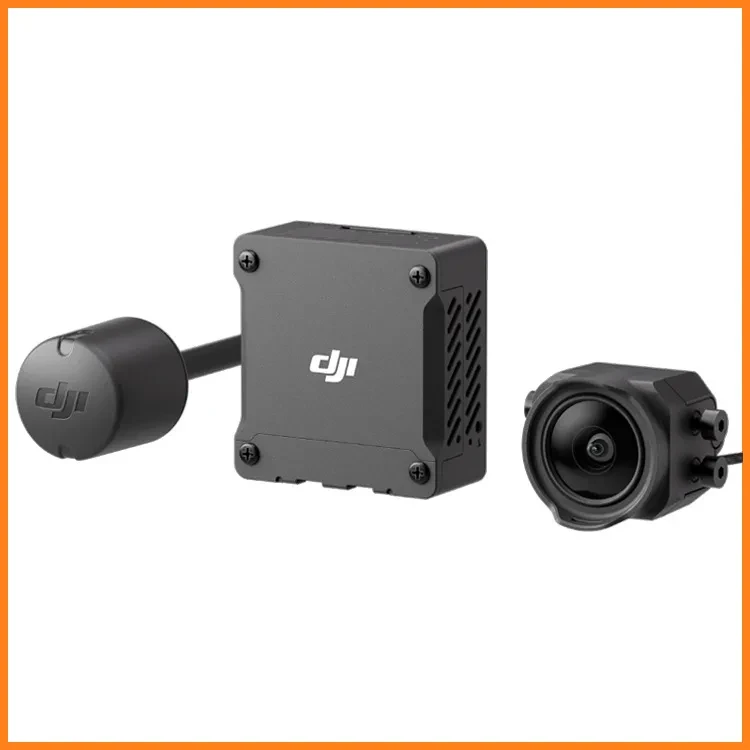

Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features excellent video transmission quality with high definition, low latency, and at long distances. It comes with a 1/1.7-inch sensor, a 155° super-wide FOV, and rich compatibility, providing a powerful video transmission solution for your assembled aircraft.
DJI O3+ Flagship Transmission：
Transform your video transmission experience. It supports a max video transmission quality of 1080p/100fps from up to 10 km. [1]
Next-Level Imaging Performance：
Equipped with a 1/1.7-inch sensor, the DJI O3 Air Unit can shoot 4K/60fps video [3] with a 155° [2] super-wide FOV, giving you richer image details. It also comes with 20GB built-in storage. D-Cinelike color mode allows you to make detailed color adjustments to your shots. The camera module can be used with the DJI Avata ND Filters Set (ND8/16/32). [4]
Canvas Mode：
Canvas Mode lets you customize the OSD information on the screens of DJI Goggles 2 or DJI FPV Goggles V2, and adjust PID parameters.

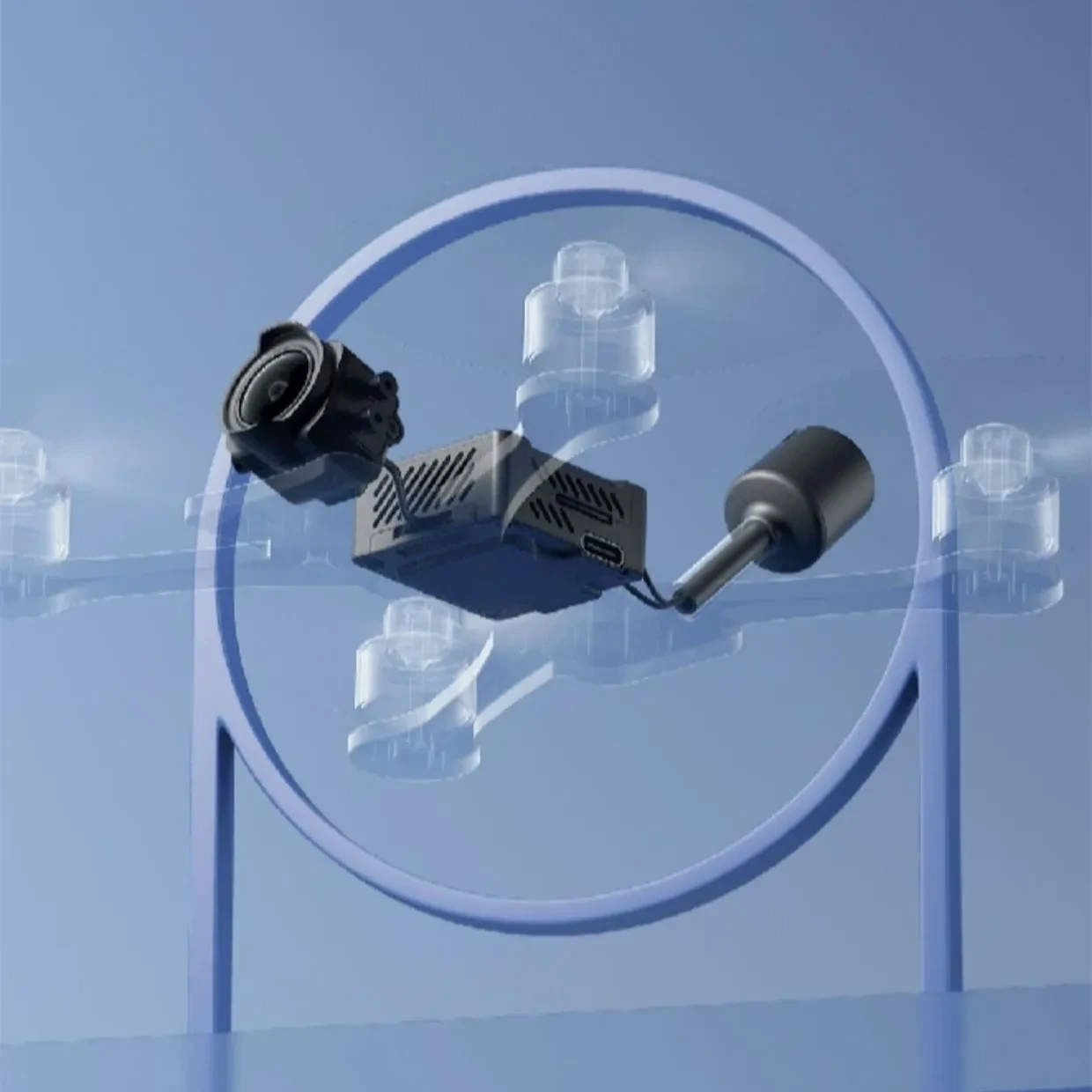

Compact and Richly Compatible：
Packed with richer compatibility in a lightweight body. DJI Goggles 2 and DJI FPV Remote Controller 2 are also smaller in size.

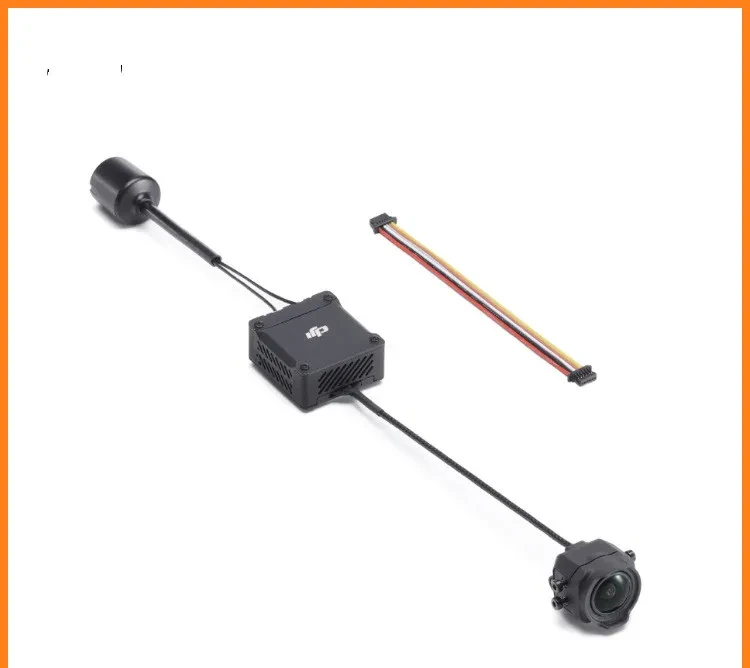

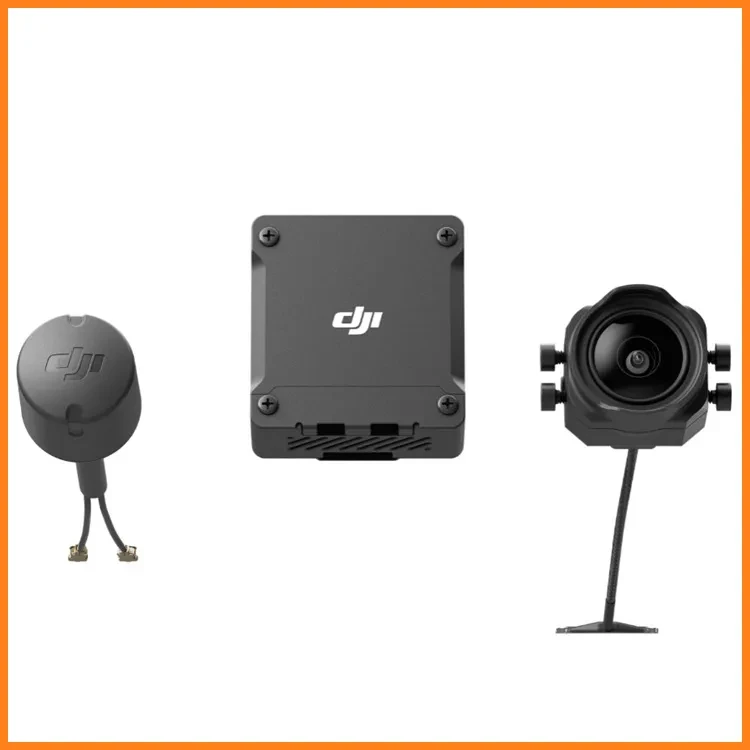

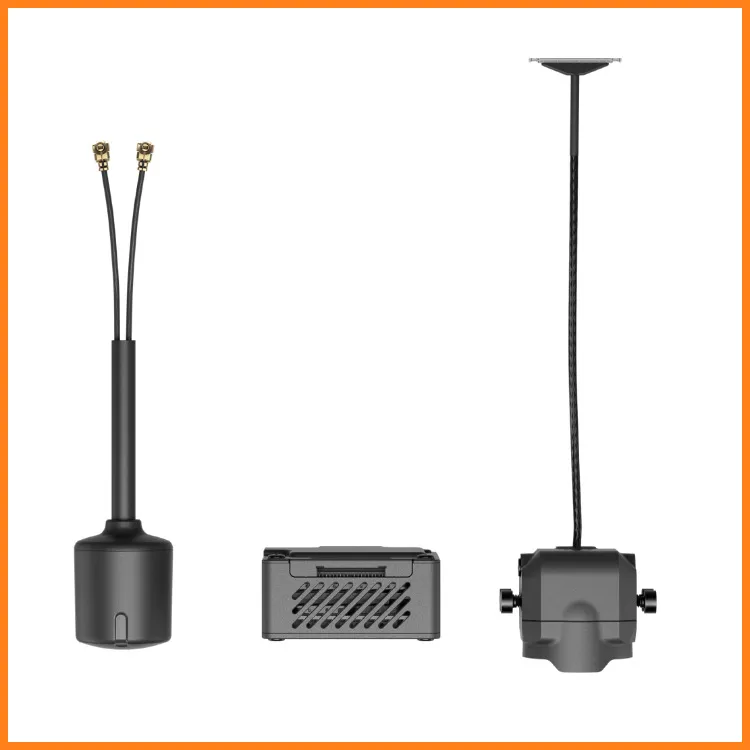

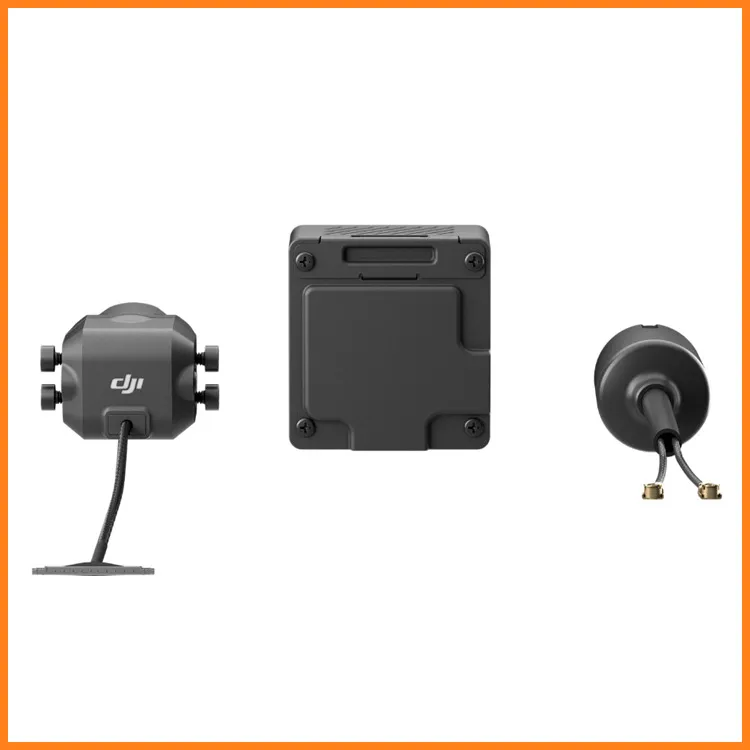

Packing list:

DJI 03 Air Unit Camera Module X1
DJI 03 Air Unit image transmission module X1
DJI 03 Air Unit antenna X1
DJIO3 Air Unit 3-in-1 connector X1

DJI O3 Air Unit Camera: Elevate Your FPV Drone Experience with 4K Clarity and 155° FOV

Introduction

The DJI O3 Air Unit Camera is a cutting-edge FPV (First-Person View) system designed to deliver unparalleled video quality and immersive flight experiences. Whether you're a professional drone pilot or an enthusiast, this compact and lightweight unit offers exceptional performance, making it a game-changer in the world of FPV drones.DroneXL.co

Key Features

1. 4K Video Recording at 60fps

Capture stunning ultra-high-definition footage with the O3 Air Unit's 1/1.7-inch CMOS sensor. It supports 4K video recording at 60 frames per second, ensuring smooth and detailed visuals for your aerial adventures.DJI Official+7DroneXL.co+7DJI Official+7

2. 155° Super-Wide Field of View

Experience a broader perspective with the O3 Air Unit's 155° super-wide field of view. This expansive lens allows you to capture more of the environment, enhancing the immersive experience during flights.DroneXL.co+1PetaPixel+1

3. Low-Latency Video Transmission

The O3 Air Unit utilizes DJI's O3+ video transmission technology, providing a live 1080p feed at 100fps with a latency as low as 30 milliseconds. This ensures real-time responsiveness, crucial for precise control and maneuvering during flights.Amazon+9DroneXL.co+9PetaPixel+9

4. Extended Transmission Range

With a maximum video transmission range of up to 10 kilometers (in FCC regions), the O3 Air Unit allows for long-distance flights, giving you the freedom to explore vast areas without losing connection.DJI Official

5. Built-in 20GB Storage

The unit comes equipped with 20GB of internal storage, enabling you to record and store high-quality footage directly on the device. This feature is particularly useful for capturing extended flights without the need for additional storage cards.DJI Store+1DroneXL.co+1

6. Compatibility with DJI Goggles

The O3 Air Unit is compatible with DJI Goggles 2, DJI Goggles Integra, and DJI FPV Goggles V2. This compatibility ensures a seamless and immersive viewing experience, allowing you to see exactly what your drone sees in real-time.No Film School+6DJI Official+6DJI Store+6

7. Customizable On-Screen Display (OSD)

Utilize the Canvas Mode feature to customize the on-screen display, tailoring the information to your preferences. This allows for a personalized flight experience, displaying essential data in a convenient and accessible manner.No Film School+3Newsshooter+3PetaPixel+3

8. Supports ND Filters

The O3 Air Unit supports DJI Avata ND filters, enabling you to adjust exposure settings for optimal image quality in various lighting conditions. This feature is essential for achieving professional-grade footage.DJI Store+2Newsshooter+2DroneXL.co+2

Applications

Professional Cinematography

The O3 Air Unit's high-resolution video recording capabilities make it an excellent choice for capturing cinematic aerial shots. Its wide field of view and low-latency transmission ensure smooth and dynamic footage, ideal for professional film production.

FPV Racing and Freestyle Flying

For FPV racing enthusiasts, the O3 Air Unit offers real-time video feeds with minimal latency, providing pilots with the responsiveness needed for competitive racing. Its lightweight design also contributes to agile and precise control during freestyle maneuvers.

Aerial Surveying and Mapping

The extended transmission range and high-quality video recording make the O3 Air Unit suitable for aerial surveying and mapping applications. Its ability to cover large areas while maintaining a stable connection ensures accurate data collection for various surveying projects.
