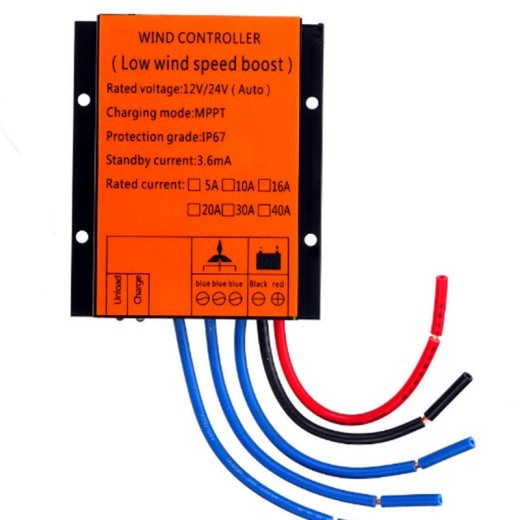

MPPT Wind Turbine Boost Controller – Maximize Wind Energy Efficiency for Sustainable Power

Harness the full potential of wind energy with the MPPT Wind Turbine Boost Controller, designed to optimize the performance of small to medium wind turbines. Utilizing Maximum Power Point Tracking (MPPT) technology, this advanced controller ensures that your wind turbine operates at its highest efficiency, even in fluctuating wind conditions.

Ideal for off-grid systems, remote installations, and sustainable energy projects across New Zealand, the MPPT Boost Controller helps you achieve maximum energy output, efficient battery charging, and system stability in all weather conditions.

Key Features of the MPPT Wind Turbine Boost Controller

1. Advanced MPPT Technology for Maximum Efficiency

• Real-Time Power Optimization: Continuously adjusts the load to ensure the wind turbine operates at its optimal power point.
• Up to 99% Tracking Efficiency: Maximizes energy conversion from wind to electrical power.
• Boost Converter Functionality: Increases the voltage when wind speed is low, ensuring consistent power output.

2. Smart Charging for Battery Protection

• Multi-Stage Battery Charging: Supports bulk, absorption, and float charging stages for enhanced battery health.
• Compatible with Multiple Battery Types: Works with lead-acid, AGM, gel, and lithium-ion batteries.
• Overcharge Protection: Prevents battery damage by automatically regulating the charging process.

3. Wide Voltage and Current Range

• Input Voltage Range: Supports wind turbines with 12V, 24V, 48V, and up to 96V systems (depending on the model).
• High Current Capacity: Handles loads up to 60A for powerful wind energy setups.
• Automatic Voltage Regulation: Ensures stable output regardless of fluctuating wind speeds.

4. Robust Design for Harsh Environments

• Weatherproof & Corrosion-Resistant: Built with IP65-rated housing for outdoor durability in coastal and rugged environments.
• Advanced Heat Dissipation: Integrated cooling fans and heat sinks prevent overheating during continuous operation.
• Surge & Short Circuit Protection: Protects the system from electrical faults and lightning strikes.

5. Intelligent LCD Display & Monitoring

• Real-Time Data Display: Monitors voltage, current, power output, battery status, and wind speed.
• User-Friendly Interface: Simple navigation for adjusting settings and monitoring performance.
• Remote Monitoring (Optional): Connect via RS485, Wi-Fi, or Bluetooth for remote system management.

6. Versatile Application Support

• Hybrid Compatibility: Integrates seamlessly with solar panels in hybrid energy systems.
• Off-Grid & Grid-Tied Ready: Suitable for off-grid cabins, farms, marine setups, and backup power systems.
• Customizable Load Control: Supports DC loads for direct power supply or battery charging.

Benefits of the MPPT Wind Turbine Boost Controller

✔ Maximize Energy Harvest

• Increases energy output by ensuring the turbine operates at the most efficient power point, even in low wind conditions.
• Boost technology compensates for low wind speeds, providing consistent power generation.

✔ Extend Battery Life

• Smart charging algorithms reduce battery stress, improving battery lifespan and performance.
• Overvoltage and under-voltage protection ensure safe, efficient battery charging.

✔ Reliable & Low Maintenance

• Built with durable materials to withstand New Zealand’s diverse climate conditions.
• Requires minimal maintenance thanks to its automated control features and robust design.

Technical Specifications

• Technology: Maximum Power Point Tracking (MPPT)
• Input Voltage: 12V / 24V / 48V / 96V (model-dependent)
• Output Voltage: Adjustable based on battery type
• Current Capacity: Up to 60A
• Tracking Efficiency: ≥ 99%
• Charging Efficiency: ≥ 98%
• Battery Types Supported: Lead-acid, AGM, Gel, Lithium-ion
• Communication Ports: RS485, optional Wi-Fi/Bluetooth
• Protection Features: Overcharge, over-discharge, short-circuit, reverse polarity, surge protection
• Display: LCD screen with real-time monitoring
• Operating Temperature: -20°C to 60°C
• Waterproof Rating: IP65

Eco-Friendly & Cost-Effective Solution

The MPPT Wind Turbine Boost Controller promotes sustainable energy and reduces environmental impact:

• Maximizes Renewable Energy Usage: Converts wind energy more efficiently, reducing reliance on fossil fuels.
• Battery Longevity: Minimizes battery replacements, reducing electronic waste.
• Energy-Efficient Design: Low internal power consumption for optimal energy conservation.

How to Use

1. Connect the Wind Turbine: Securely attach the wind turbine leads to the controller’s input terminals.
2. Battery Connection: Connect the controller’s output to your battery bank, ensuring correct polarity.
3. System Configuration: Use the LCD screen to adjust charging settings based on battery type.
4. Monitoring: Regularly check real-time data such as wind speed, voltage, current, and battery health.
5. Maintenance: Perform occasional visual inspections and clean the device to ensure optimal performance.

Perfect for New Zealand Renewable Energy Enthusiasts

The MPPT Wind Turbine Boost Controller is ideal for:

• Off-Grid Homes: Reliable power generation for remote cabins, farms, and rural properties.
• Marine Applications: Durable enough for boats and coastal installations.
• Hybrid Systems: Seamless integration with solar panels for maximum energy efficiency.
• Backup Power Systems: Provides reliable energy storage for emergency situations.

Why Choose the MPPT Wind Turbine Boost Controller?

1. Maximizes Wind Power Efficiency: MPPT technology ensures optimal energy conversion.
2. Smart Battery Management: Protects and extends battery life with intelligent charging algorithms.
3. Durable & Weatherproof: Built for New Zealand’s harsh weather conditions, from coastal areas to high-altitude installations.
4. Real-Time Monitoring: LCD display and optional remote monitoring for easy system management.
5. Versatile Applications: Suitable for residential, commercial, and off-grid energy systems.

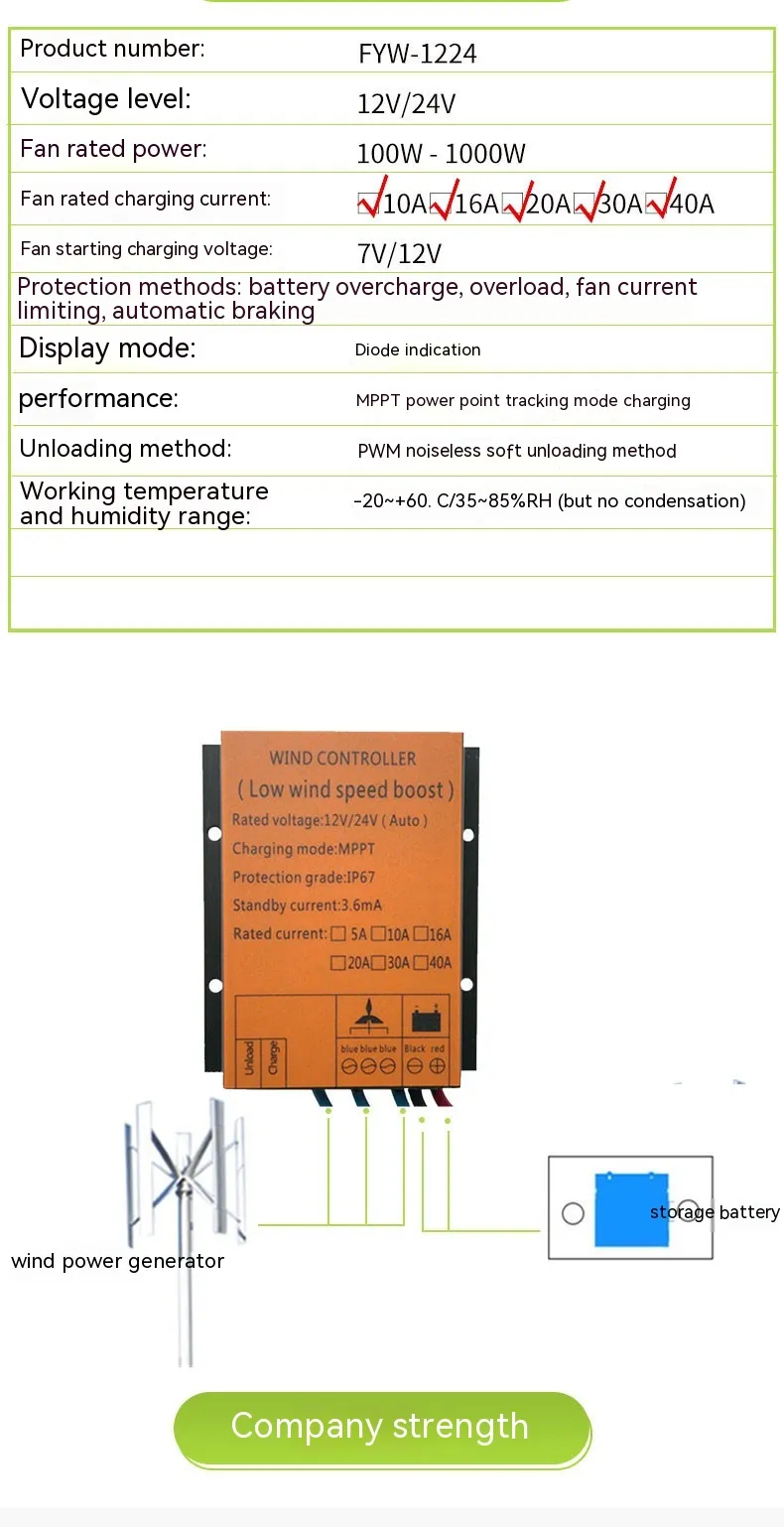

Product information:
Product Model: FYW- 1224
Voltage level: 12V/24V
Rated power of fan: 100W-1000W.
Initial charging voltage of fan: 7V/12V
