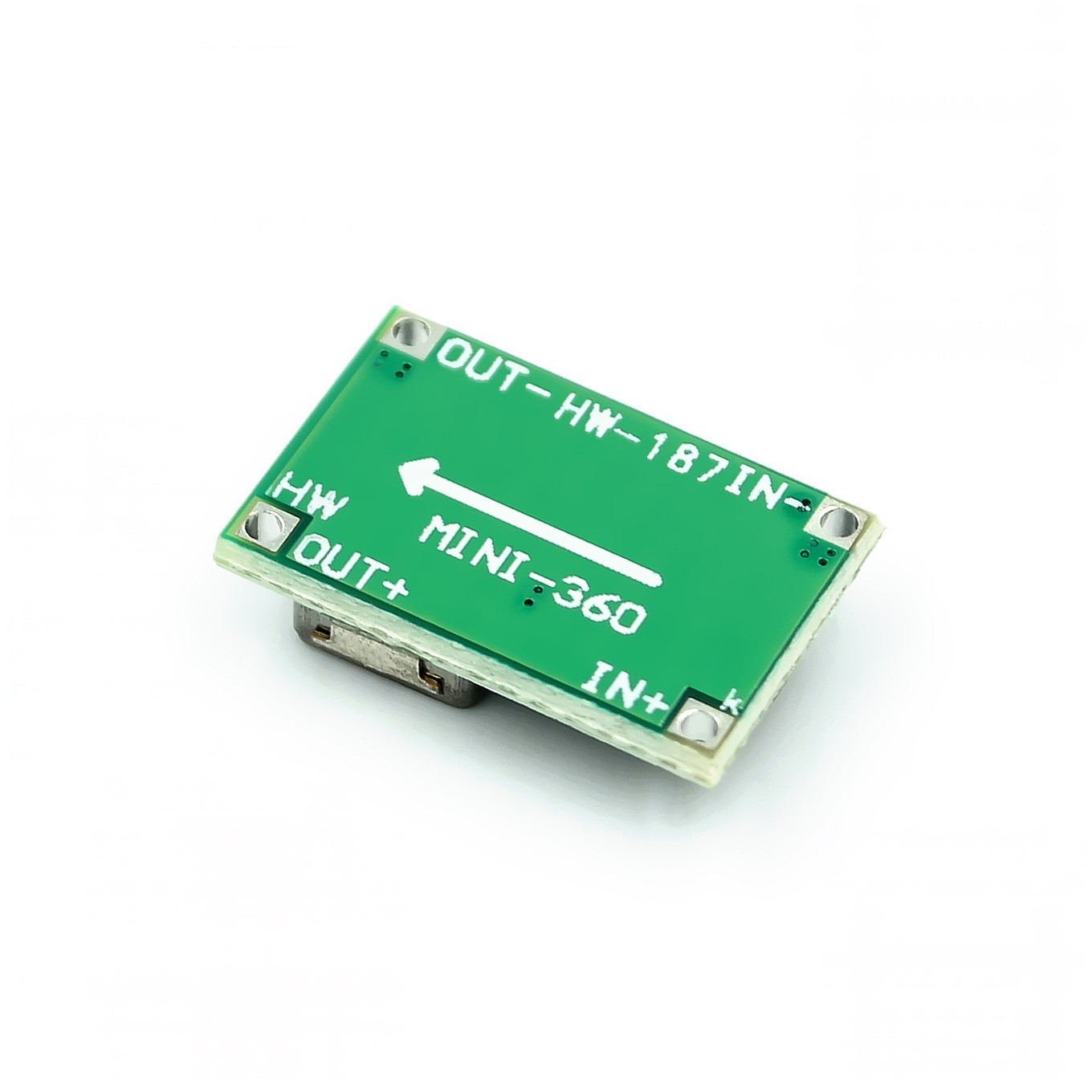

Mini 360 DC Buck Converter – Compact and Efficient Voltage Regulator for NZ Electronics Projects

Versatile Step-Down Power Supply Module for DIY Electronics, Arduino, and More

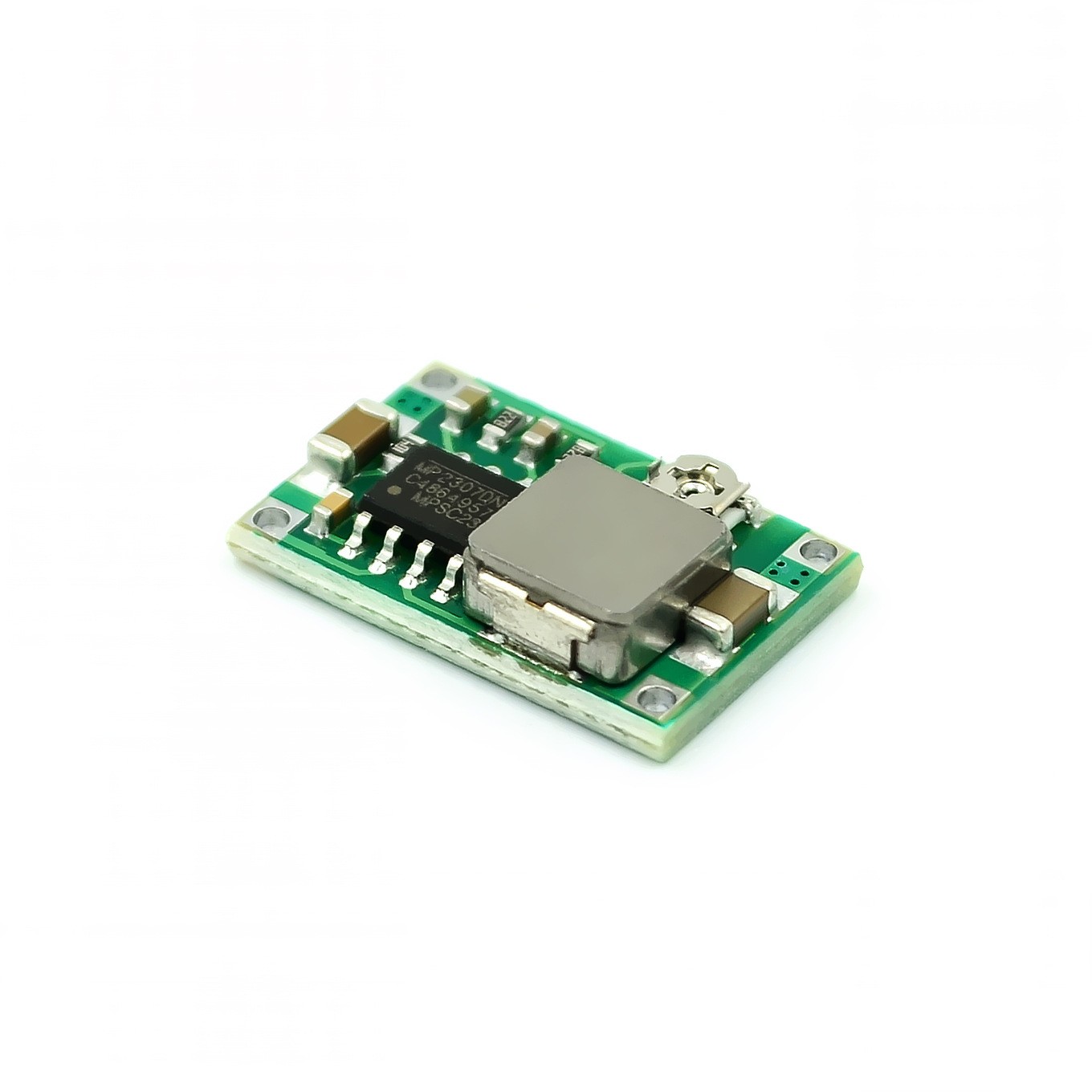

The Mini 360 DC Buck Converter is a compact, high-efficiency step-down voltage regulator designed to power your electronics reliably. Whether you're working on Arduino projects, Raspberry Pi setups, or custom DIY electronics, this versatile module ensures stable voltage conversion in a small package.

With an input range of 4.75V to 23V, this DC-DC buck converter steps down voltage to a stable 5V output (up to 2A of current), making it ideal for projects that require 5V power, such as microcontrollers, sensors, and low-power devices. Thanks to its high efficiency (up to 96%), the Mini 360 minimizes heat generation and power loss, providing smooth operation even in high-demand applications.

Its miniature size allows it to fit into tight spaces, making it a perfect choice for portable devices, small robots, and low-profile projects. Additionally, the built-in protection features such as overcurrent protection, short-circuit protection, and thermal shutdown ensure the safety and longevity of your electronics.

If you're in New Zealand and looking for a reliable, efficient power supply for your electronics, the Mini 360 DC Buck Converter is the perfect solution for your next project.

DescriptionMaterialMetalProduct AttributesOrdinary, ThinPackage Size100*100*20(1mm)Description

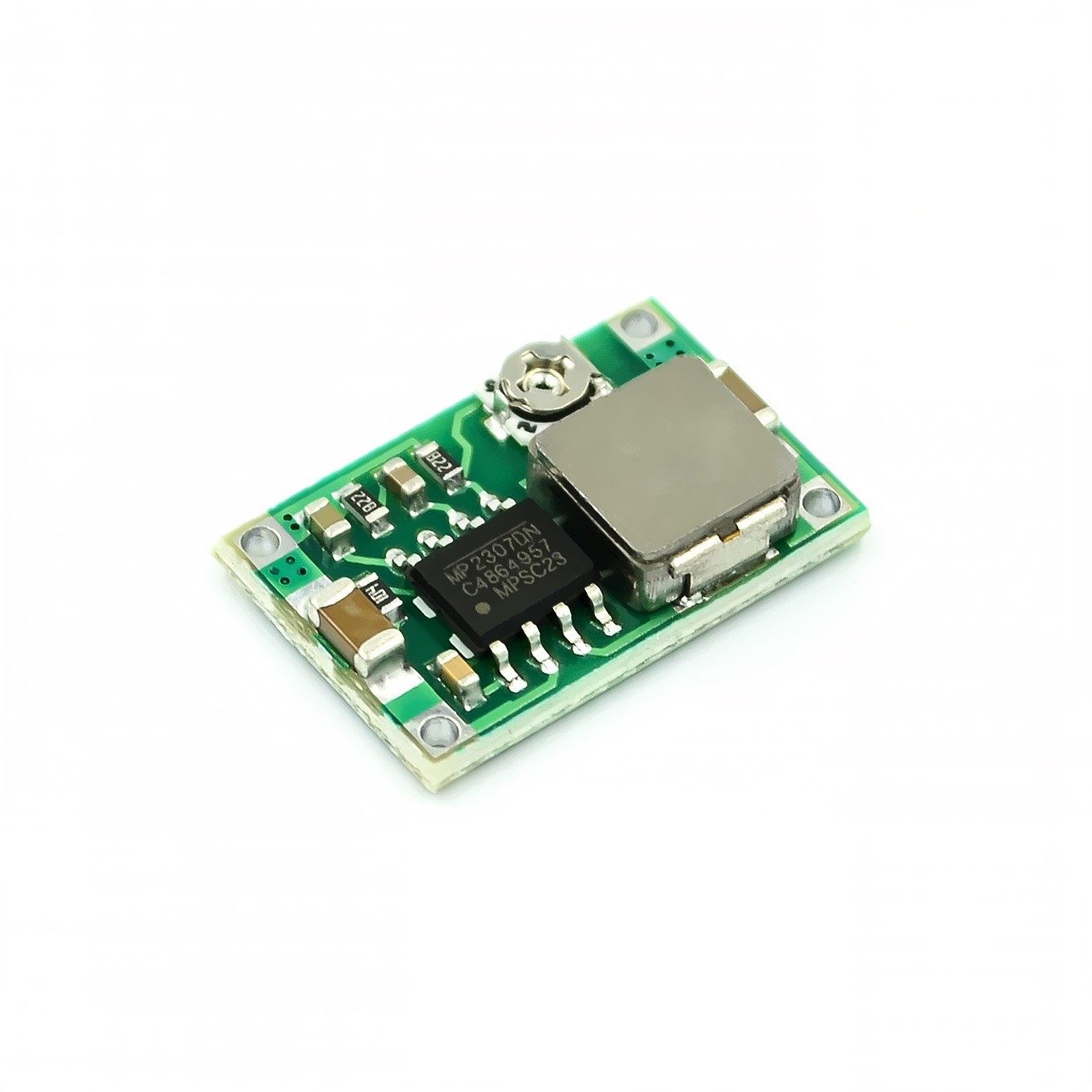

Model Name: Mini-360 (ultra small size DC-DC synchronous rectifier buck module



Module Properties: non-isolated buck



Rectification: synchronous rectification



Input voltage: 4.75V-23V



Output voltage: 1.0V-17V



Output Current: lowering the value of 3A, long 1.8A



Conversion efficiency: 96% (maximum)



Switching Frequency: 340KHz



Output ripple: 30mV (no-load)



Load regulation: ±0.5%



Voltage regulation: ±2.5%



Working temperature: -40 Centigrade to +85 Centigrade

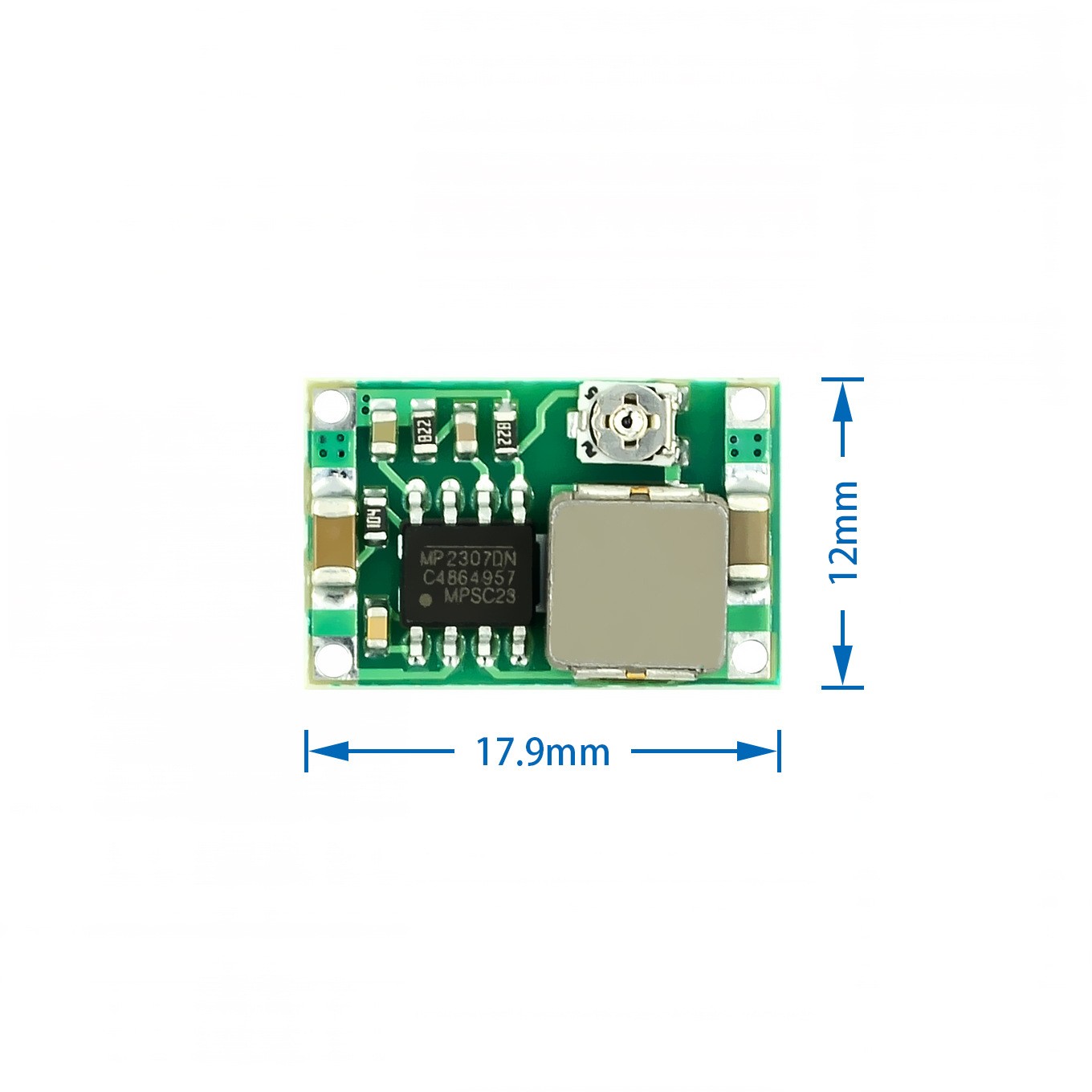

External dimensions: 17 * 11 * 3.8 (L * W * H) (mm)

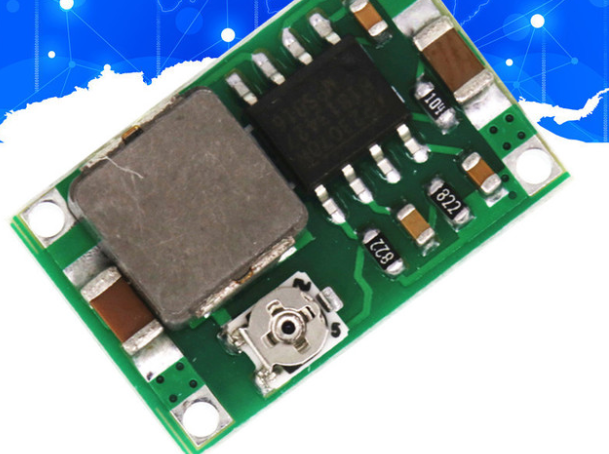

Features: Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.



Package Choose：



1 pcs Mini-360 DC-DC HM Buck Converter Step Down Power Supply Module
