Language: FRENCH, Plug Type: AU Plug, Ships From: CHINA - New! Shelly 2PM Gen3 Smart Switch 2 Channels Wi-Fi Operated Cover roller Control 16 total current automate Adjust Position

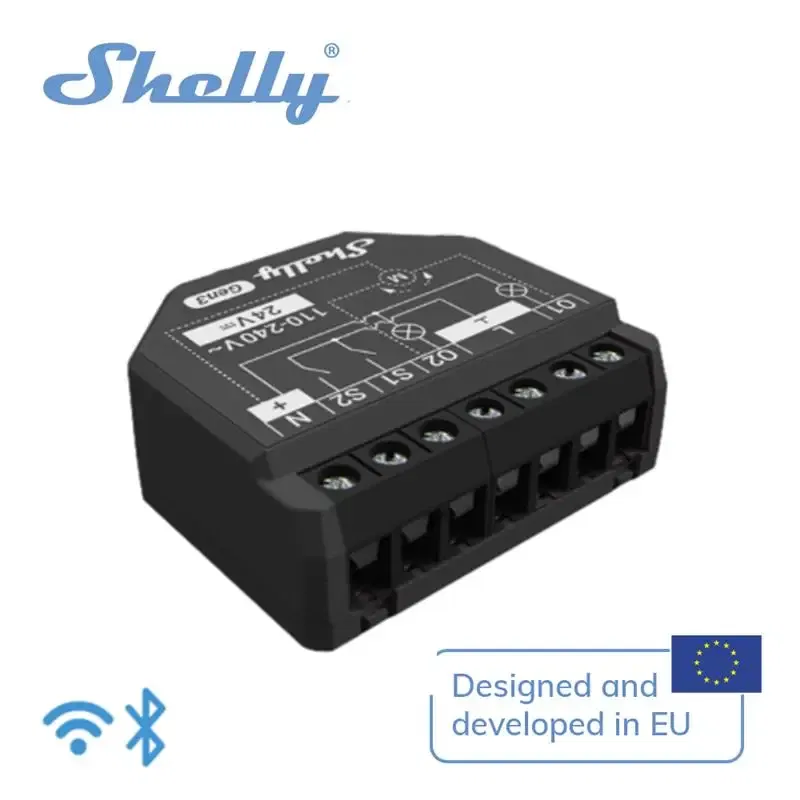

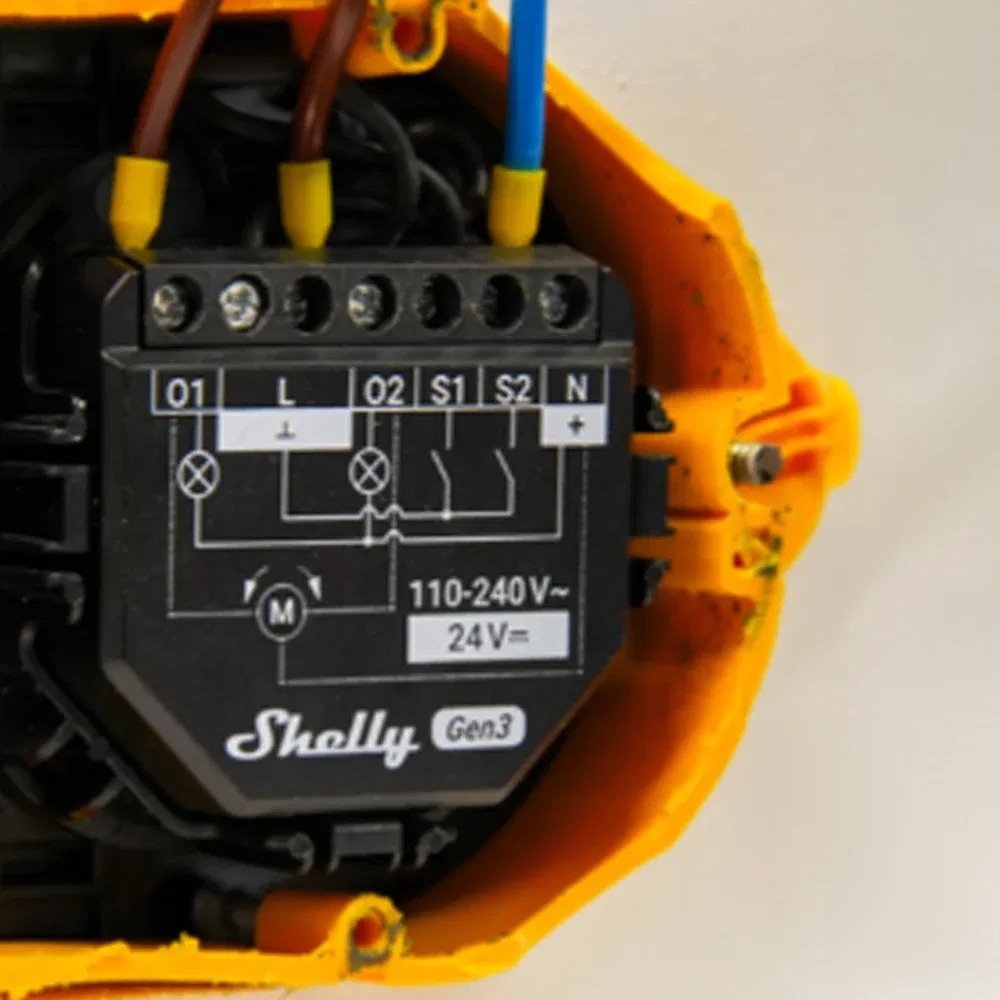

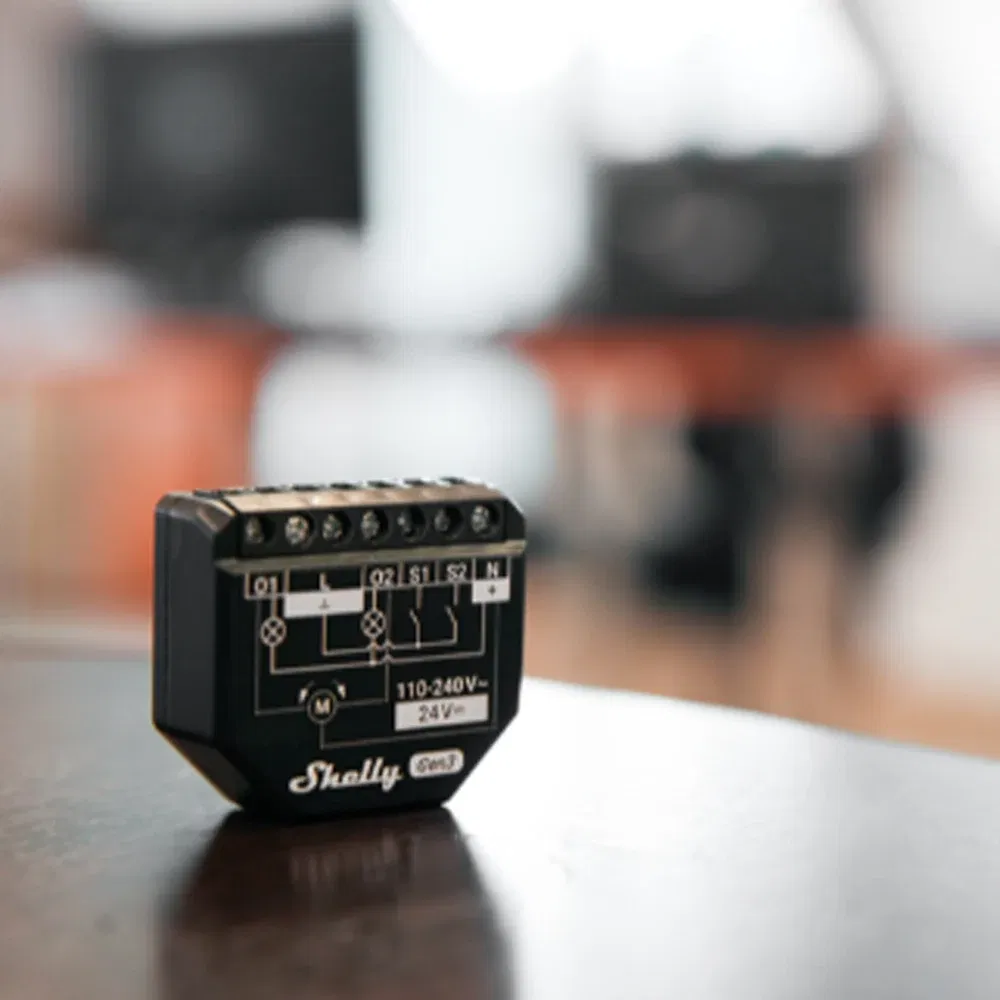

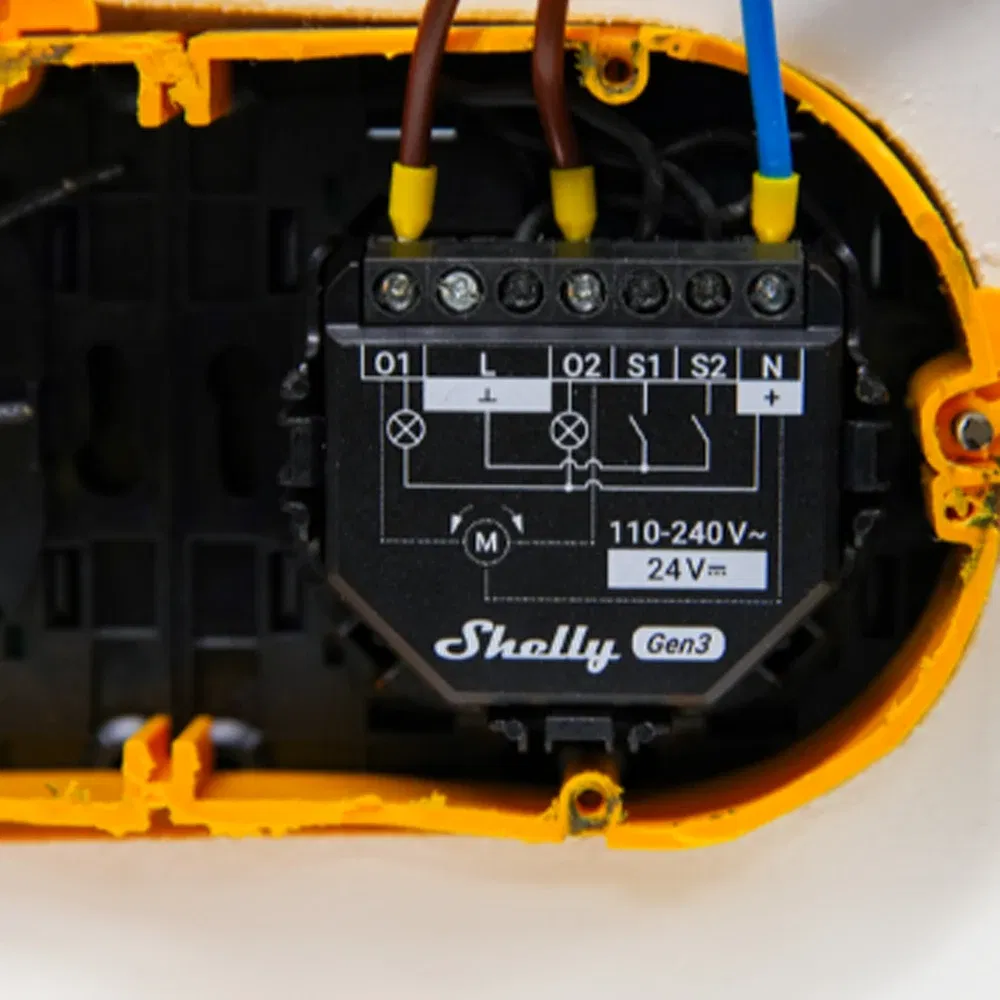

Shelly 2PM Gen3 is a smart switch with dual-channel control, power metering, and cover control. Remotely control and monitor two different electrical circuits, or roller shutters, blinds, and other bi-directional motors from anywhere. Perfect for retrofitting standard electrical wall boxes, power sockets, and light switches, even in spaces with limited room.

Wi-Fi-operated smart switch, 2 channels 16 total current (18 A peak)

2 channels on the same phase

Power metering on each channel

Cover (roller) control - automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors

Slats angle control - use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.

New processor - ESP-Shelly-C38F chip with an increased memory of 8 MB

Improved durability of terminals

Virtual components

Wi-Fi range extender & Bluetooth gateway

Supports scripting webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants.

SupportsKNXnet/IP communication

==========

Hign-concerned Chemical : None

Communication method : Bluetooth-compatible,Wi-Fi

Model Number : Shelly 2PM Gen3

Compatibility : others

Origin : Mainland China

Certification : CE,RoHS

Weight : 30g/1.06 oz

Screw terminals max torque : 0.4 Nm / 3.5 lbin

Conductor cross section : 0.2 to 2.5 mm / 24 to 14 AWG (solid, stranded and bootlace ferrules)

Mounting : Wall console,In-wall box

Shell material : Plastic

Shell color : Black

Ambient working temperature : -20°C to 40°C / -5°F to 105°F

Humidity : 30% to 70% RH

Max. altitude : 2000 m / 6562 ft

Power supply : 110-240 V/ 24 V

Power consumption : <; 1.4 W

External protection : Tripping characteristic B or C,max 16A max rated current,min 6 kA interrupting rating

Max. switching voltage : 240 V,30 V

Max. switching current AC : 10 A per channel,16 A total,18 A total peak

Max. switching current DC : 10 A

Voltmeter (AC) : Yes

Ammeter (AC) : Yes

Internal-temperature sensor : Yes

Protocol : 802.11 b/g/n,4.2

RF band : 2402-2480 MHz,2402-2480 MHz

Max. RF power : <; 20 dBm,<; 4 dBm

CPU : ESP-Shelly-C38F

Flash : 8MB

Schedules : 20

Webhooks (URL actions) : 20 with 5 URLs per hook

Scripting : Yes

MQTT : Yes
