K1 Connector Single-pole Double-core Telephone Connector Network Cable Wiring

Introduction to the K1 Connector Single-Pole Double-Core

The K1 Connector Single-Pole Double-Core is a versatile wiring solution designed to simplify telephone and network cable connections. Known for its efficiency and reliability, this connector is widely used in telecom, data networking, and home wiring projects. Its unique design allows for quick, secure, and tool-free connections of single-pole, double-core wires, making it an essential accessory for New Zealand electricians, technicians, and DIY enthusiasts.

H2: Key Features of the K1 Connector

1. Compact Design

The small and lightweight design ensures the connector can fit into tight spaces, making it ideal for intricate wiring tasks.

2. Single-Pole Double-Core Compatibility

Engineered for connecting single-pole, double-core wires, the K1 connector is perfect for telephone lines, network cables, and low-voltage applications.

3. Gel-Filled Seal

The connector is filled with a moisture-resistant gel, providing excellent insulation and protection against environmental factors like water and dust.

4. Tool-Free Installation

With a simple push-and-crimp mechanism, the connector eliminates the need for soldering or specialized tools, streamlining the installation process.

5. Durable Construction

Made from high-quality plastic and corrosion-resistant metal contacts, the connector ensures long-lasting performance and reliability.

6. Universal Compatibility

The connector is compatible with a wide range of telephone and network cables, including Cat5, Cat5e, and other low-voltage wiring systems.

7. Secure and Reliable Connection

The connector’s internal metal contacts create a firm and secure connection, minimizing the risk of signal loss or interference.

8. Multi-Purpose Use

Suitable for telecom, networking, and other wiring applications, the K1 connector is versatile and easy to use.

H2: Why Choose the K1 Connector?

1. Perfect for New Zealand Wiring Needs

From telecom infrastructure to home networking projects, the K1 connector meets the diverse wiring requirements of New Zealand’s professionals and homeowners.

2. Ease of Installation

The push-and-crimp design allows for quick and efficient connections, saving time and effort during installation.

3. Durable and Reliable

Constructed with high-quality materials, the connector withstands environmental factors and ensures long-term reliability.

4. Improved Cable Organization

The compact and secure design helps organize wiring systems, reducing clutter and improving accessibility.

5. Cost-Effective Solution

By providing a reliable connection without the need for additional tools or materials, the K1 connector offers excellent value for money.

H2: Maintenance and Care Tips for K1 Connectors

1. Keep Clean: Ensure the connectors are free of dirt or debris before use to maintain optimal performance.
2. Inspect Wires: Check wires for damage or corrosion before connecting them to the K1 connector.
3. Store Properly: Keep unused connectors in a dry and dust-free environment to prevent contamination or moisture ingress.
4. Test Connections: After installation, test the wiring for continuity and signal integrity to ensure a successful connection.
5. Use Appropriately: Adhere to the recommended wire gauges and voltage ratings to avoid overloading or damage.

H2: Popular Applications for the K1 Connector

1. Telecom Wiring

Create secure and efficient connections for telephone lines in residential or commercial settings.

2. Network Cable Installation

Use the connector for organizing and connecting Cat5 and Cat5e network cables in data systems.

3. Home Wiring Projects

Simplify home wiring tasks, such as extending telephone lines or creating new network points, with this versatile connector.

4. Industrial Applications

Ideal for use in telecom infrastructure, data centers, and low-voltage industrial systems.

5. DIY Networking

Perfect for hobbyists and DIY enthusiasts setting up home offices, smart home systems, or other wired networks.

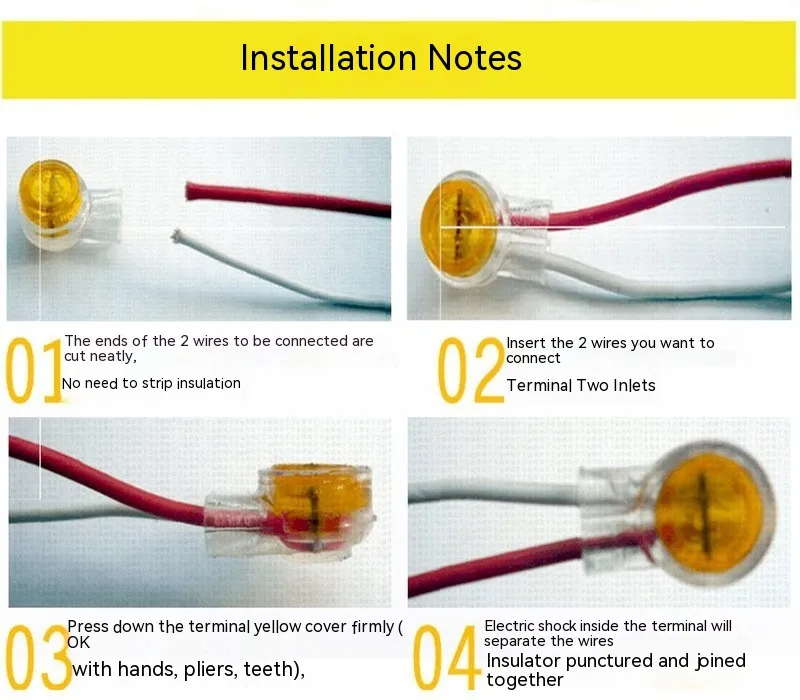

H2: How to Use the K1 Connector

1. Prepare the Wires

• Strip the insulation from the wire ends, ensuring they are clean and undamaged.

2. Insert the Wires

• Place the wires into the connector’s designated slots, ensuring they are fully inserted and aligned.

3. Crimp the Connector

• Using pliers or your fingers, apply pressure to the connector until the internal contacts pierce the wire insulation and secure the connection.

4. Test the Connection

• Check the continuity and signal strength to confirm a successful installation.

5. Secure and Organize

• Use cable ties or clips to organize and secure the connected wires for a neat and tidy installation.

Product information:

Product Name: cable terminal
Model Specification: K1
Contact conductor: pure copper
Product material: high quality PC material
Product Category: Grade A
Product color: transparent
Operating temperature: -40~70°C

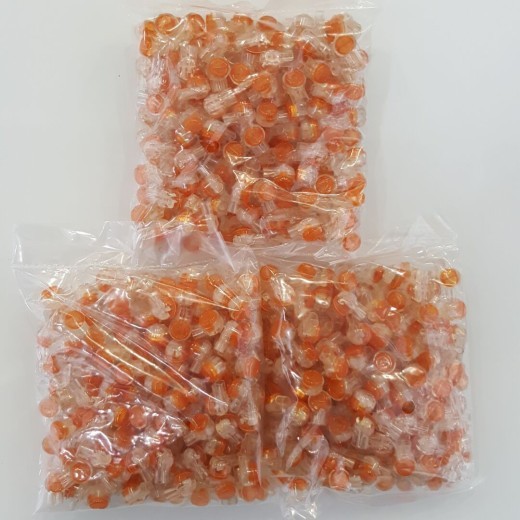

Number of Products: 200/package, actually about 180.
Packing specification: Bags
Suitable wire diameter: 0.4~0.9mm

Features:

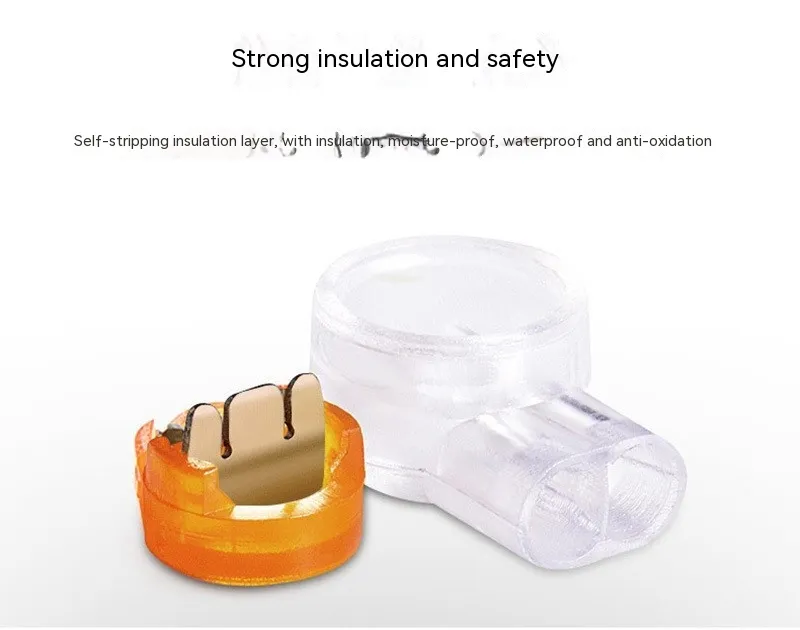

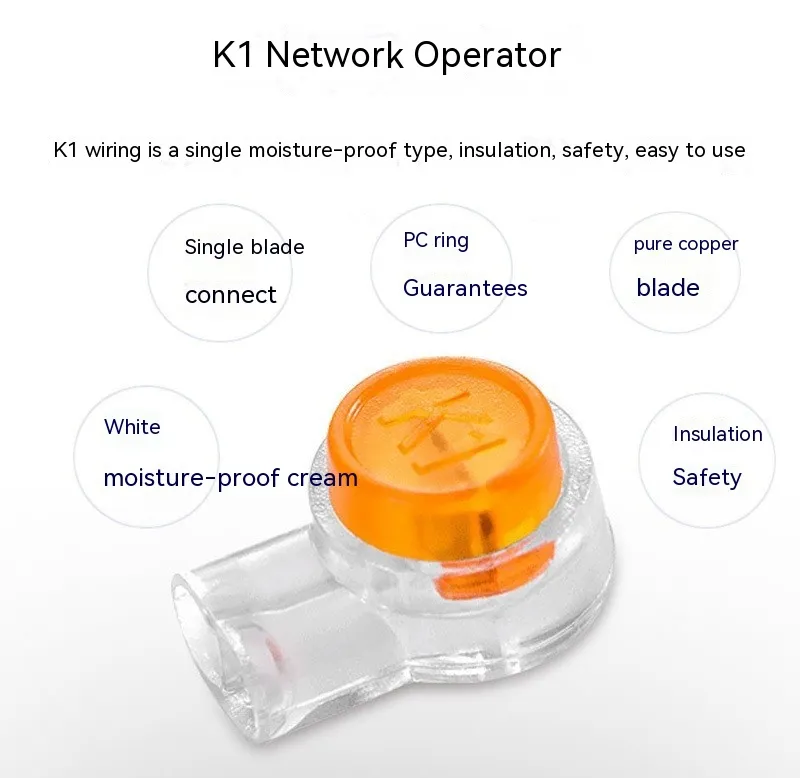

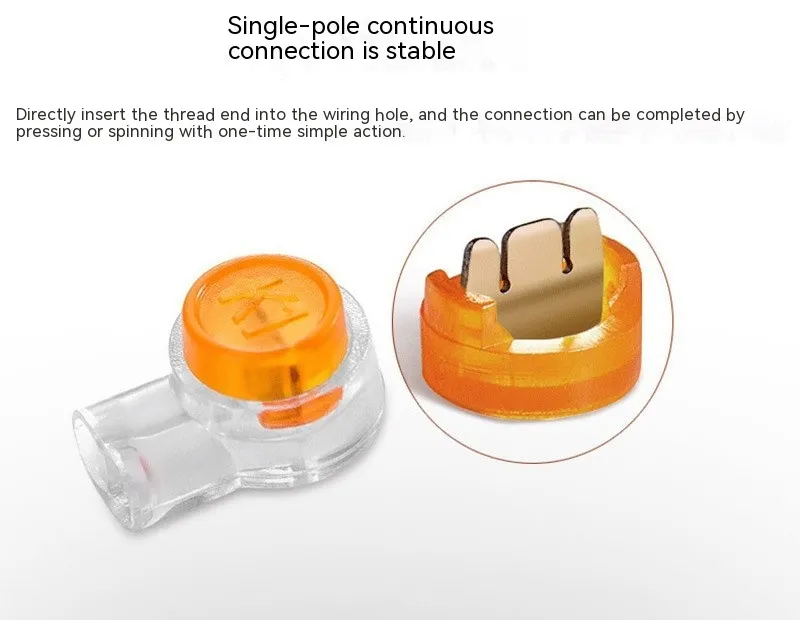

K1 connector is a single moisture-proof type, which is connected by a single knife and used for direct connection of the second line. Applicable wire diameter is 0.4-0.9mm, insulation outer diameter is 2.0mm. Connector is suitable for fast connection of medium and small power lines. It solves the problem of complicated operation of screw crimp-type terminal wiring. When wiring, the wire does not need to remove the insulation layer, directly insert the thread head into the wiring hole of connector, and the connection can be completed by pressing or spinning.
Therefore, the operation is simple and fast.

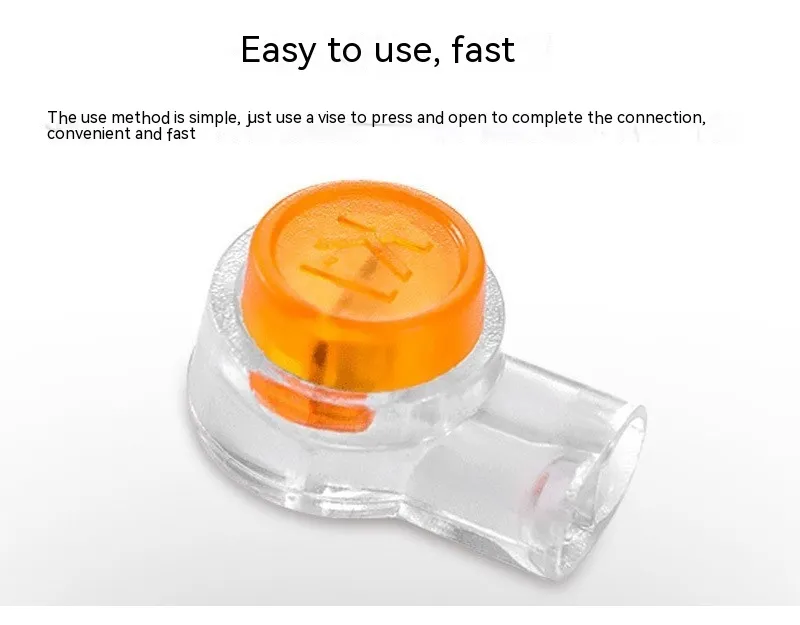

Usage: Insert the thread into the hole and press it with pliers. The line is connected.

Packing list:

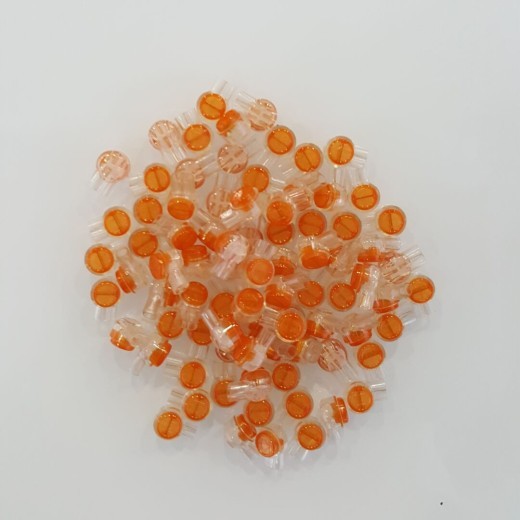

K1 Connector x 180pc
