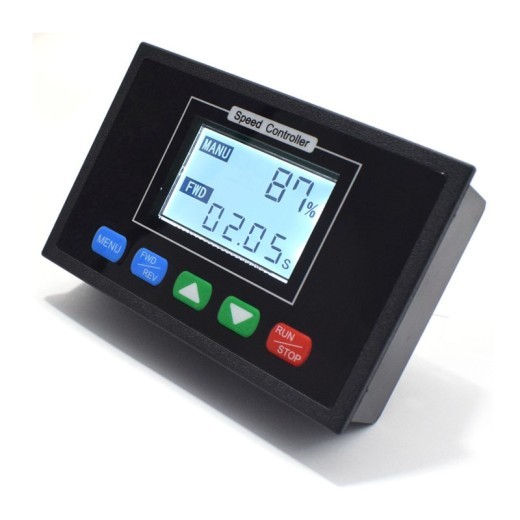

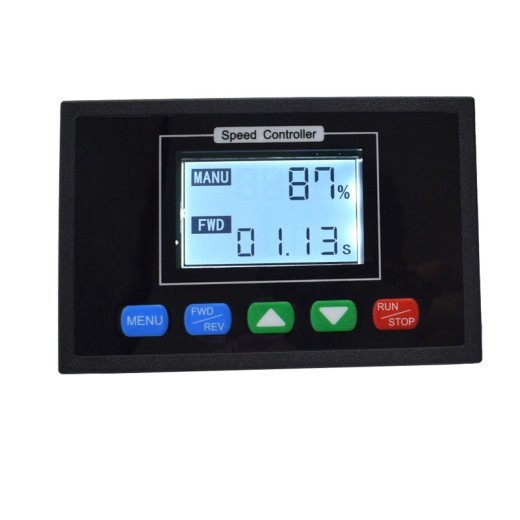

DC motor speed controller

Features

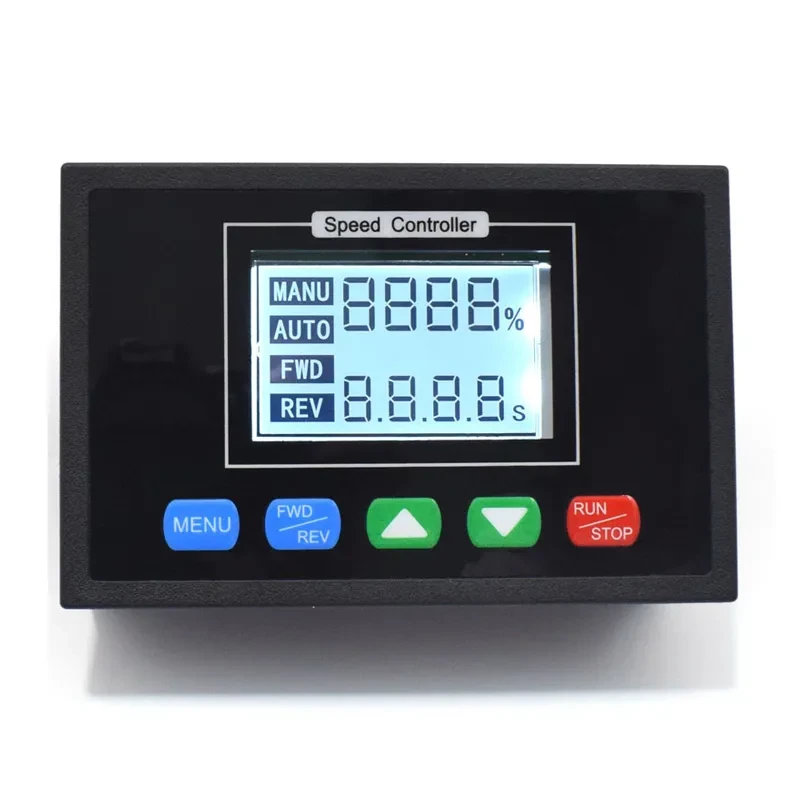

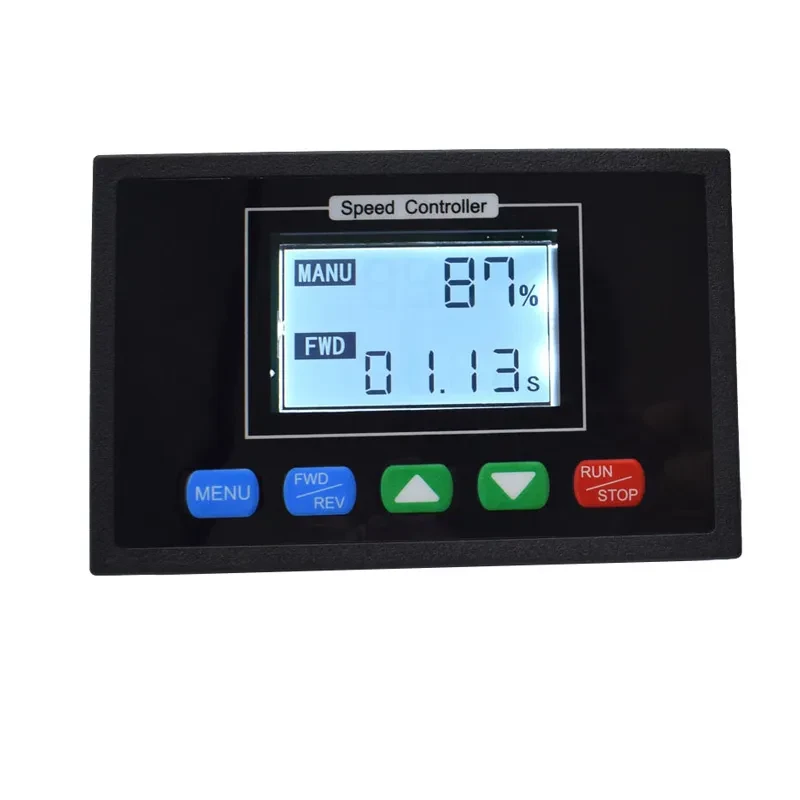

LCD screen with backlight, able to display working time, speed percentage, current mode, forward rotation, reverse state



Slow start and slow stop time can be set, with upper and lower limit setting of speed



Two modes of manual and automatic are optional. The automatic mode is fully automatic forward and reverse within the set time



Touch switch to switch forward and reverse rotation, jog acceleration and deceleration, solve the problem of traditional potentiometers easily broken

The total working time can be set.

Input voltage: DC10-55V
Output voltage: linear under load
Speed regulation type: flow regulation
Slow start and slow stop: Can be set
Speed adjustment range: 0-100%
Control frequency: 15KHZ

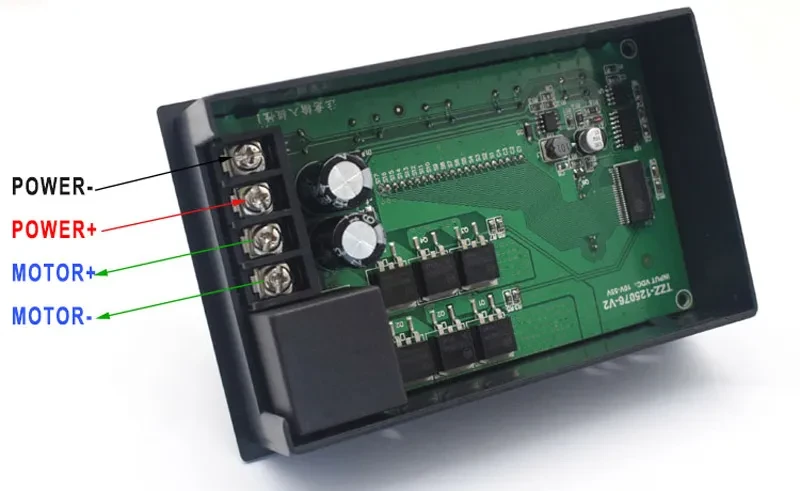

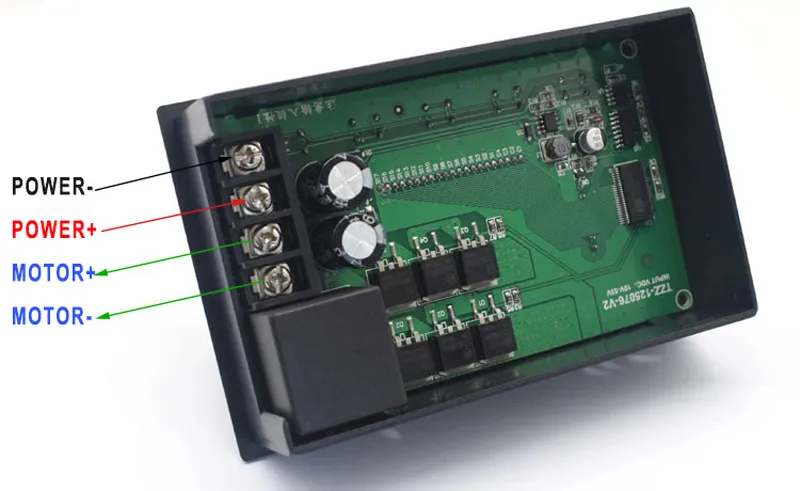

Wiring type: Barrier terminal block
Support motor: brush motor

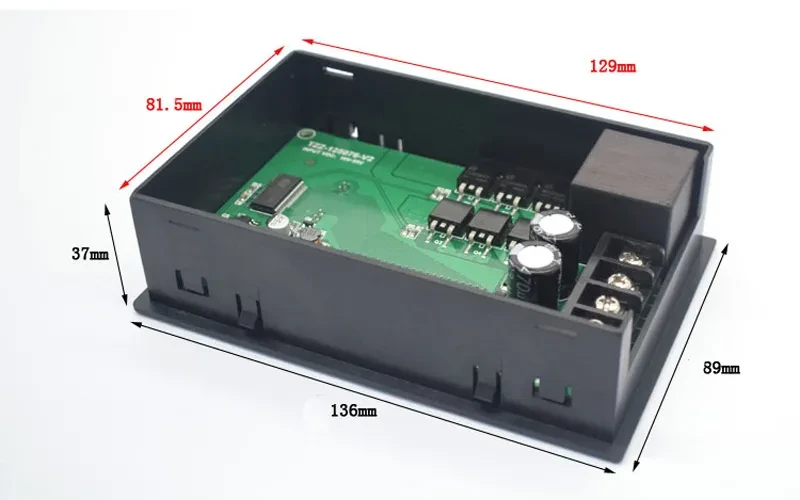

Module size: length * width * height 136mm*89mm*37mm
Panel opening: length * width 129mm * 81.5mm
