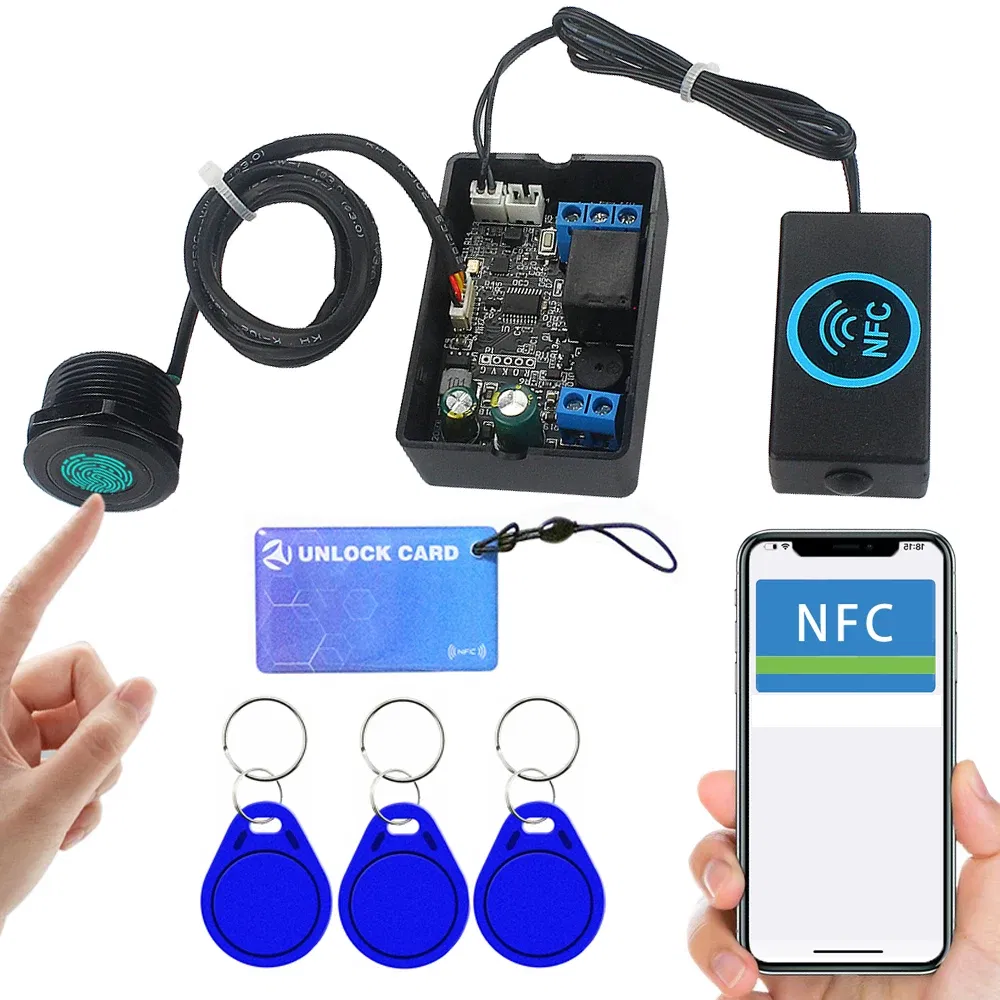

Color: Orange - Mobile phone NFC fingerprint relay control module DC10V-120V IC card induction access controller Switch locomotive car unlock

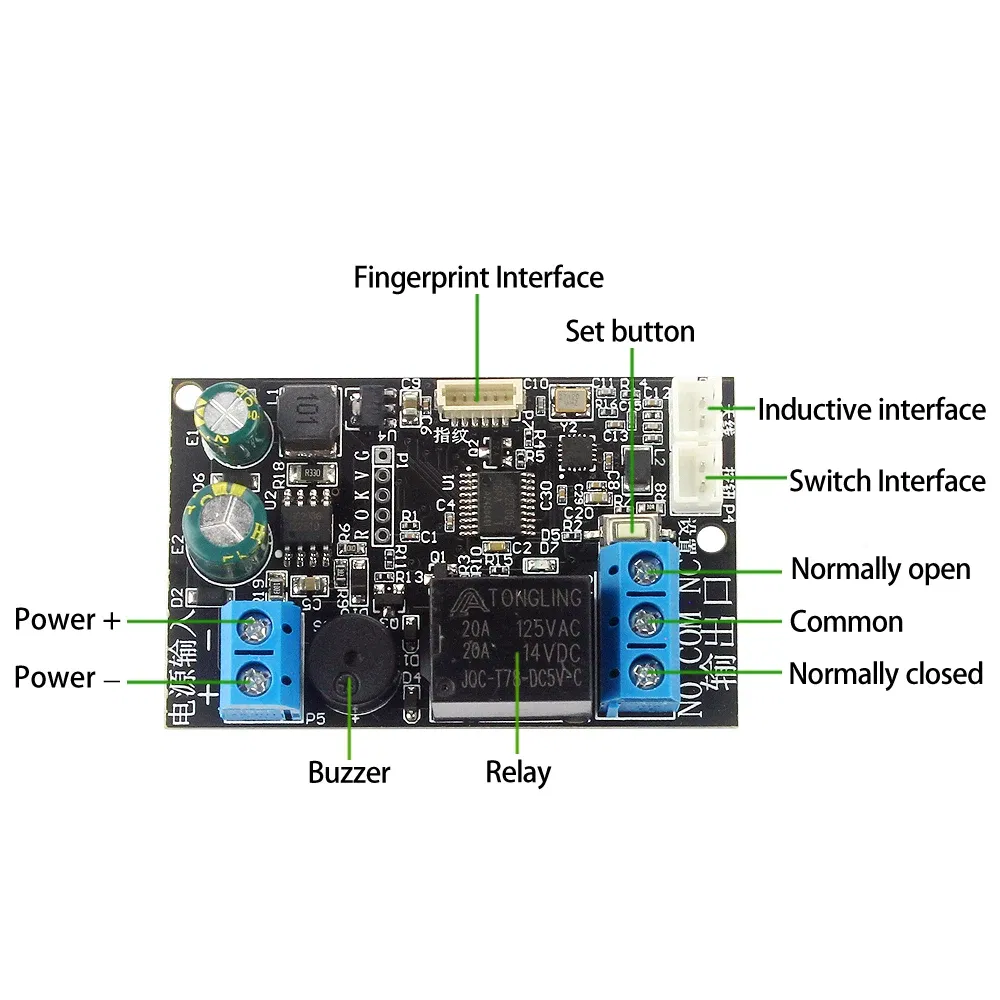

Multi-function fingerprint sensor card relay module, support fingerprint, IC card, mobile phone NFC multiple control modes; meet your various needs; easy installation; suitable for DIY user modification, can be used for door lock control, vehicle modification, electrical control, and other occasions .

Features:

1. Compatible with DC10V-120V voltage range;

2. Three verification methods: fingerprint, IC card, mobile phone NFC

3. Three control modes can be switched: jog mode, self-locking mode, ignition mode;

4. In the jog mode, the output time can be adjusted, and the output can be up to 15 minutes;

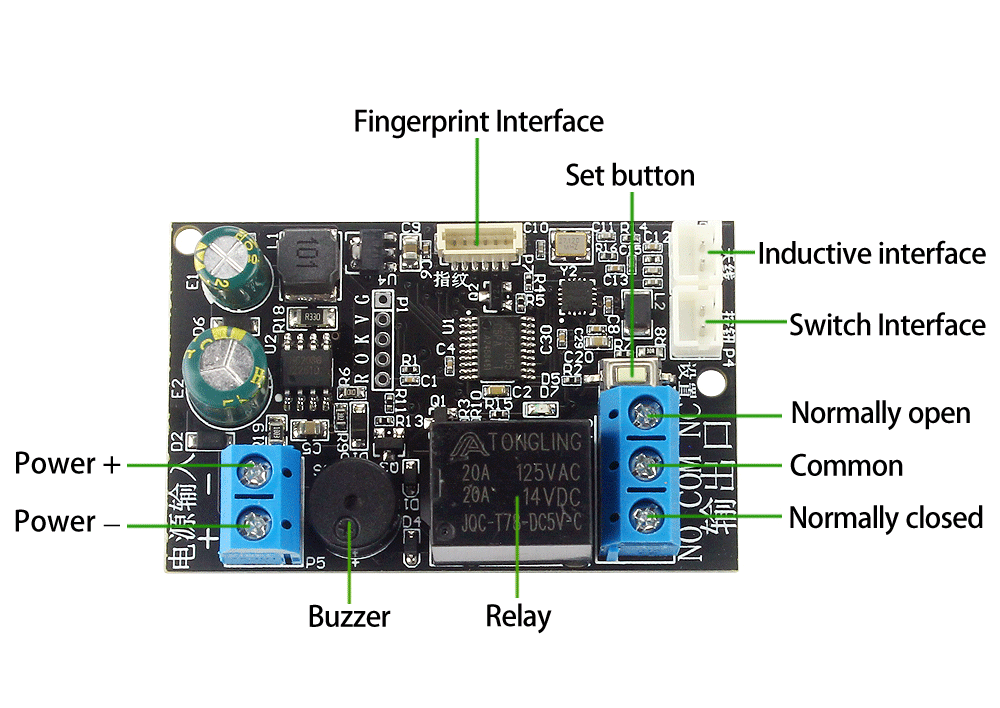

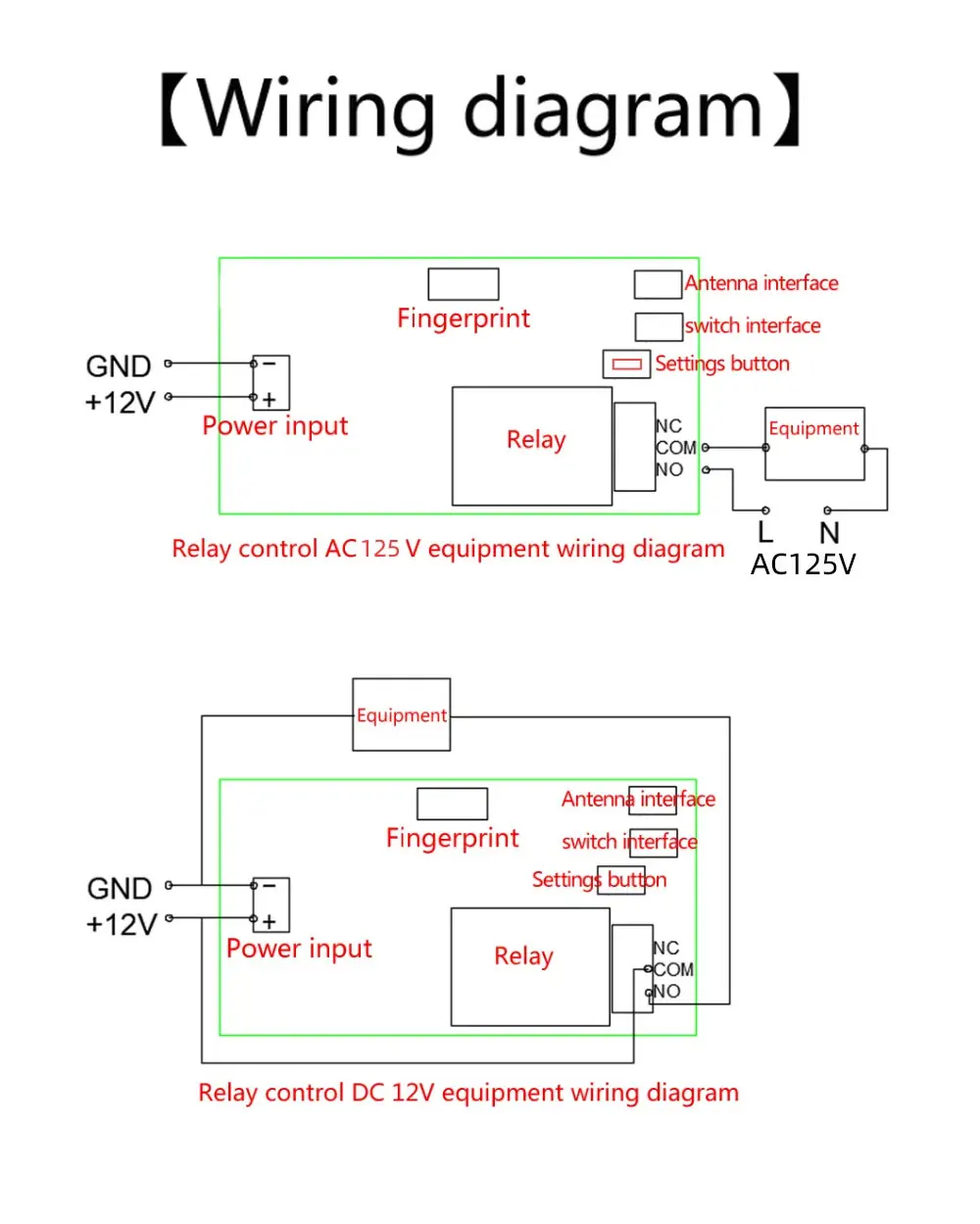

5. With relay normally open and normally closed output control.

6. IC card/NFC sensing distance: ≥25mm

7. can be connected to the exit button

Three control modes:

Inching mode:turn on after fingerprint recognition; automatically turn off after releasing the finger and reaching the set delay time.

Self-locking mode:turn on after recognizing the fingerprint; after releasing the finger, it will be disconnected immediately after re-identifying the fingerprint.

Ignition mode:keep the fingerprint recognition unreleased; it will keep on all the time, and it will disconnect immediately after releasing the finger

Note:The management card and user card have been configured before delivery, and the package can be used directly after receiving the package, and does not need to be configured again.

Note: If you use NFC to unlock, then your mobile phone must support NFC function; and you need to add an Access Control Electronic key to the mobile wallet as an unlock card. NFC programs downloaded in the app market cannot be used for unlocking.

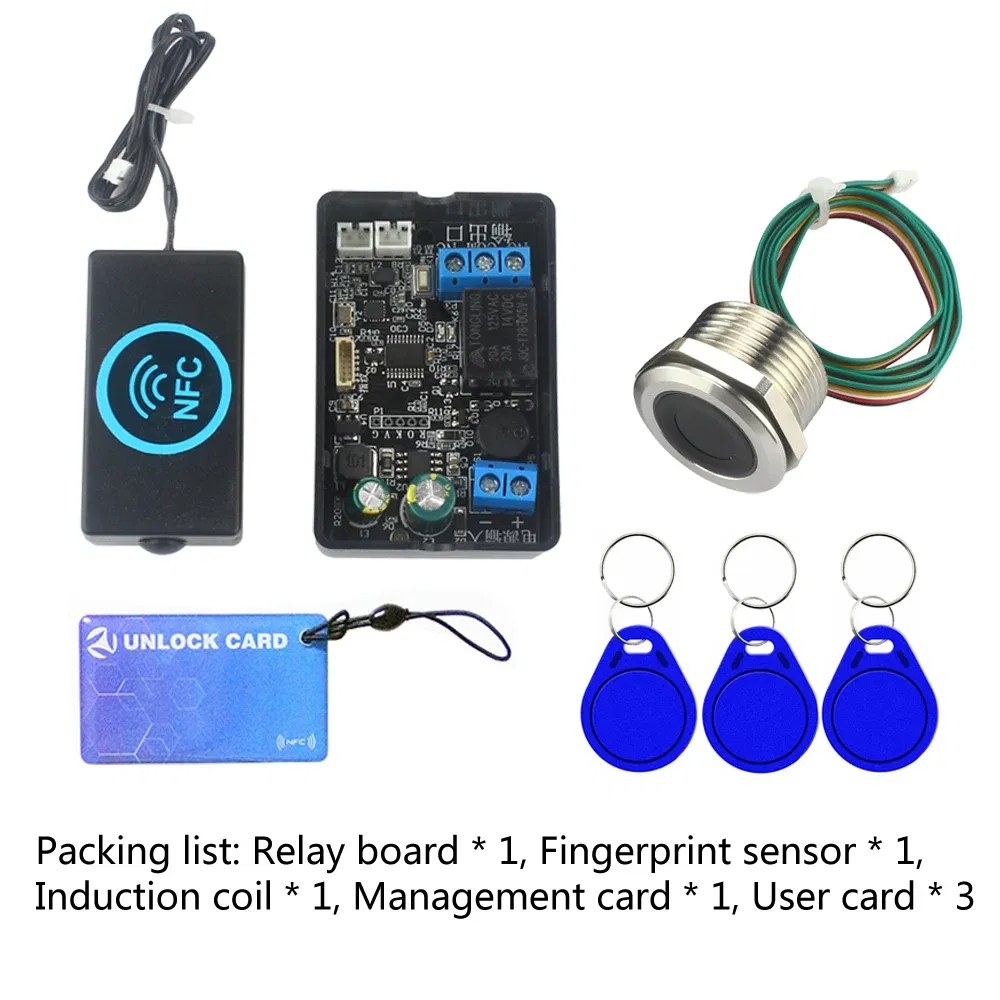

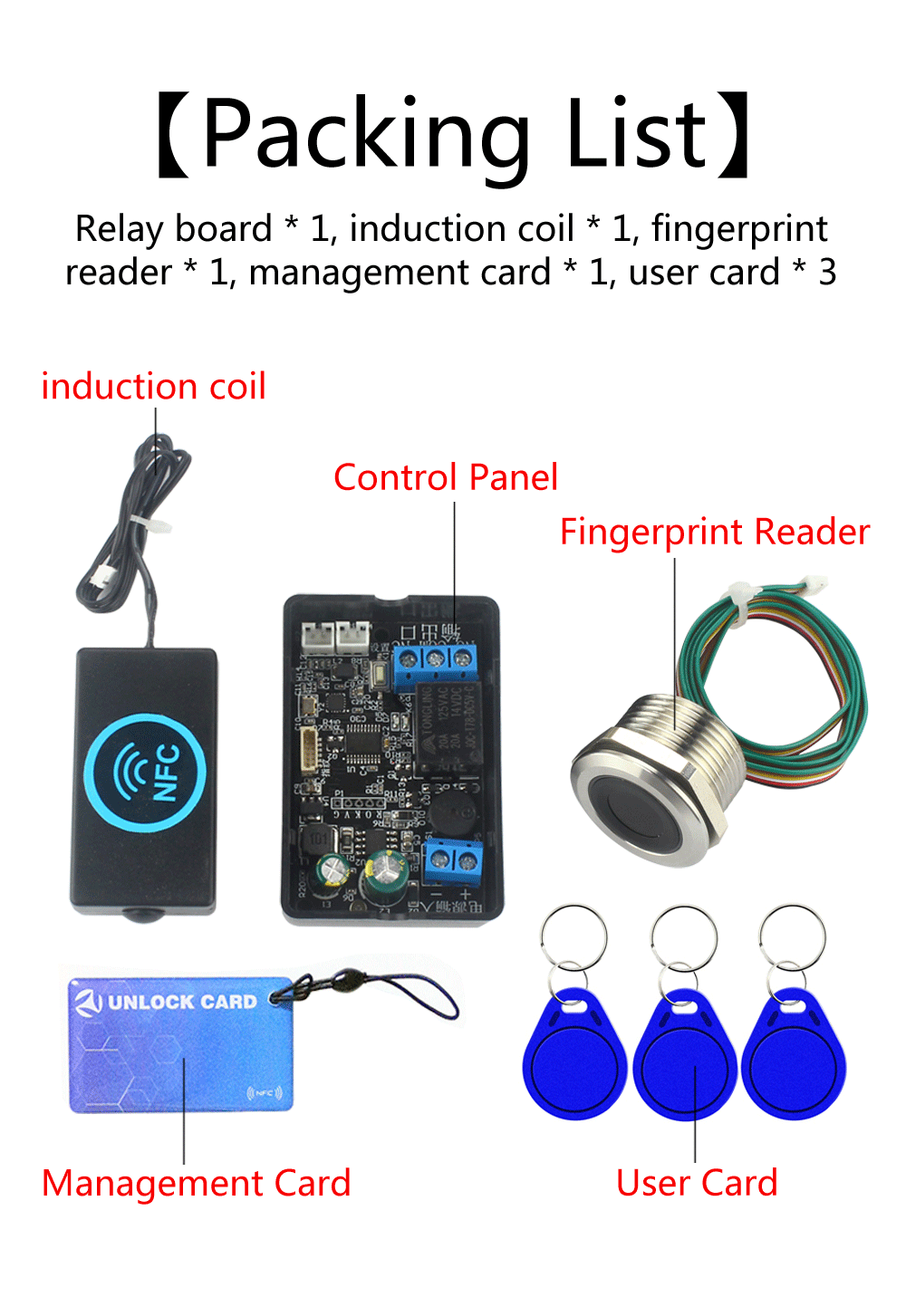

Packing list:

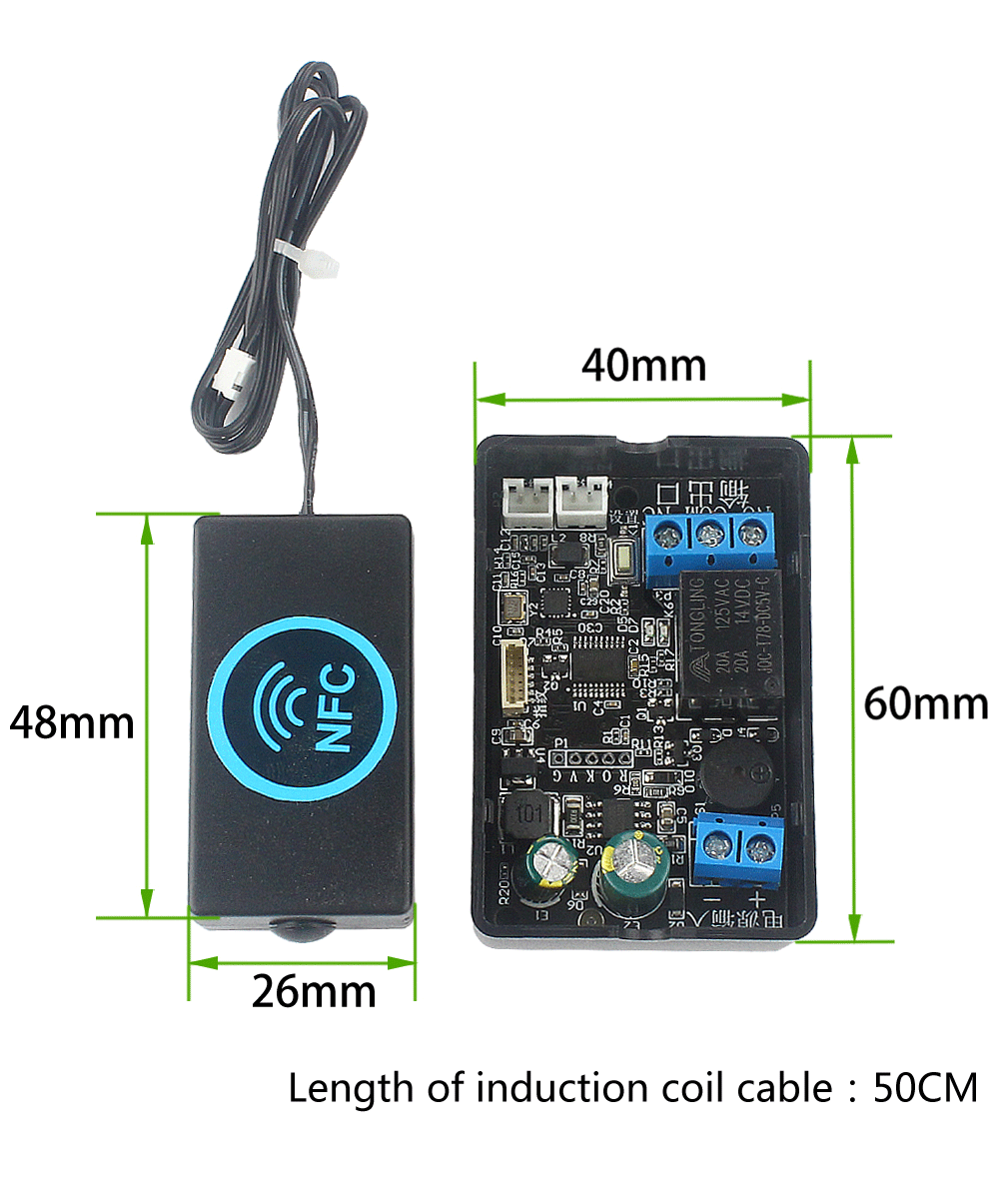

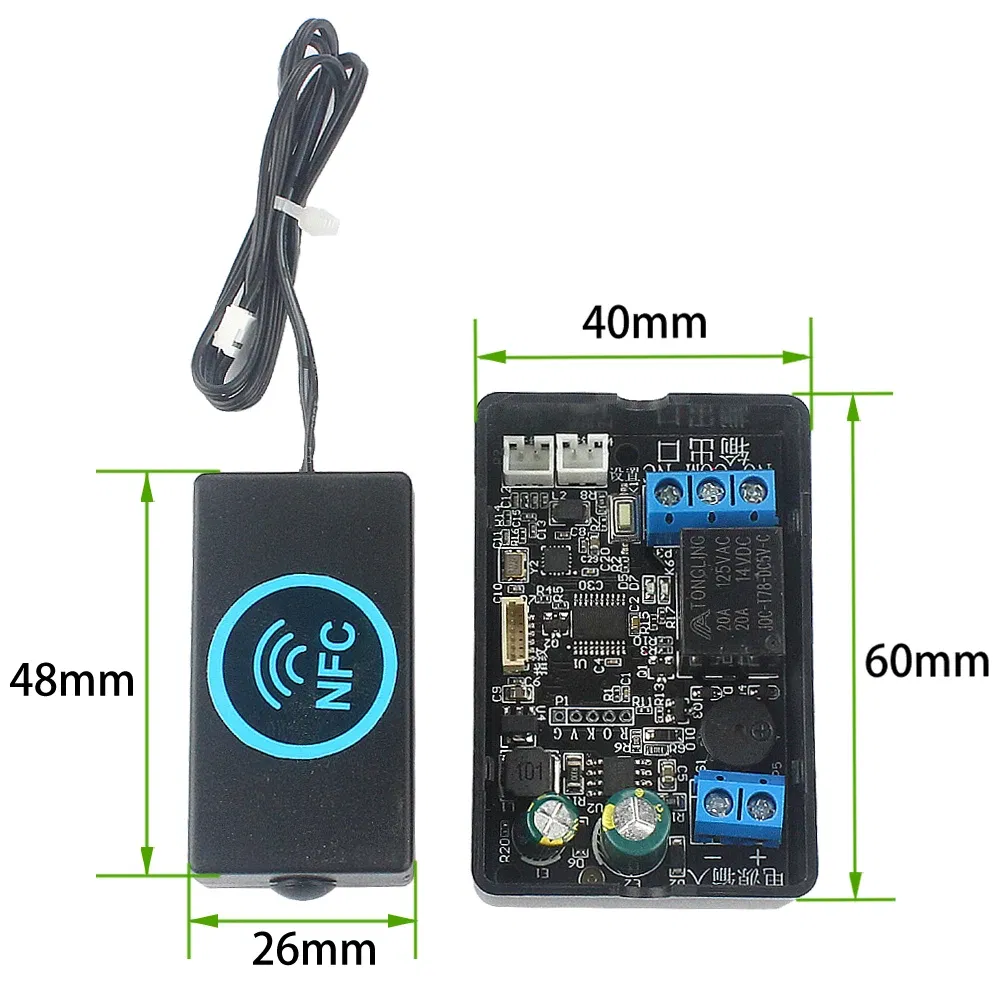

Control board + shell x1, induction antenna x1, management card x1, user card x3

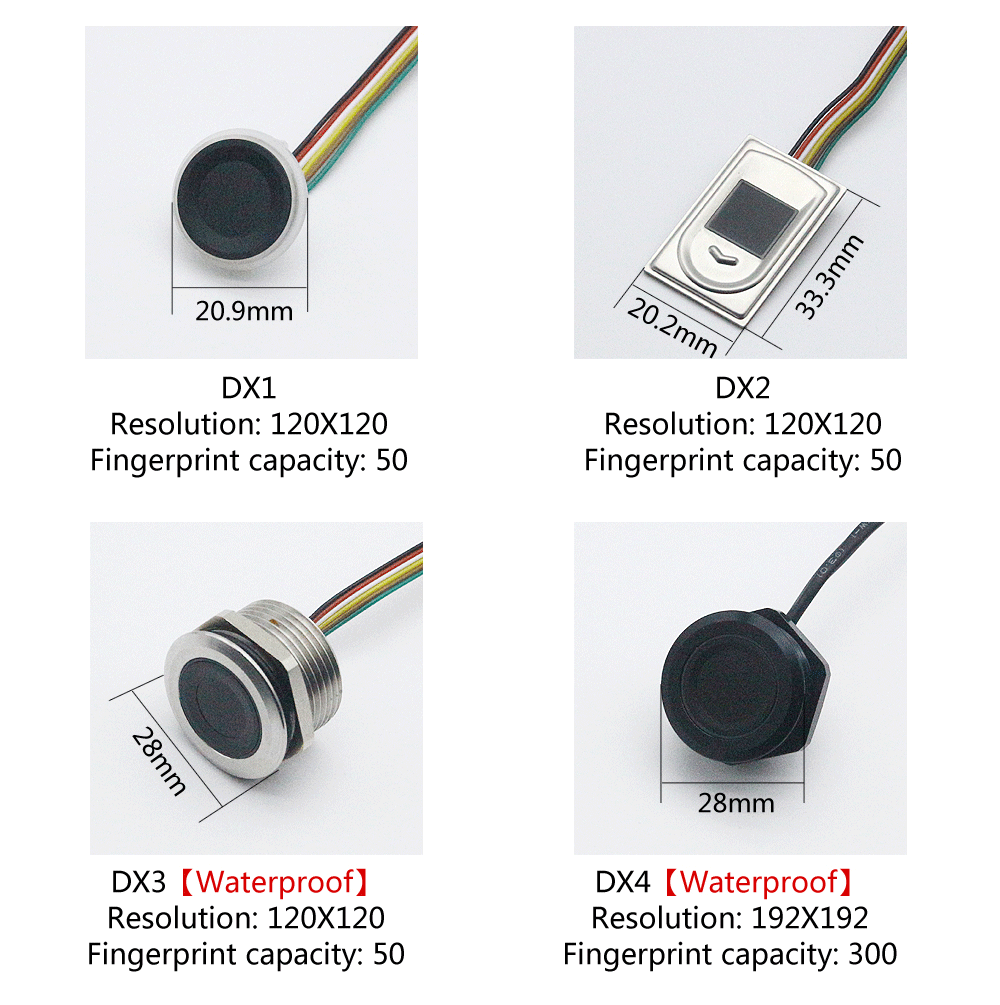

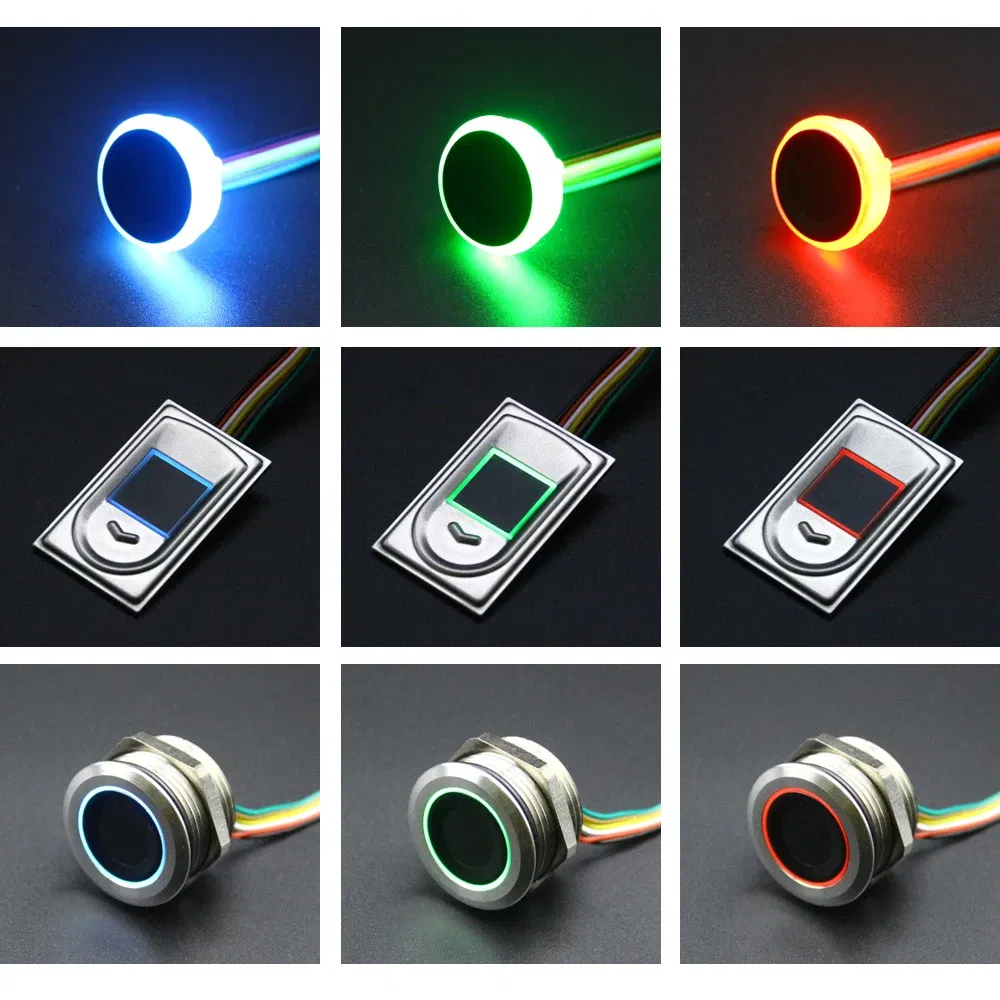

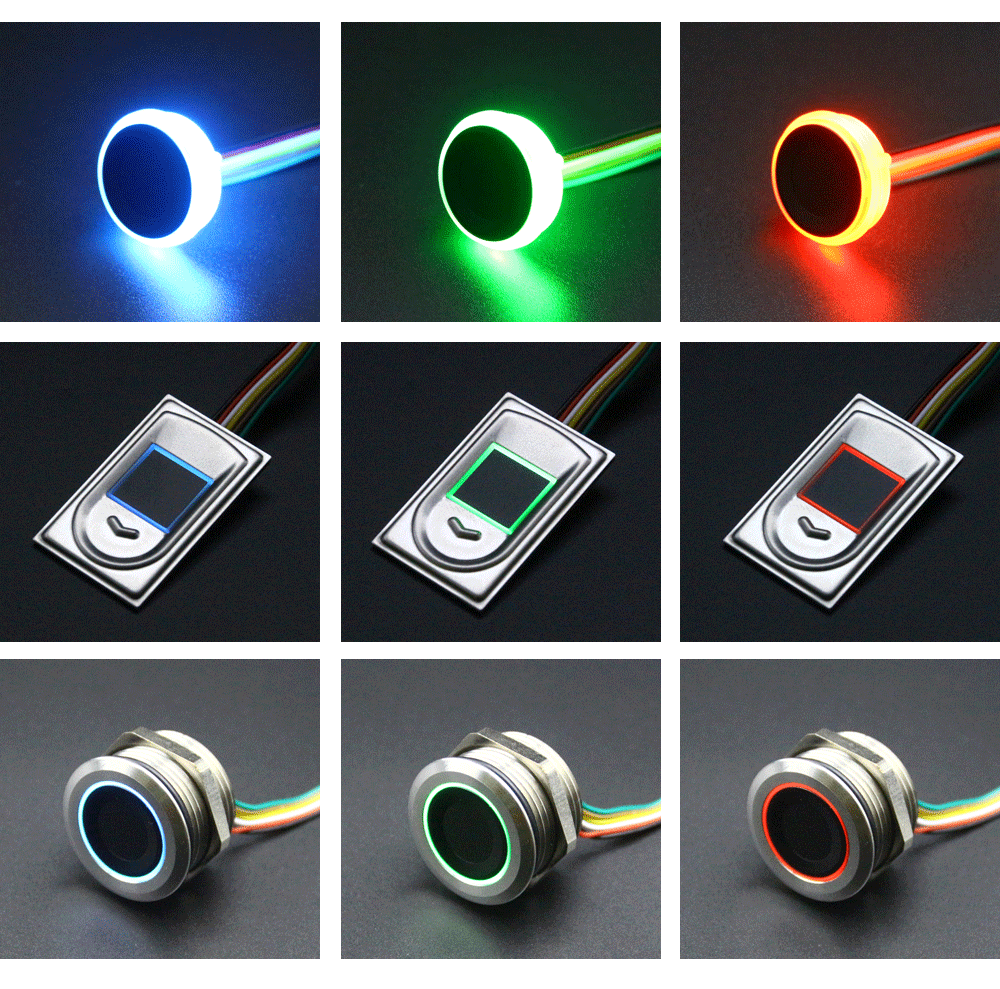

(fingerprint reader purchased separately according to demand)
