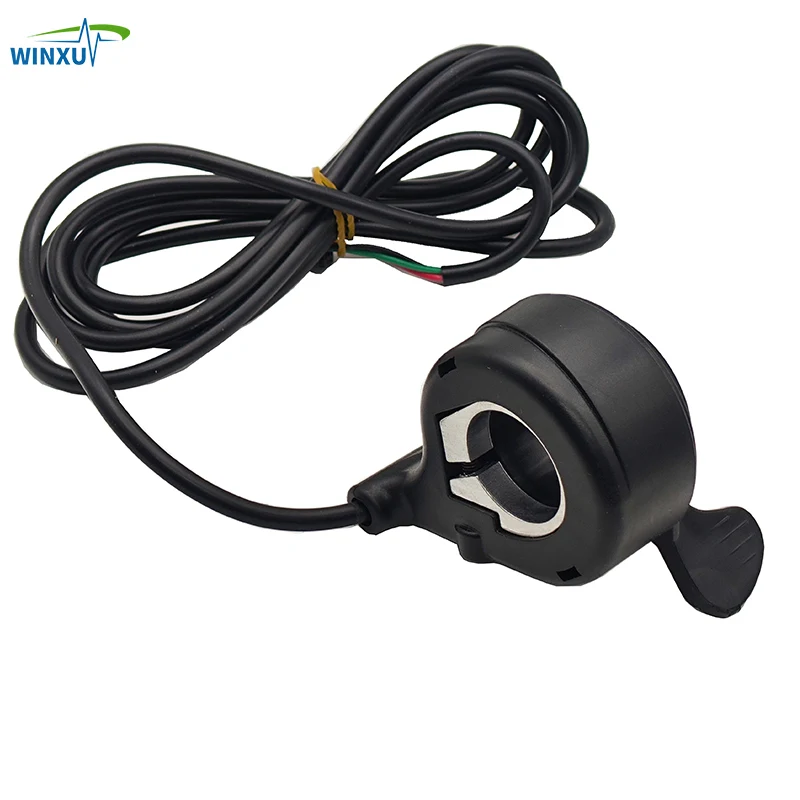

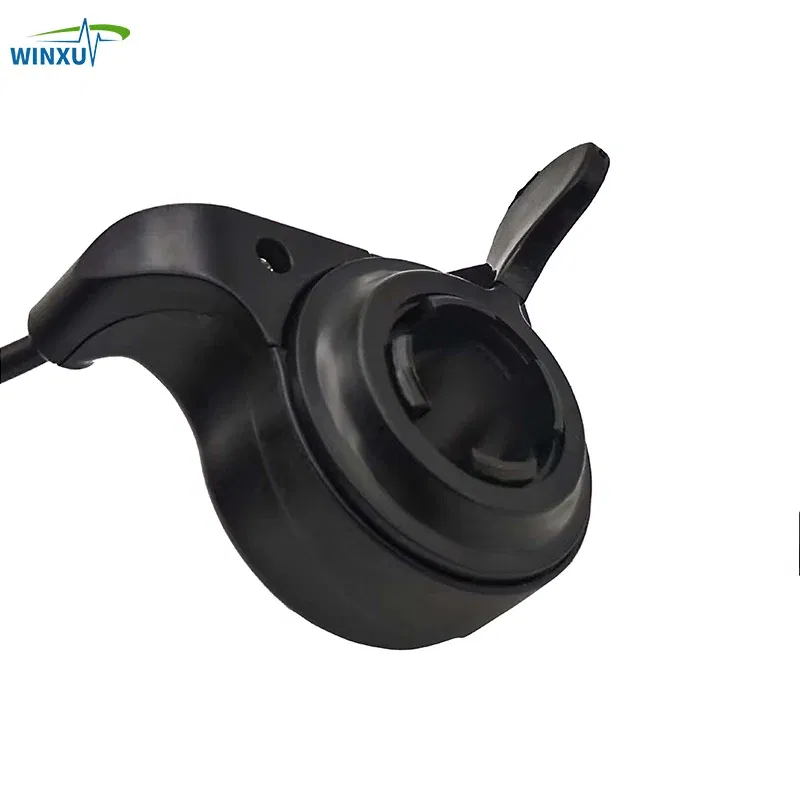

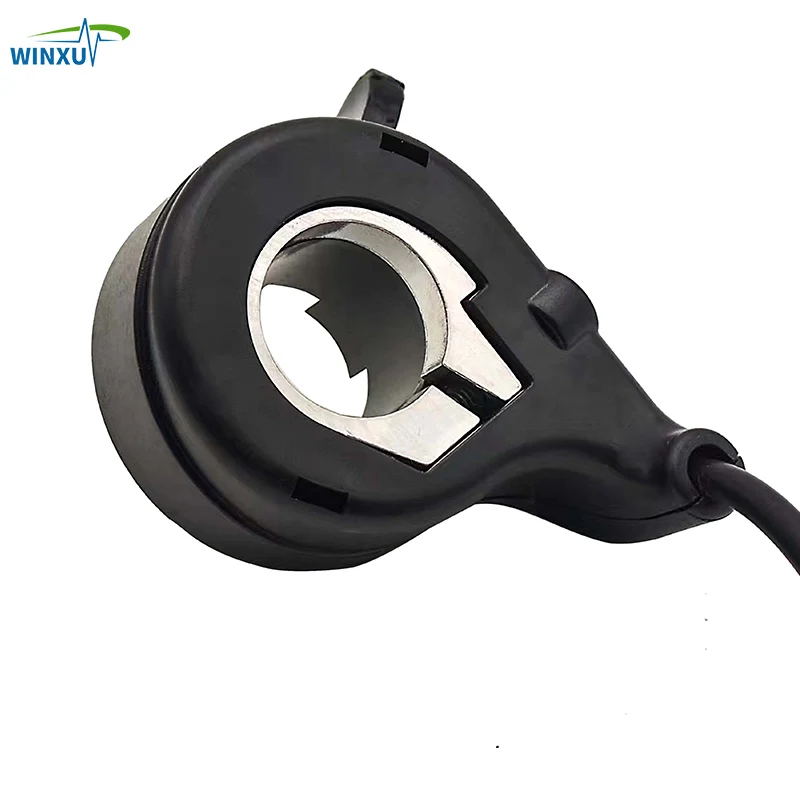

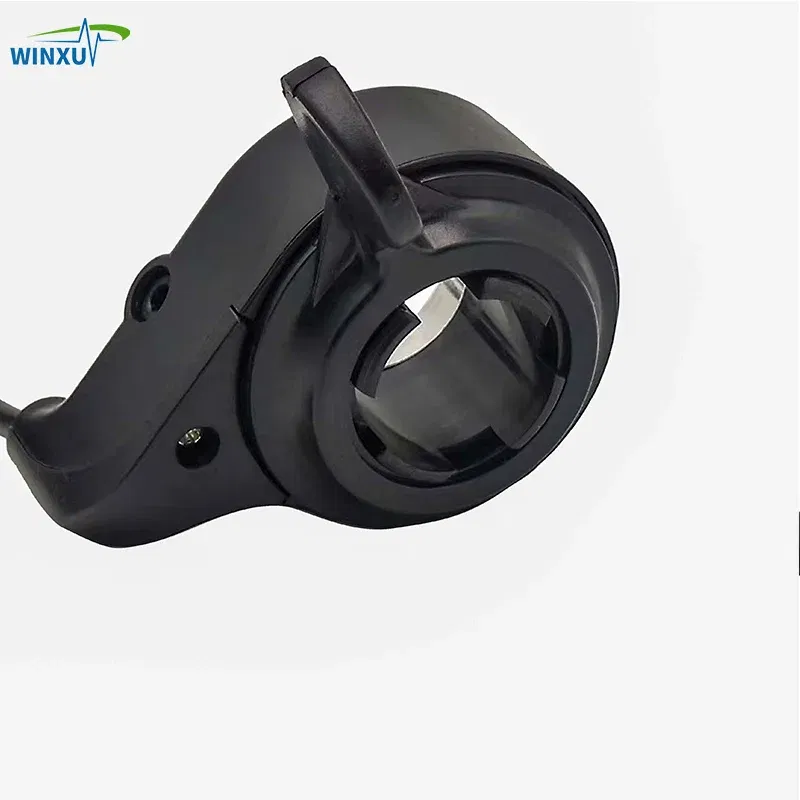

Color: Light Yellow - Electric Bicycle Throttle Speed Regulator Non-Display Speed Control Thumb Throttle Accelerator E-Bike Scooter Accessories
Throttle Type: hall
Wire length: 1.5m
material: ABS plastic
Origin: Mainland China
Type: Throttle
Choice: yes
semi_Choice: yes
For more products, please visit our shop
Product Features
--Wide range of applications: no restriction on battery type, lead-acid or lithium batteries or other batteries can be used.
--Strong compatibility: No matter what kind of EV model, it can be directly used for 12V, 24V, 36V, 48V, 60V, 72V EV, and part of 84V EV can also be applied.

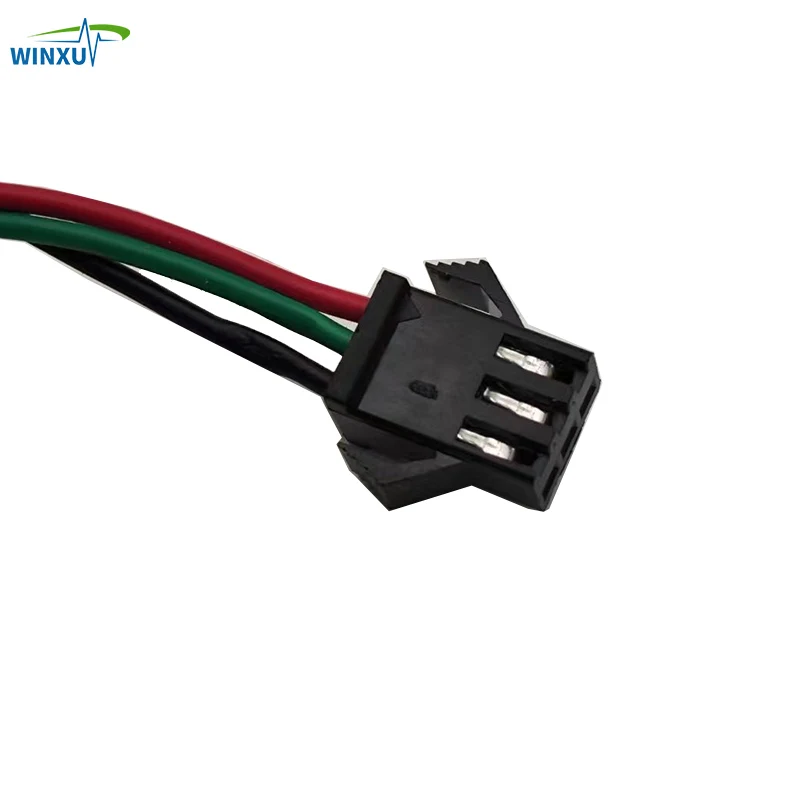

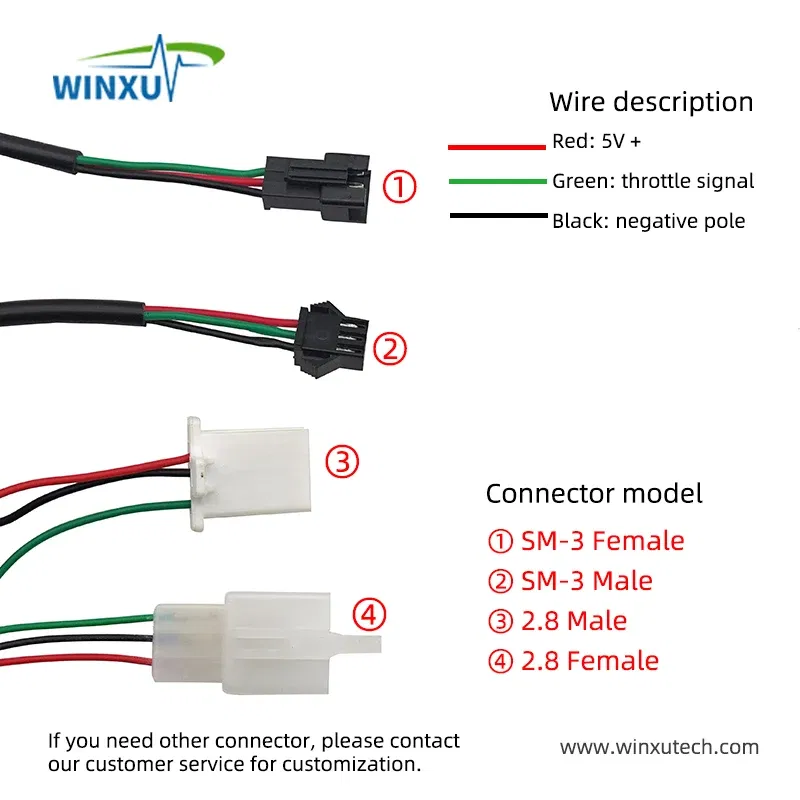

--Cable Function Description: The green line is the throttle hall signal line, the red line connects the positive 5V line, and the black line is the negative line.
--Plastic material: made of high quality plastic material, impact resistant and durable.
--Warm Tips: please connect the wires while checking the controller function wires, don't simply connect the controller wires according to the colours, wrong connection will lead to damage to the controller or throttle.
Product Specification
Name: E-bike Throttle Controller
Item Type: Thumb Throttle Speed Controller
Material: Plastic Plastic
Model: T150 (5V-99V E-bike voltage automatic recognition)
Application: For electric bicycle, electric scooter, folding bicycle
Dimensions: Cable length: approx. 150 cm/59.0 in.

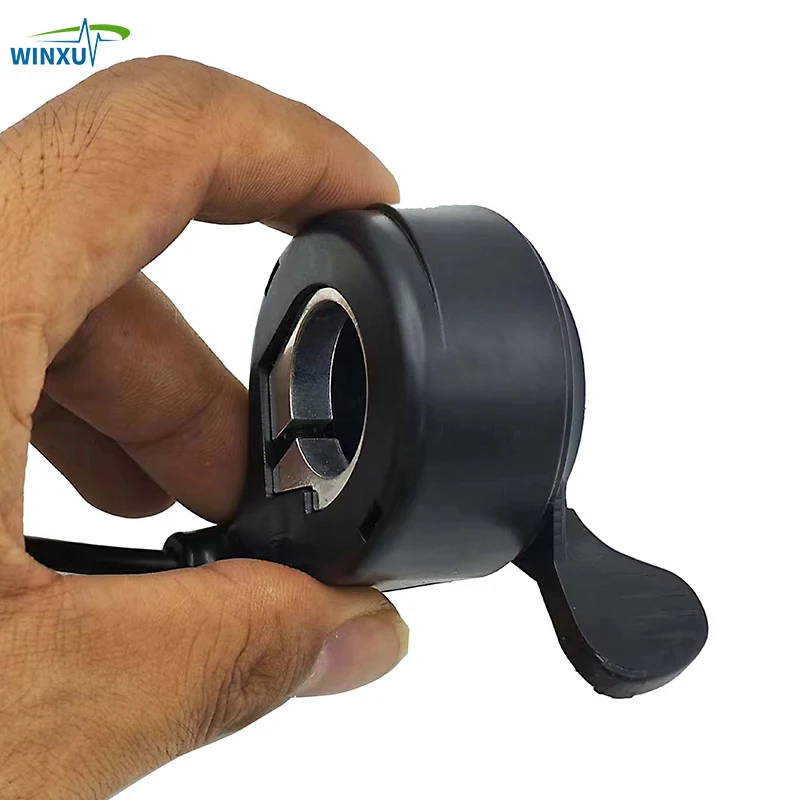

Applicable handlebar diameter: approx. 2.3 cm/0.9 inch approx. 2.3 cm/0.9 inch
Weight: Approx. 83 g/2.9 oz Approx. 83 g/2.9 oz
Efficiency: ≥98
Hall scale: linear Hall
Operating voltage: throttle DC0.8V-4.2V
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
