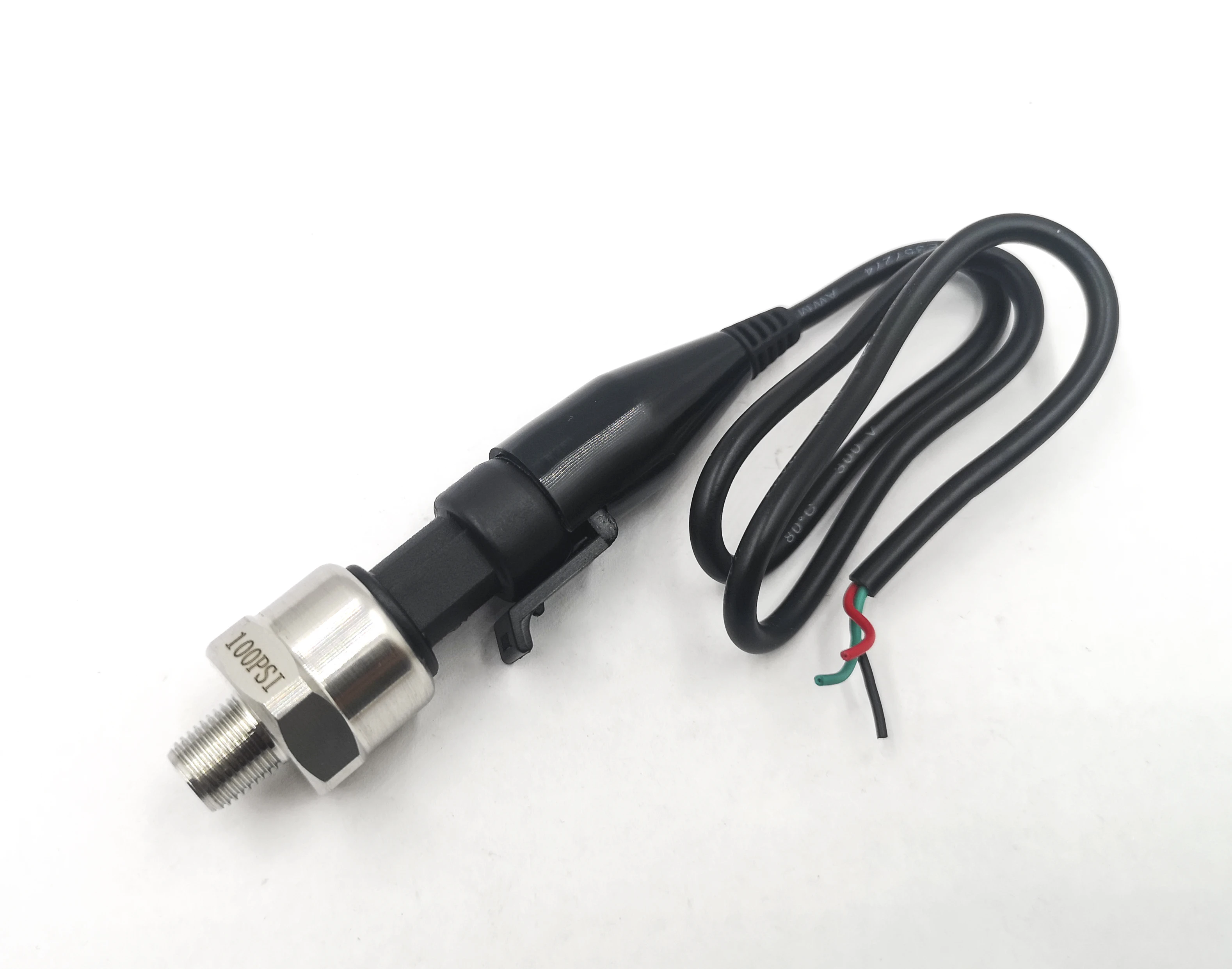

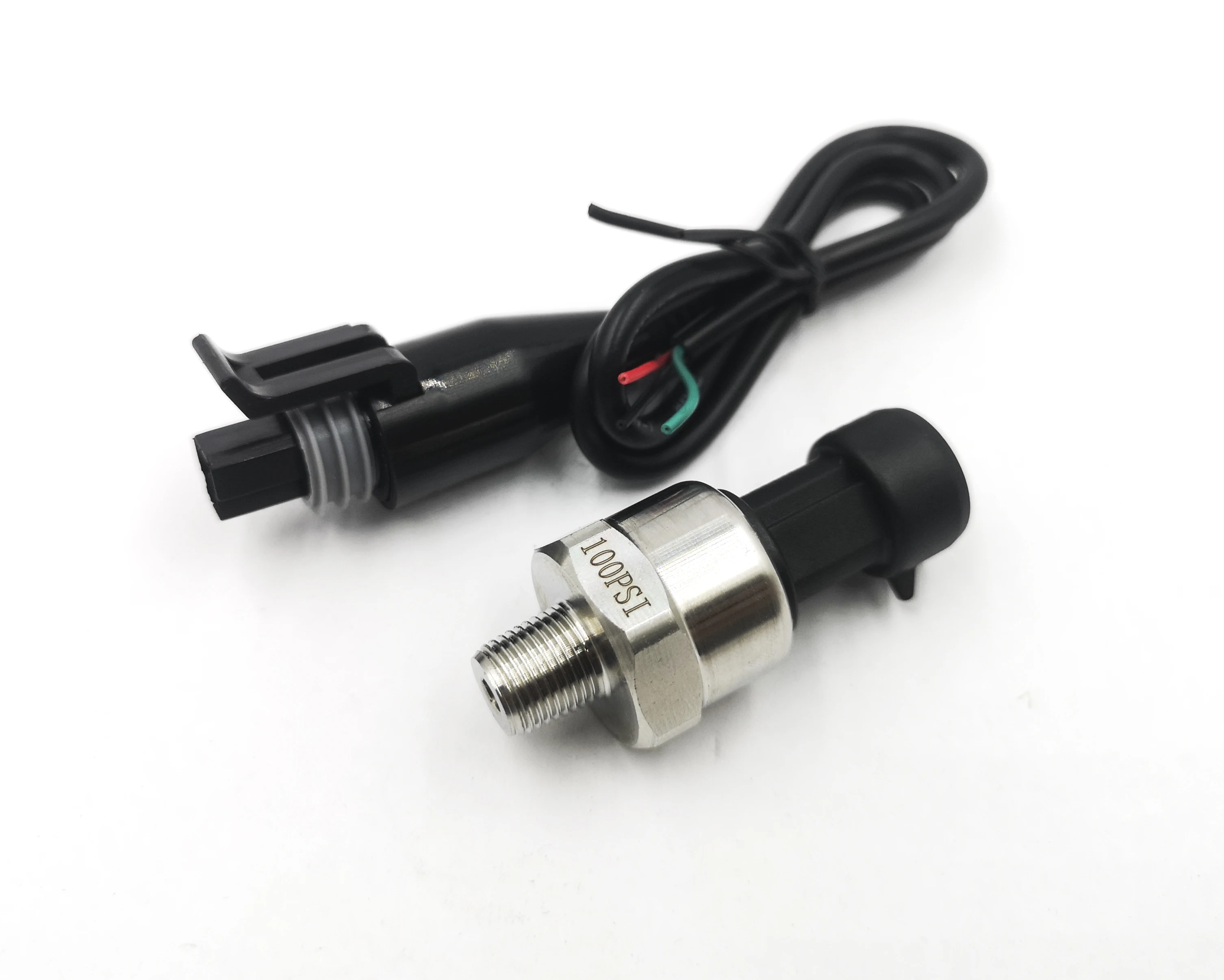

Color: Green - pressure sensor transducer transmitter for water oil fuel gas air 1/8NPT DC 5V ceramic sensor stainless steel 5-300psi optional

Features:

• Its an advance pressure transducer than traditional mechanical pressure transducer.

• ±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.

• Light weight and small size, convenient to install and operate.

• It has complete surge voltage protection function.

• Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.

Specifications:

Material: Stainless steel

Voltage: DC 5V

Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional)

Thread Type: 1/8" NPT

Parameters

Measuring range: -14.5-30psi / 5-300psi gauge
pressure
Accuracy: ±1.0%FS
Output signal: 0.5-4.5V, 0-5V, 1-5V
Supply voltage: 5VDC, 12VDC, 3.3VDC
Operating temperature: -40～105℃
Compensation temperature: -20～80℃
Operating current: ≤3mA
Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
Long-term stability: ≤±0.2%FS/year
Response time: ≤3ms
Overload pressure: 150%FS
Burst pressure: 300%FS
Cycle life: 500,000 times
Sensor core: Al2O3-96% ceramic sensor
Pressure medium: Non-corrosive liquid or gas
Pressure connection: 1/8”NPT, Other pressure connection is on request
Electrical connection: Packard connection
Housing material: 304 Stainless Steel
Protection class: IP65
Explosion-proof class: ExiaⅡCT6
Weight: ≈0.080kg
