Color: Blue, Ships From: CHINA - 2025 Fanxiang S660/S770/S880 SSD NVMe M2 PCIe4.0x4 1TB 2TB 4TB Internal Solid State Drive For PlayStation5/PS5 Desktop SSD Hard

Fanxiang S660/S770/S880 SSD NVMe M2 PCIe4.0x4 1TB 2TB 4TB Internal Solid State Drive For PlayStation5/PS5 Desktop SSD Hard Disk

Installation video as below

Specification

Brand:Fanxiang

Supported System:For PS5,Windows 7/8/10/11./Linux/Unix

Storage Temperature:-20+85

Operating Temperature:0+70

Size:80*22*2.4mm

Weight:40g

Warranty:5-year

S660-Support PS5-With Heatsink

Cooling:Aluminum Alloy Heatsink

Interface Type:M.2 2280 NVMe PCIe 4.0x4

Storage Medium:3D TLC NAND Flash

Capacity:

S660-500GB:Sequential Read Speed up to 4800 MB/s;Write Speed up to 2650 MB/s.Max to 350TBW

S660-1TB:Sequential Read Speed up to 5000 MB/s;Write Speed up to 4500 MB/s.Max to 700TBW

S660-2TB:Sequential Read Speed up to 4800 MB/s;Write Speed up to 4200 MB/s.Max to 1400TBW

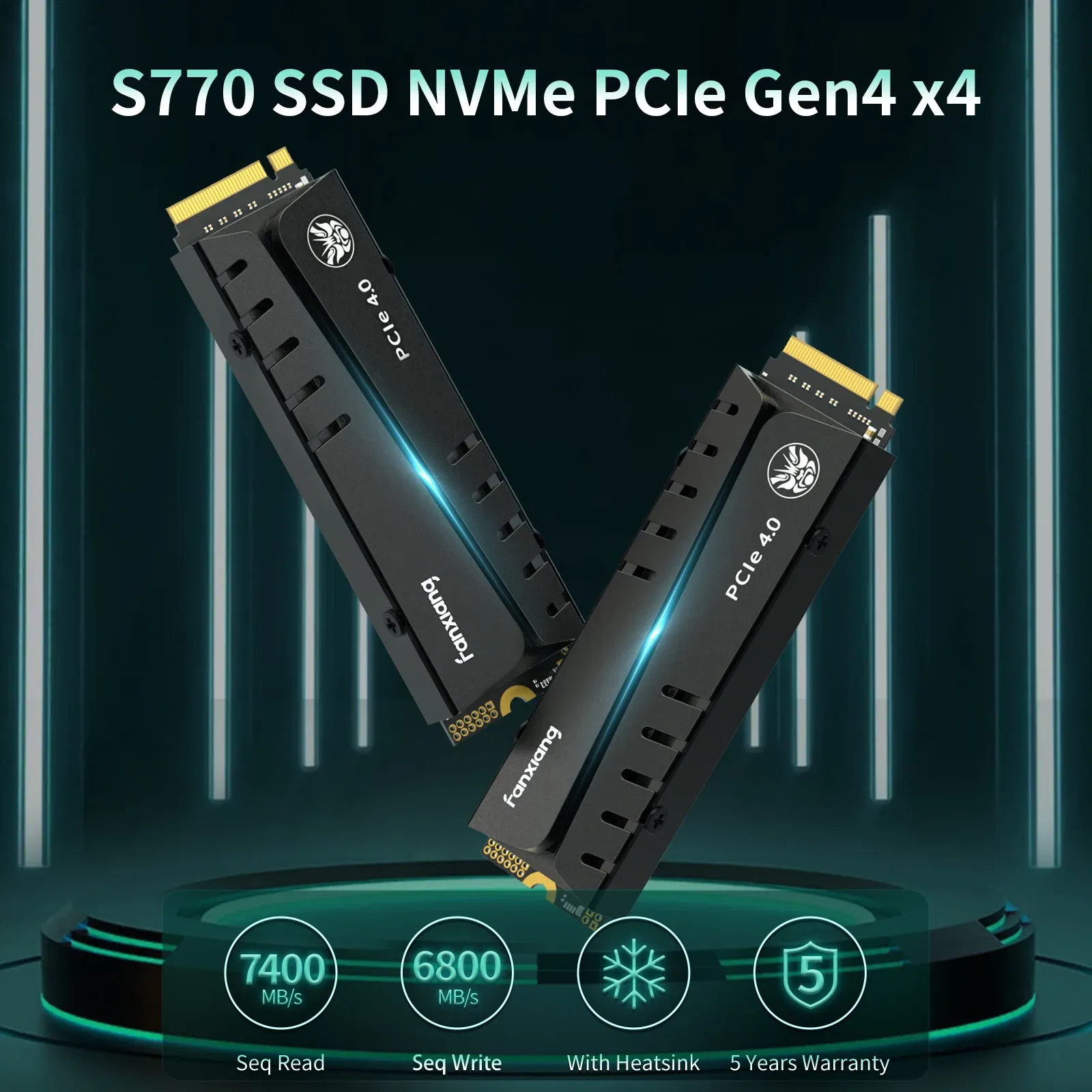

S770-Support PS5 Best-With Heatsink

Cooling:Aluminum Alloy Heatsink

Interface Type:M.2 2280 NVMe PCIe 4.0x4

Storage Medium:3D TLC NAND Flash

Capacity:

S770-1TB:Sequential Read Speed up to 7400 MB/s;Write Speed up to 5400 MB/s.Max to 700TBW.With 1GB DRAM Cache.

S770-2TB:Sequential Read Speed up to 7400 MB/s;Write Speed up to 6800 MB/s.Max to 1400TBW.With 2GB DRAM Cache.

S770-4TB:Sequential Read Speed up to 7400 MB/s;Write Speed up to 6800 MB/s.Max to 2000TBW.With 4GB DRAM Cache.

S880-Support PS5-No Heatsink

Cooling:Graphene Cooling Sticker

Interface Type:M.2 2280 NVMe PCIe 4.0x4

Storage Medium:3D TLC NAND Flash

Capacity:

S880-1TB:Sequential Read Speed up to 7300 MB/s;Write Speed up to 6500 MB/s.Max to 700TBW

S880-2TB:Sequential Read Speed up to 7300 MB/s;Write Speed up to 6800 MB/s.Max to 1400TBW

S880-4TB:Sequential Read Speed up to 7300 MB/s;Write Speed up to 6800 MB/s.Max to 2800TBW

S880R-Support PS5-With Heatsink

Cooling:Aluminum Alloy Heatsink

Interface Type:M.2 2280 NVMe PCIe 4.0x4

Storage Medium:3D TLC NAND Flash

Capacity:

S880R-1TB:Sequential Read Speed up to 7450 MB/s;Write Speed up to 6500 MB/s.Max to 700TBW

S880R-2TB:Sequential Read Speed up to 7450MB/s;Write Speed up to 6800 MB/s.Max to 1400TBW

S880R-4TB:Sequential Read Speed up to 7450 MB/s;Write Speed up to 6800 MB/s.Max to 2800TBW

Package Contents:

S660/S770/S880/S880R SSD x 1

Heat sink x 1(Only S660,S770,S880R)

Screwdriver x 1

Screw x 1

Notice:

1.S880R is just a number to distinguish S880. They are essentially the same product, but the chip version of S880R is newer and S880R has heatsink. Their outer packaging is the same.

2.The S880R product received by the buyer has already installed the heatsink. If the buyer does not need to use the heatsink,he can use a screwdriver to unscrew the screws and remove the heatsink.

Note to buyers:

S660,S770,S880 supports delivery within 7-days from the Germany and US warehouse.

On PS5,S770/S880/S880R will not reach the maximum speed marked 7400MB/s,and the estimated reading speed of S770/S880/S880R is 6500MB/s.If buyer mainly uses it to expand PS5,please pay attention to the points in advance.

On PS5,S660 will not reach the maximum speed marked 5000MB/s,and the estimated reading speed is 4720MB/s.If buyer mainly uses it to expand PS5,please pay attention to the points in advance.

All products are 100% original brand products from our Fanxiang factory,if you find counterfeit products,you can contact us for a full refund

The capacity of storage products is 1TB=1000GB,so after plugging into the computer,you will find that the actual capacity is lower than the rated capacity,which is a normal phenomenon

We provide a 3-5-year warranty for the product.During this period, if the product itself fails (not caused by human damage or water),you can contact us for a free replacement

The rated speed of the product needs to be matched with the corresponding motherboard to basically achieve it.If you find a speed problem,please contact our customer service first.

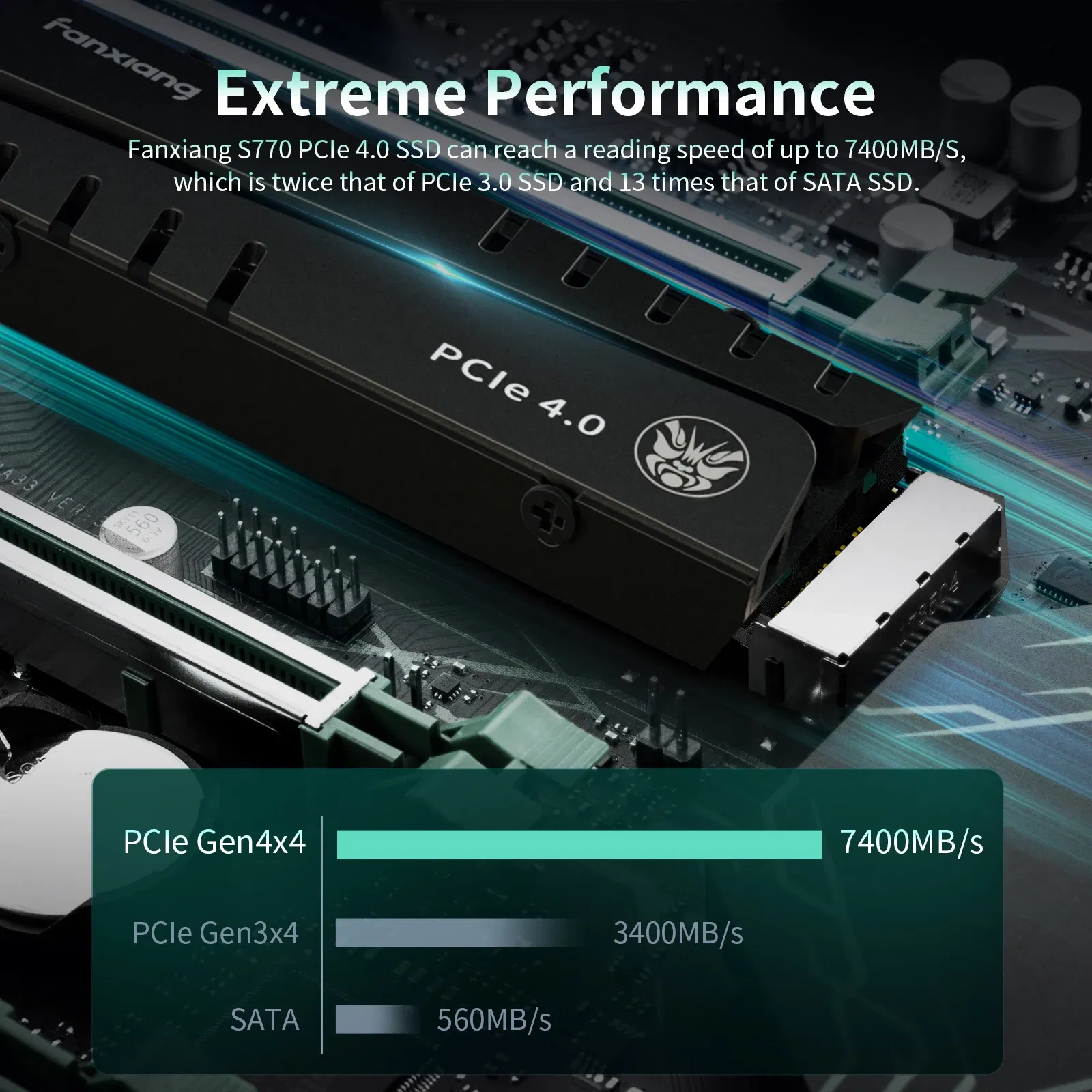

Ultimate Speed

The S770 M.2 SSD utilizes cutting-edge PCIe 4.0 technology, with read and write speeds reaching up to 7400/6800MB/s,significantly reducing file transfer and game load times, providing a smoother user experience.

Perfect Design

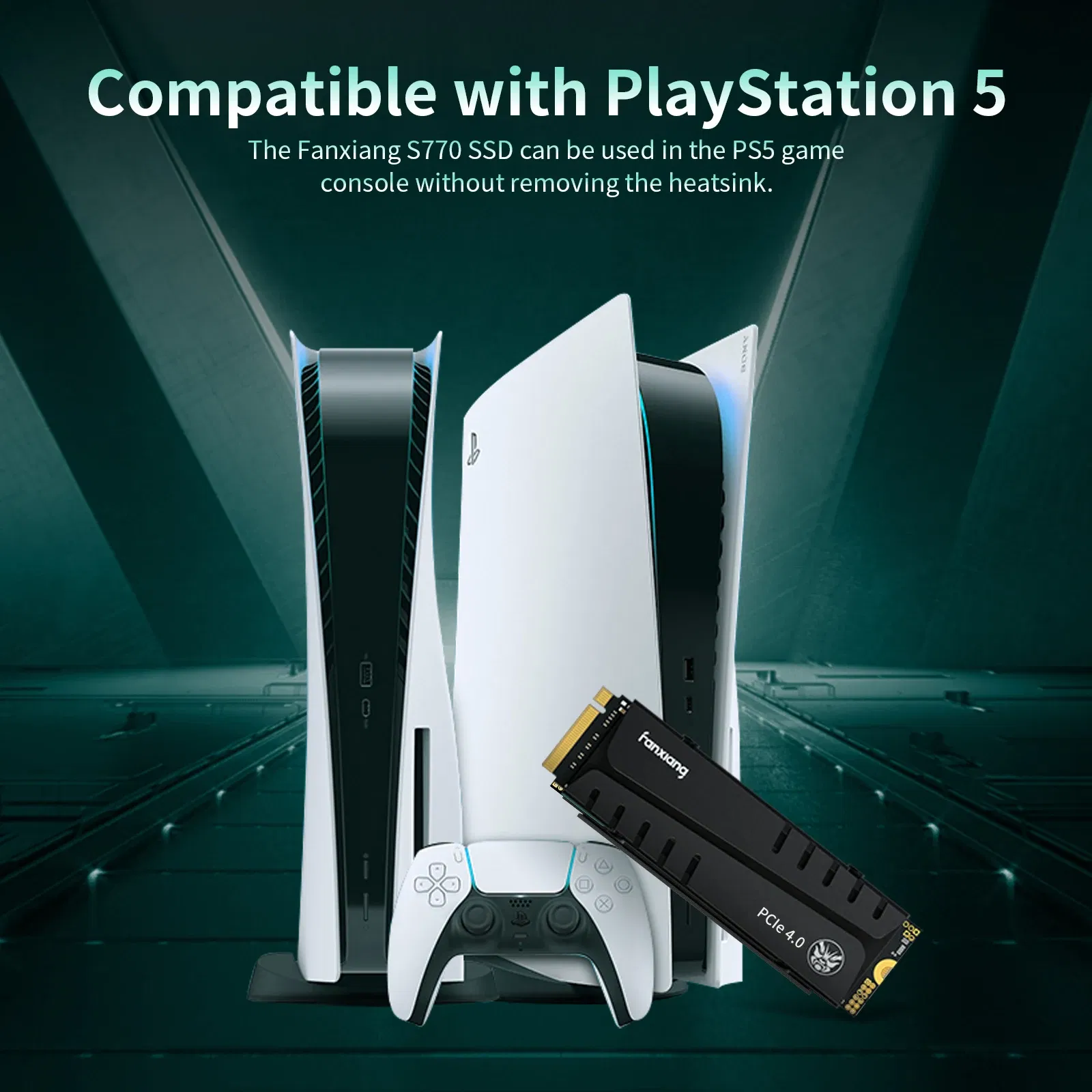

The S770 M.2 SSD features a heat sink(not installed) design that effectively reduces the temperature of the hard drive,ensuring stable operation under high loads,and it is also perfectly compatible with the PS5.Installing it is quick and easy

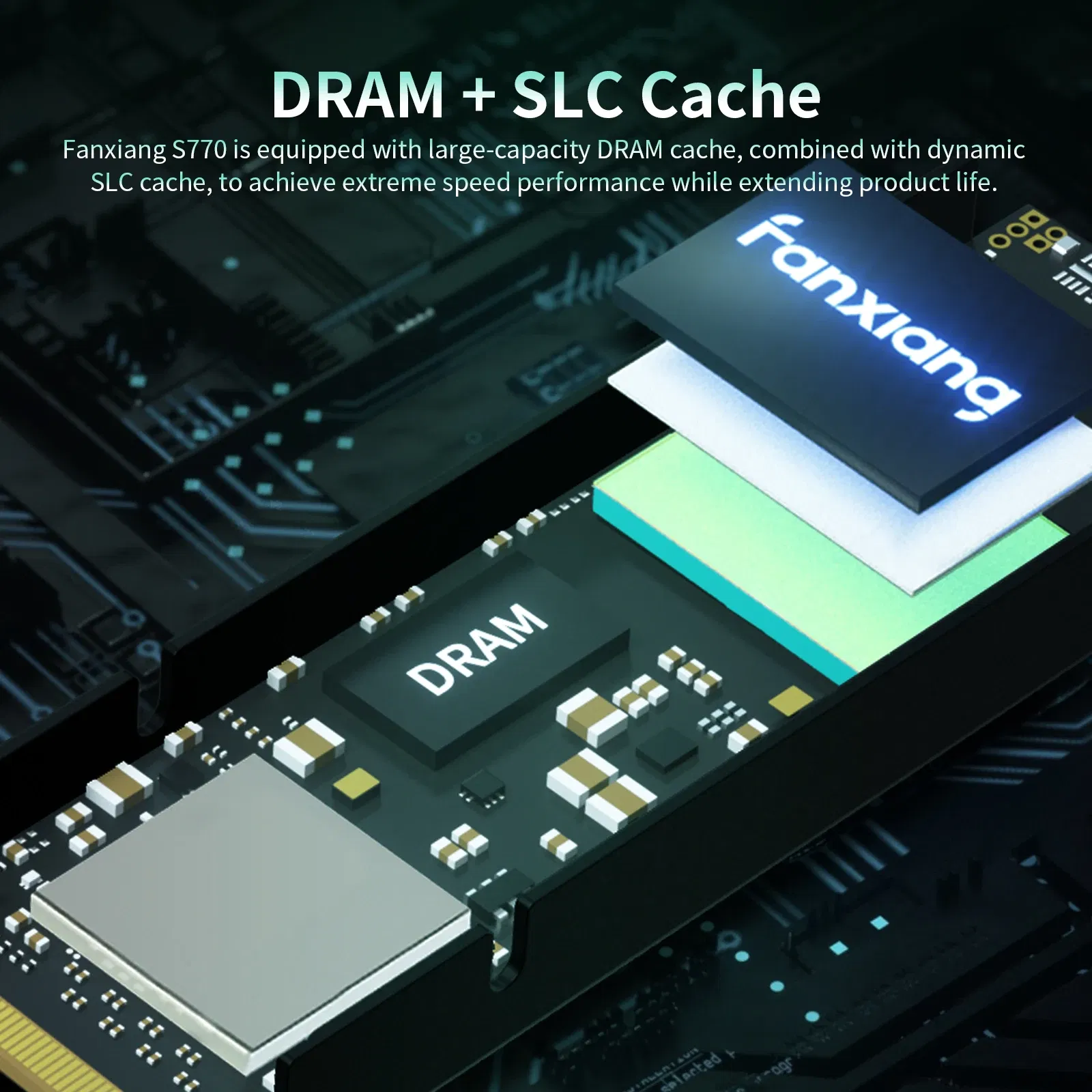

DRAM Cache

The S770 NVMe SSD is equipped with DRAM cache,accelerating read and write speeds,improving system stability, and reducing CPU burden,ensuring your hard drive can operate stably for extended periods.

Widely Compatible

Fanxiang S770 SSD internal hard drive is suitable for PC,notebook computer,all-in-one machine,perfectly compatible with Windows7/8/10(computer motherboard must be equipped with M.2 interface)

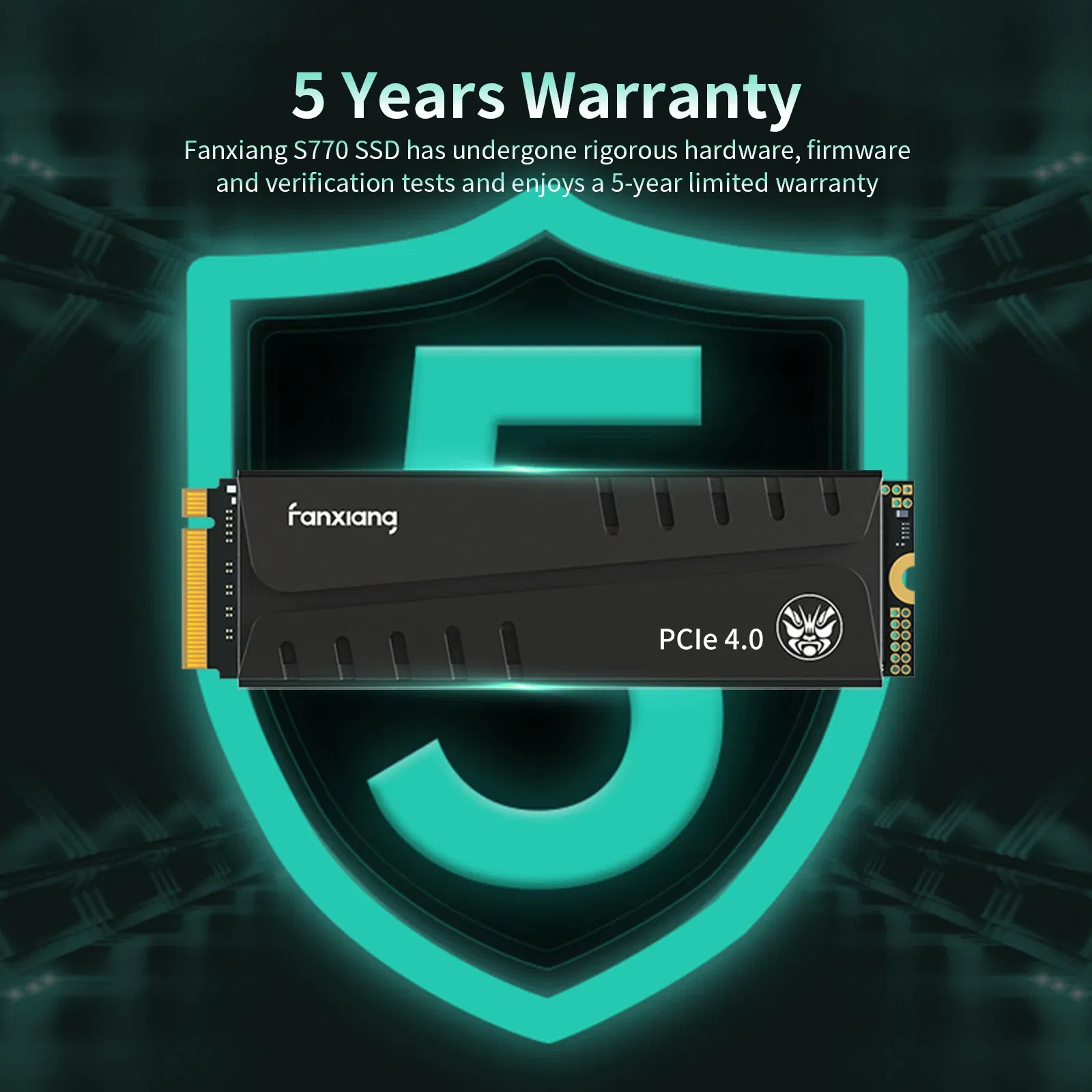

Reliable and Durable

After undergoing 80 hours of strict testing and 5 rigorous inspections,this product boasts stable performance and a long lifespan,along with a 5-year warranty and 1400TBW,providing peace of mind for all your needs.

==========

Hign-concerned Chemical : None

Read/Write Speed : 2000X

MTBF : 1000000

Max Sequential Write : 6800Mbps

Max Sequential Read : 7400Mbps

Transport Protocol : NVME

Bus Type : PCIe 4.0x4

Cache : 1GB

RGB : no

Cooling Fin : Yes

Package : Yes

Nand Flash Type : TLC

Controller : Innogrit IG5220/MAP1602

Size : M.2 2280

Interface Type : PCI Express,M.2 2280

Application : Desktop,Laptop,Server,Workstation,Industrial Computer

Origin : Mainland China

Type : Internal

Style : SSD

Certification : CE,FCC,RoHS,weee

Type : Internal M.2 SSD

Support system : For Windows 7/8/10.Mac OS 10.9 or later/Linux/Unix,For PlayStation5 PS5

Application : Game,song,movie data storage

Feature 1 : Fanxiang PCIe 4.0x4 SSD

Feature 2 : 500GB 1TB 2TB 4TB Solid State Drive

Feature 3 : NVMe M.2 2280 SSD Drive
