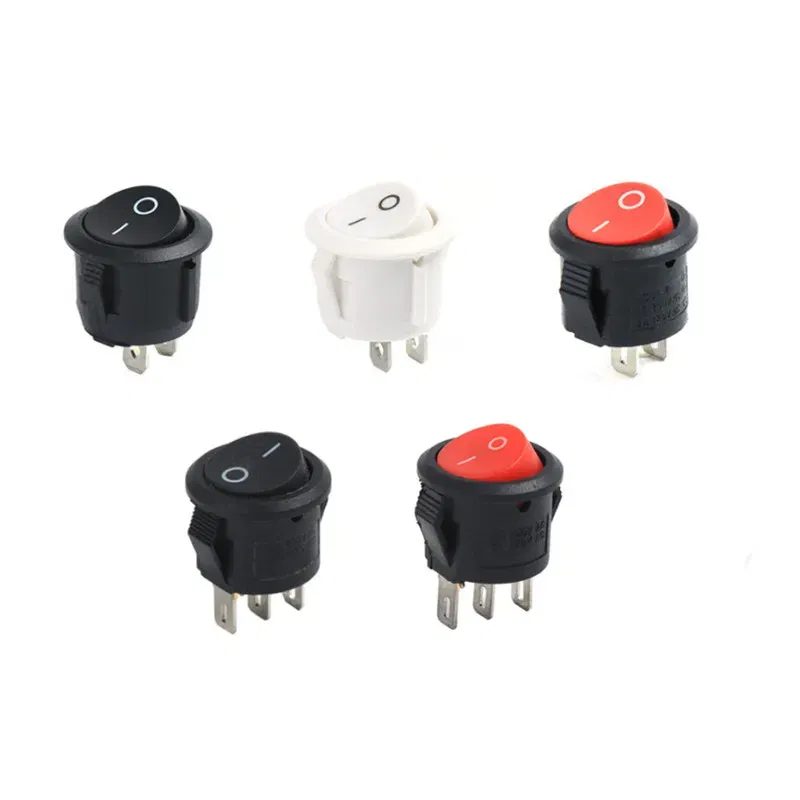

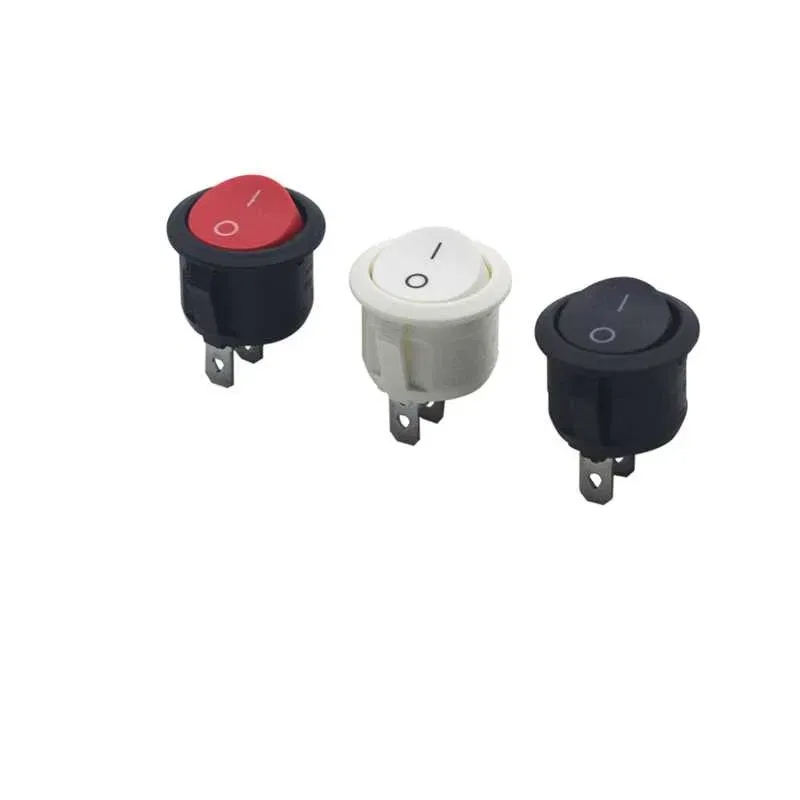

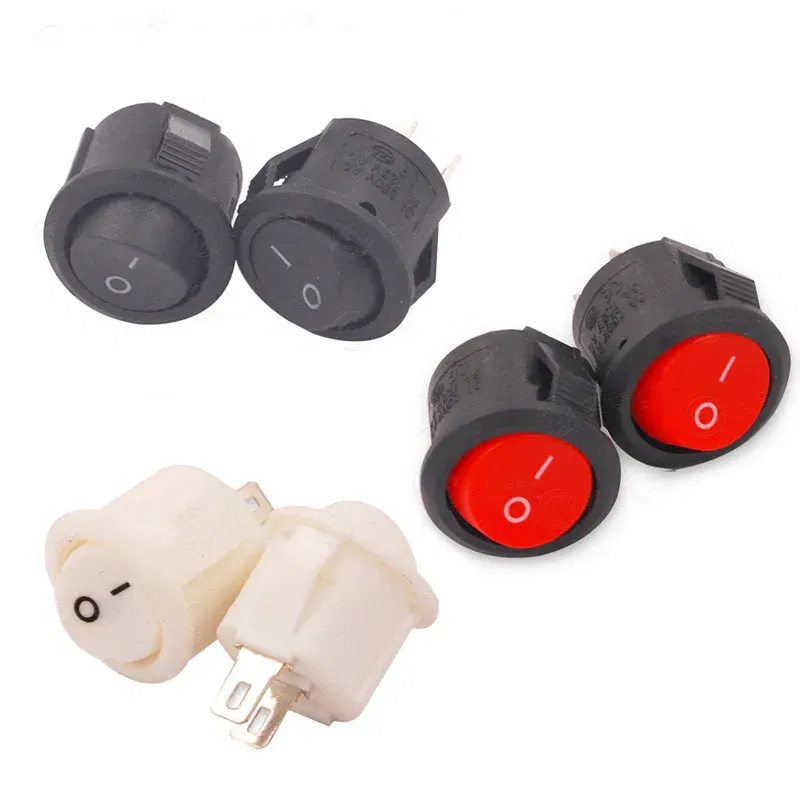

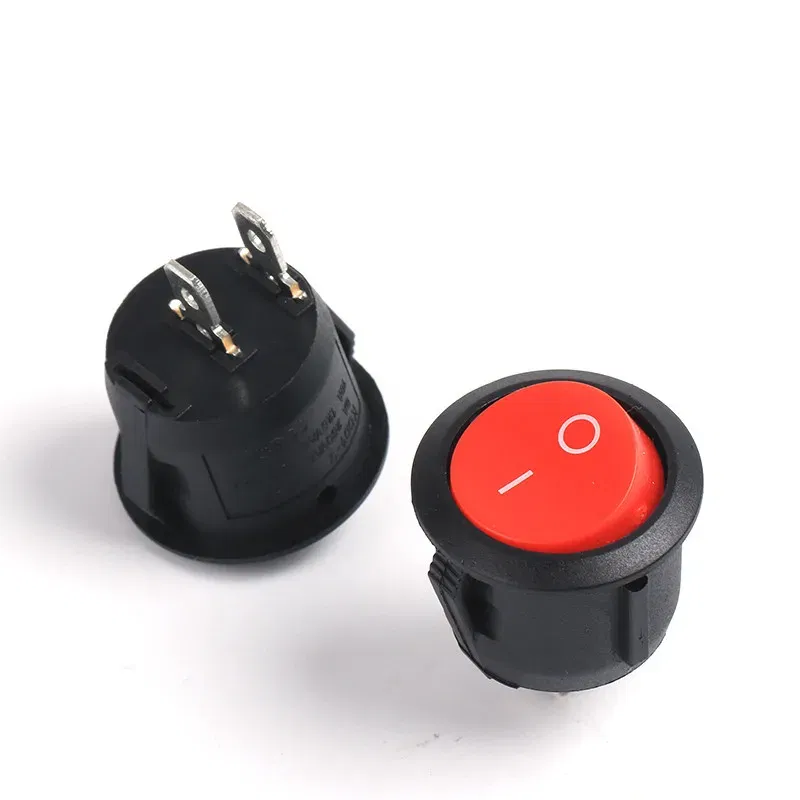

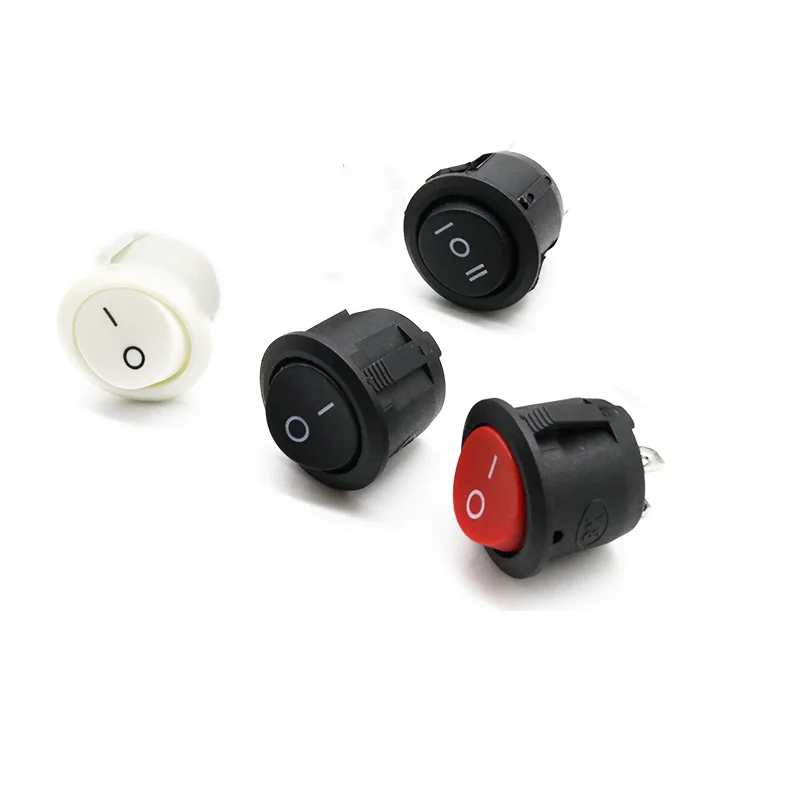

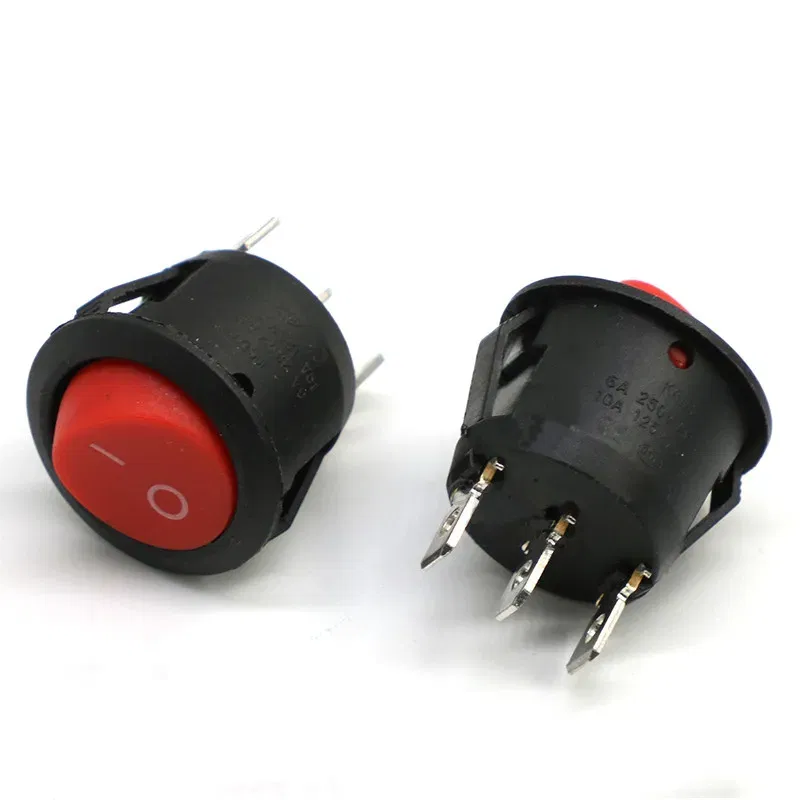

Color: black - 5Pcs KCD1-105 Diameter 16.5mm Small Round Boat Rocker Switch Mini Round Black White Red 2Pin/3Pin ON-OFF ON-OFF-ON Rocker Switch
$3.60 USD
Origin: Mainland China
Current: 10A
Features: 2PIN / 3PIN
Material: Plastic
Item Type: SWITCHES
Warranty: Standard
Switch Type: Rocker Switch
Certification: CE
Certification: ce
Model Number: KCD1-Round
Is Smart Device: No
5Pcs KCD1-105 Diameter 16.5mm Small Round Boat Rocker Switch Mini Round Black White Red 2Pin/3Pin ON-OFF ON-OFF-ON Rocker Switch
Specification:
Material: Plastic, Electric Component
Color: Black,Red,White

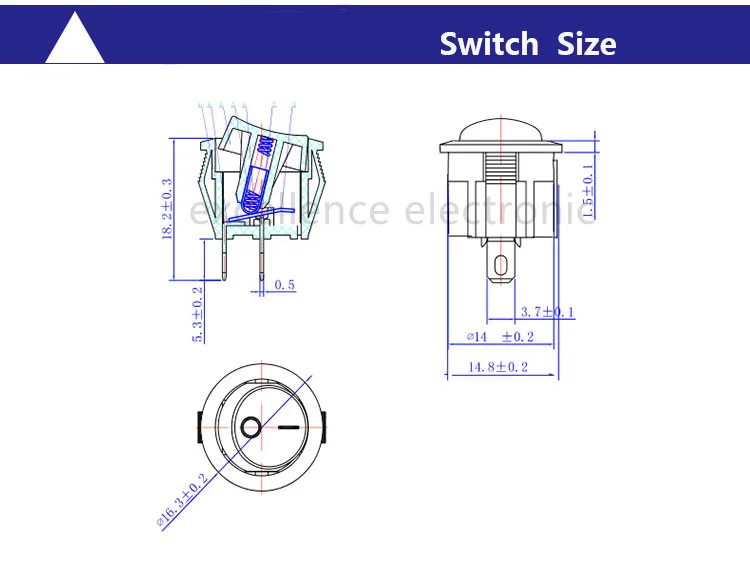

Size: As the picture show
Poles: SPST (Single Pole Single Throw)
Pin: 2 (ON-OFF)/3(ON-OFF)/2 (ON-OFF-ON)
Rated at: 6A 250V ; 10A 125V , 10A 12V
Contact Resistance: 35mΩ max
Insulation Resistance: 100MΩ at 500VDC
Dielectric Strength: 1500V AC for 1 minute
Operating Temperature: -25- +85 Celsius
Electrical Life: 10000 Cycles
Current: 10A
Features: 2PIN / 3PIN
Material: Plastic
Item Type: SWITCHES
Warranty: Standard
Switch Type: Rocker Switch
Certification: CE
Certification: ce
Model Number: KCD1-Round
Is Smart Device: No
5Pcs KCD1-105 Diameter 16.5mm Small Round Boat Rocker Switch Mini Round Black White Red 2Pin/3Pin ON-OFF ON-OFF-ON Rocker Switch
Specification:
Material: Plastic, Electric Component
Color: Black,Red,White
Size: As the picture show
Poles: SPST (Single Pole Single Throw)
Pin: 2 (ON-OFF)/3(ON-OFF)/2 (ON-OFF-ON)
Rated at: 6A 250V ; 10A 125V , 10A 12V
Contact Resistance: 35mΩ max
Insulation Resistance: 100MΩ at 500VDC
Dielectric Strength: 1500V AC for 1 minute
Operating Temperature: -25- +85 Celsius
Electrical Life: 10000 Cycles
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
