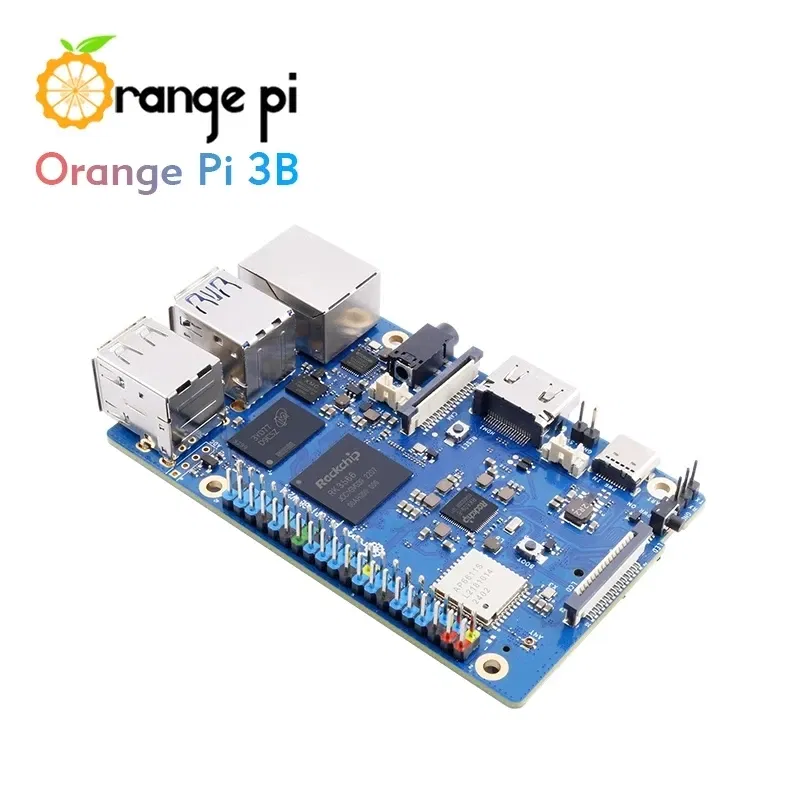

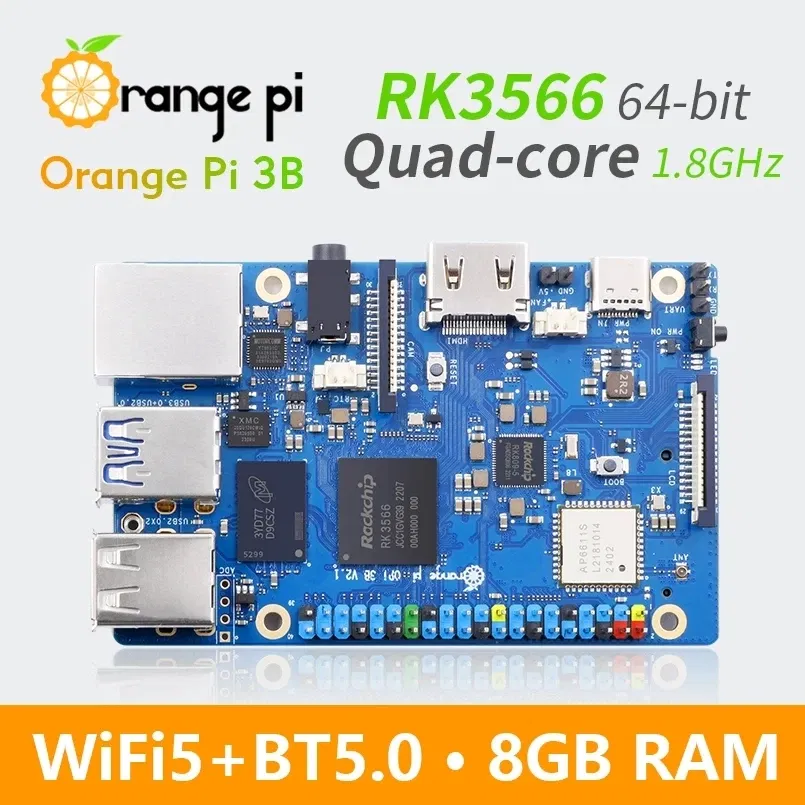

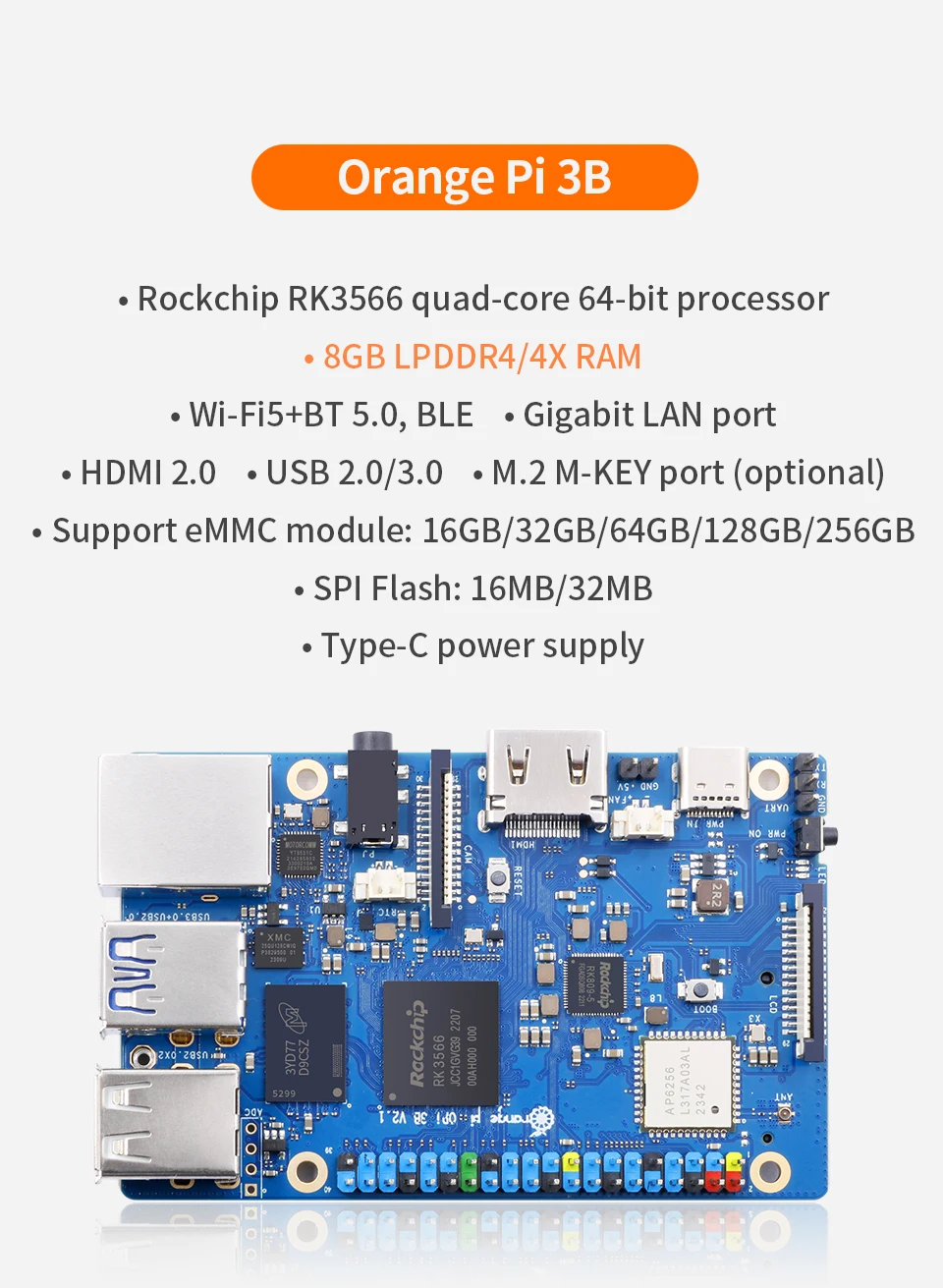

Bundle: Bundle 9, Color: Beige - Orange Pi 3B 8GB 4GB 2GB RAM Rockchip RK3566 WiFi5+BT 5.0 Gigabit LAN Port Single Board Run Android Linux OpenHarmony OS Mini PC
Origin: Mainland China
Model Number: Orange Pi 3B
Processor Brand: Rockchip
Intergrated Feature: 10/100/1000Mbps
Intergrated Feature: WiFi 802.11b/g/n
Interface: 3 x USB2.0

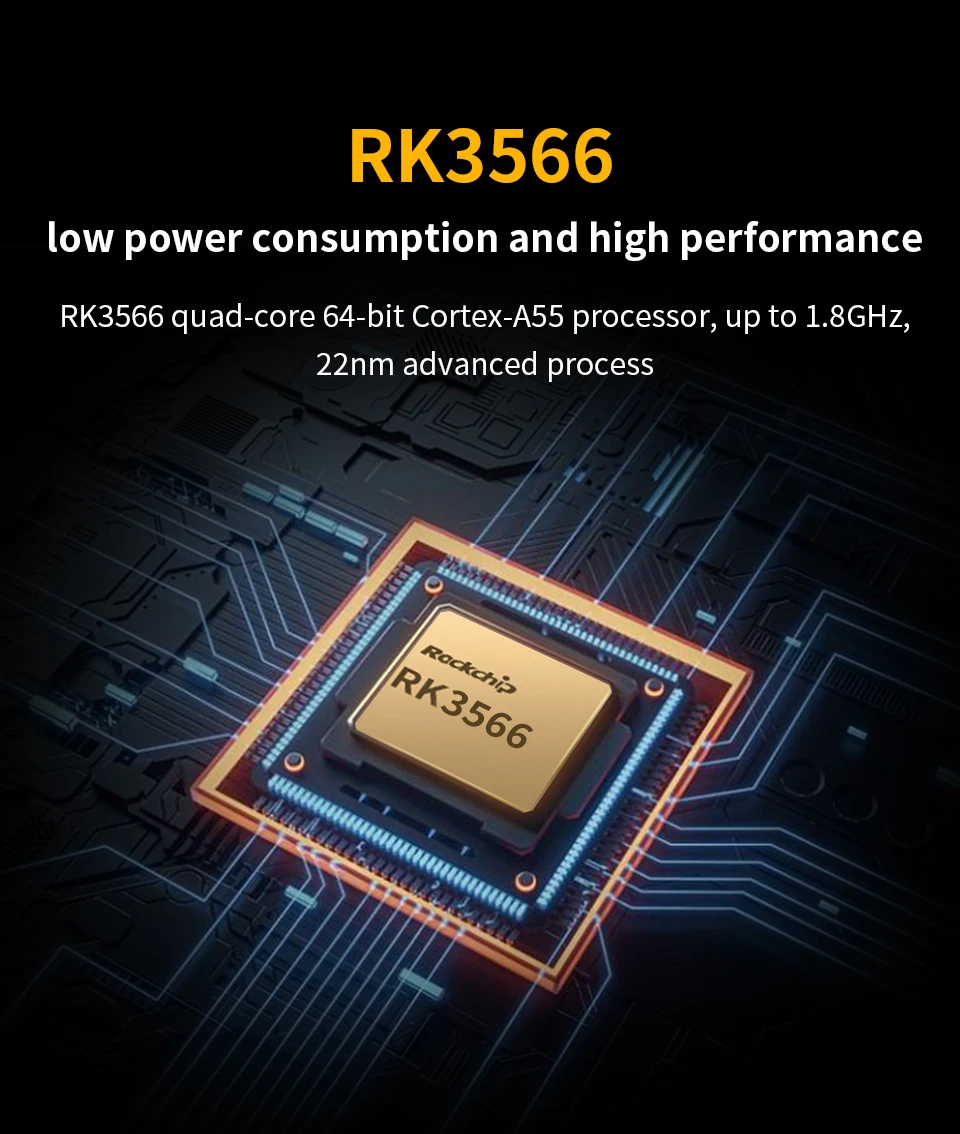

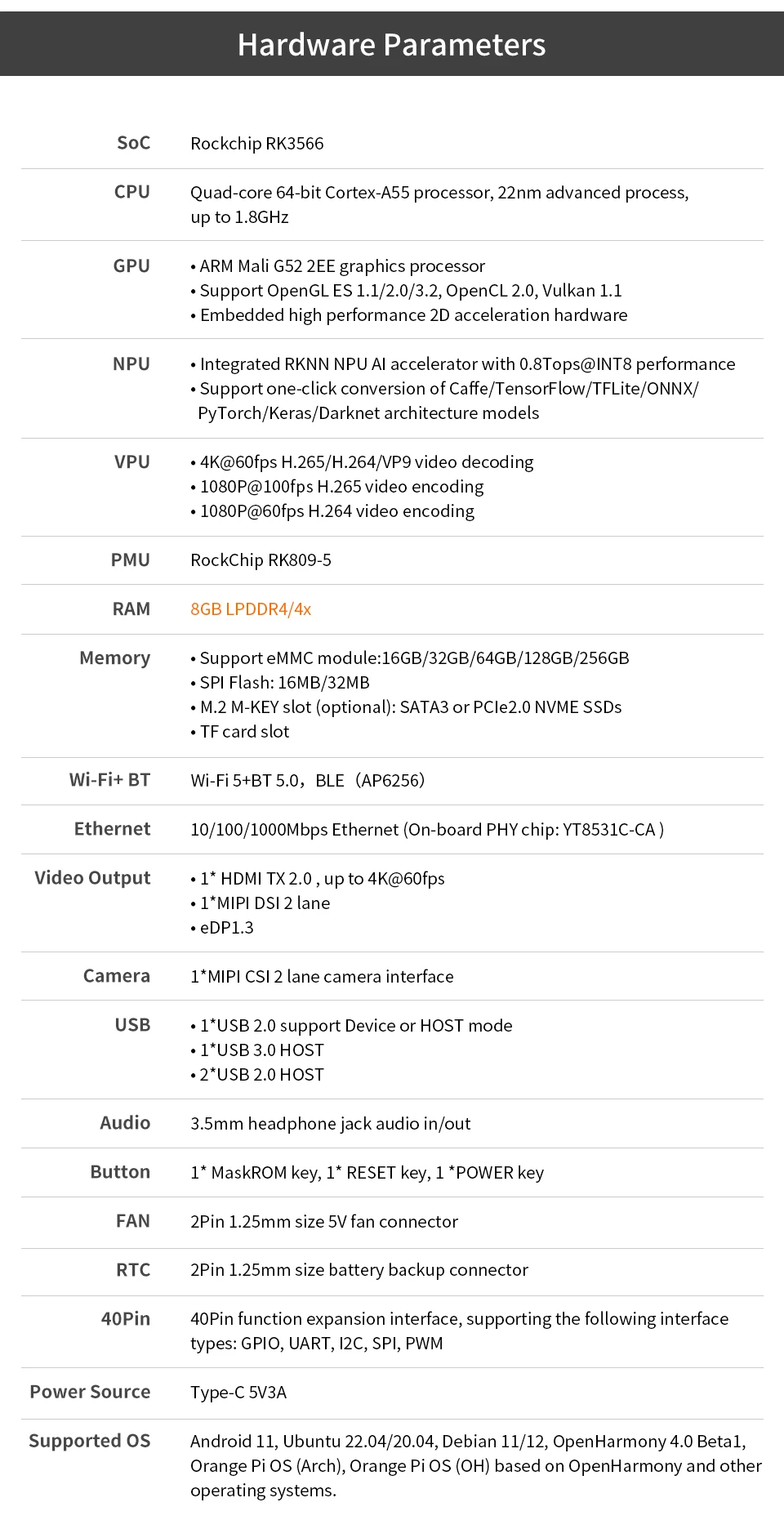

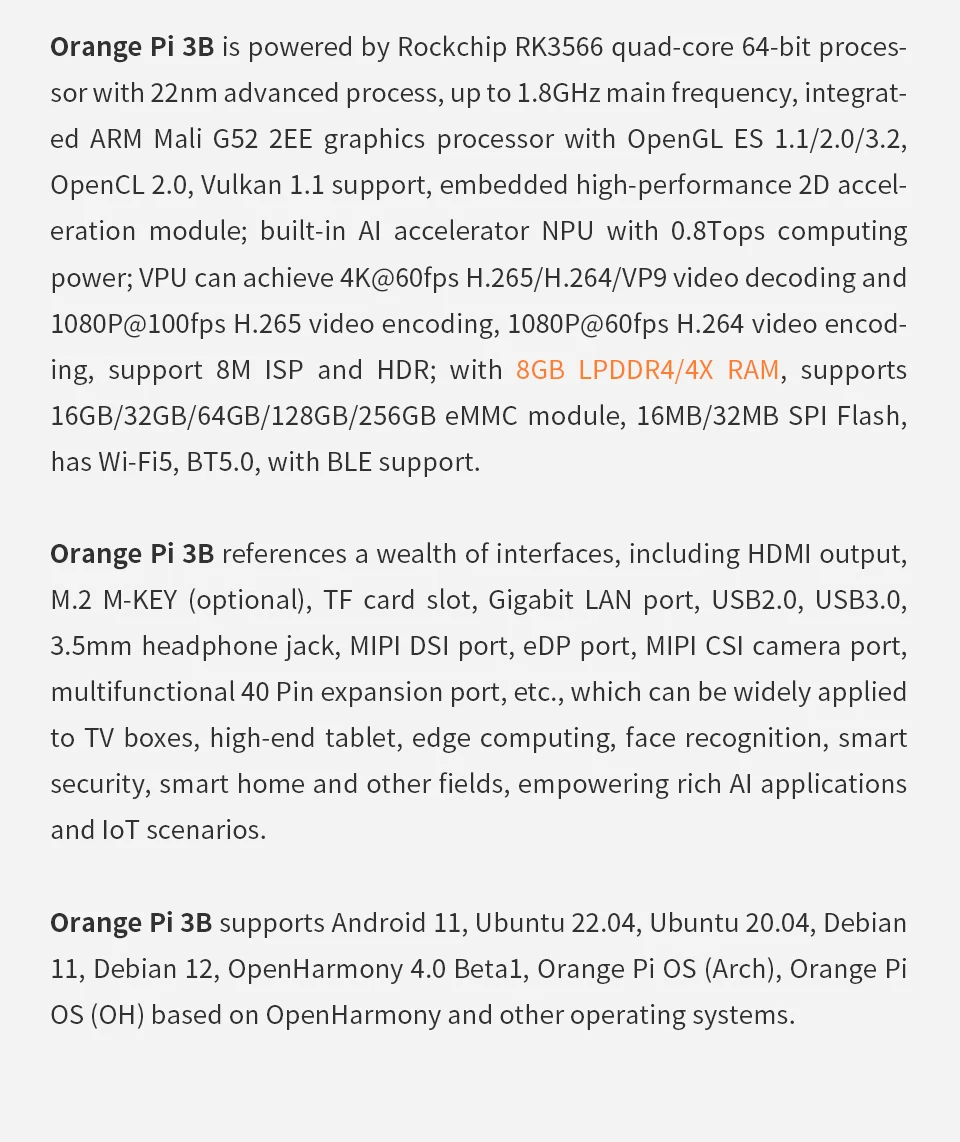

SoC: RockchipRK3566
CPU: Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz
GPU: ARM Mali G52 2EE graphics processor;upport OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1;Embedded high performance 2D acceleration hardware
NPU: Integrated RKNN NPU AI accelerator with 0.8Tops@INT8 performance;Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models
VPU: 4K@60fps H.265/H.264/VP9 video decoding;1080P@100fps H.265 video encoding;1080P@60fps H.264 video encoding
PMU: RockChip RK809-5
RAM: 2GB/4GB/8GB (LPDDR4/4x)

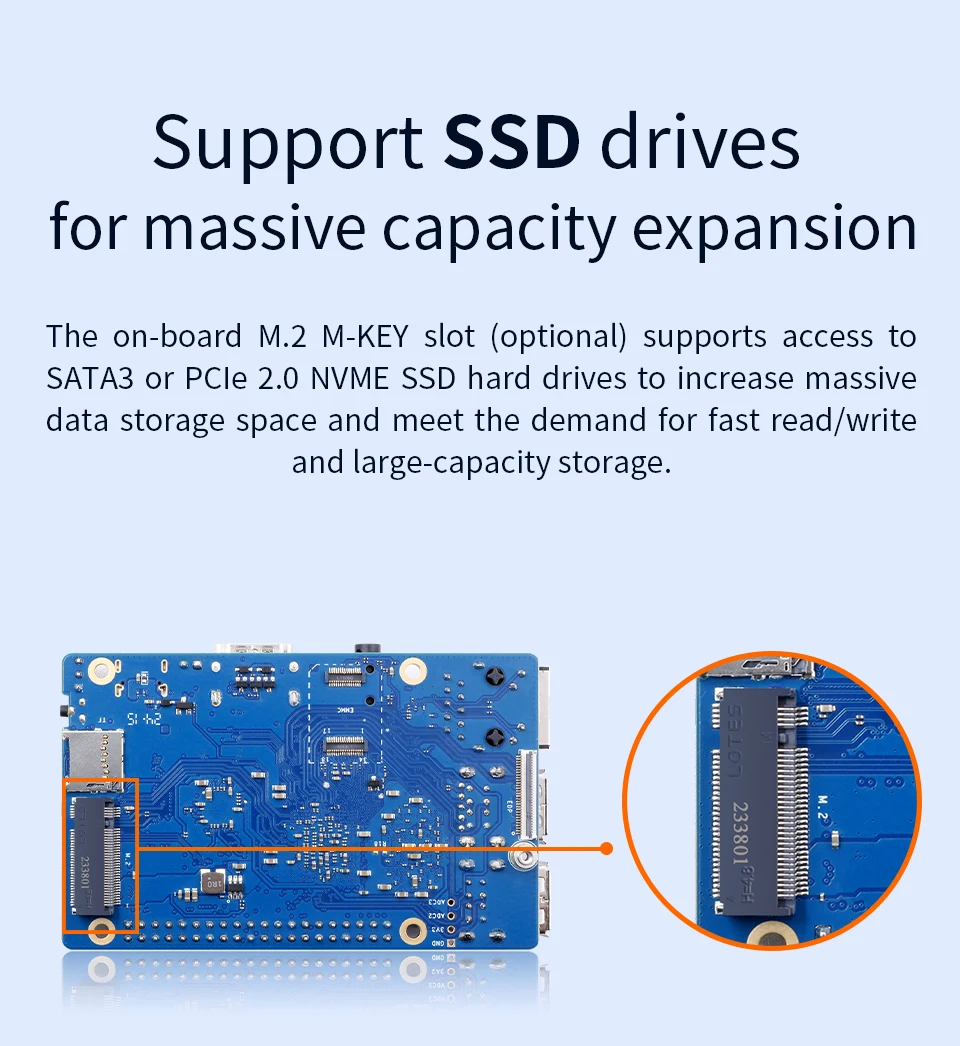

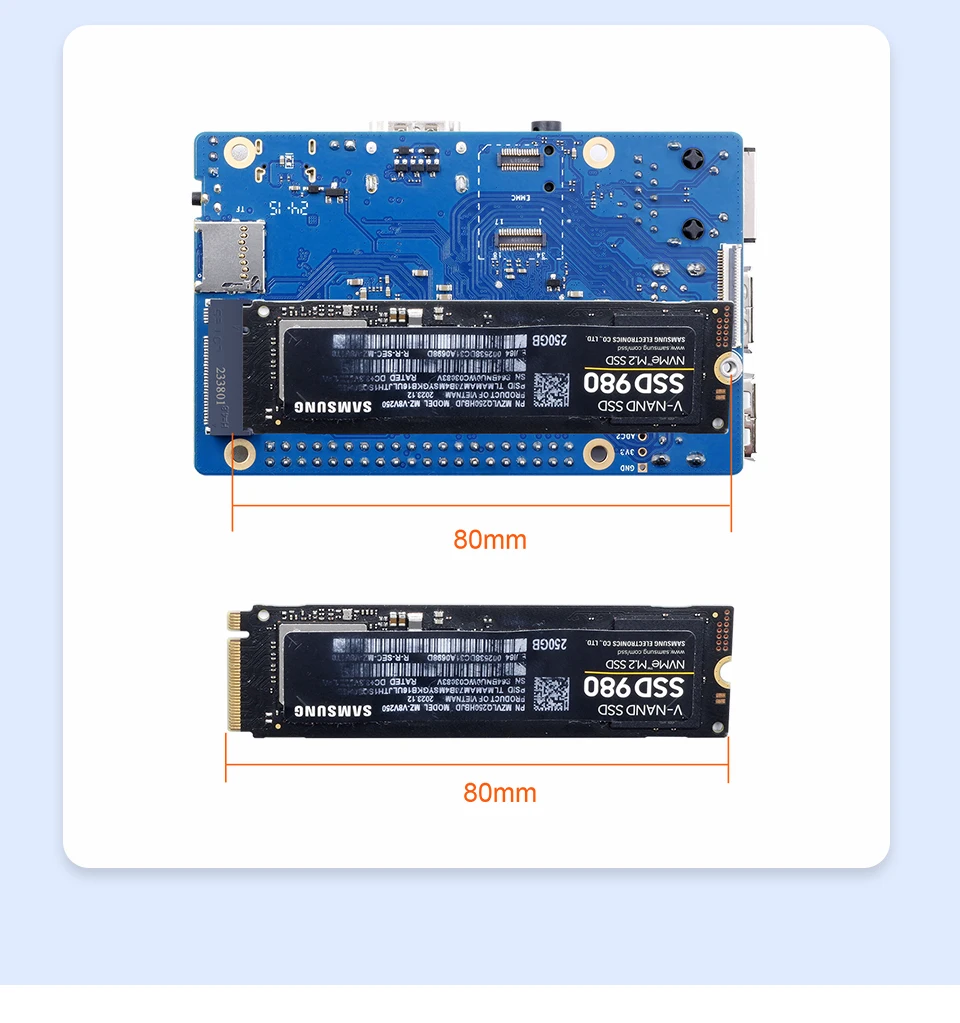

Memory: Support eMMC module:16GB/32GB/64GB/128GB/256GB;SPI Flash: 16MB/32MB;M.2 M-KEY slot (optional): SATA3 or PCIe2.0 NVME SSDs;Micro SD slot
Wi-Fi+BT: Wi-Fi 5+BT 5.0,BLE (20U5622)

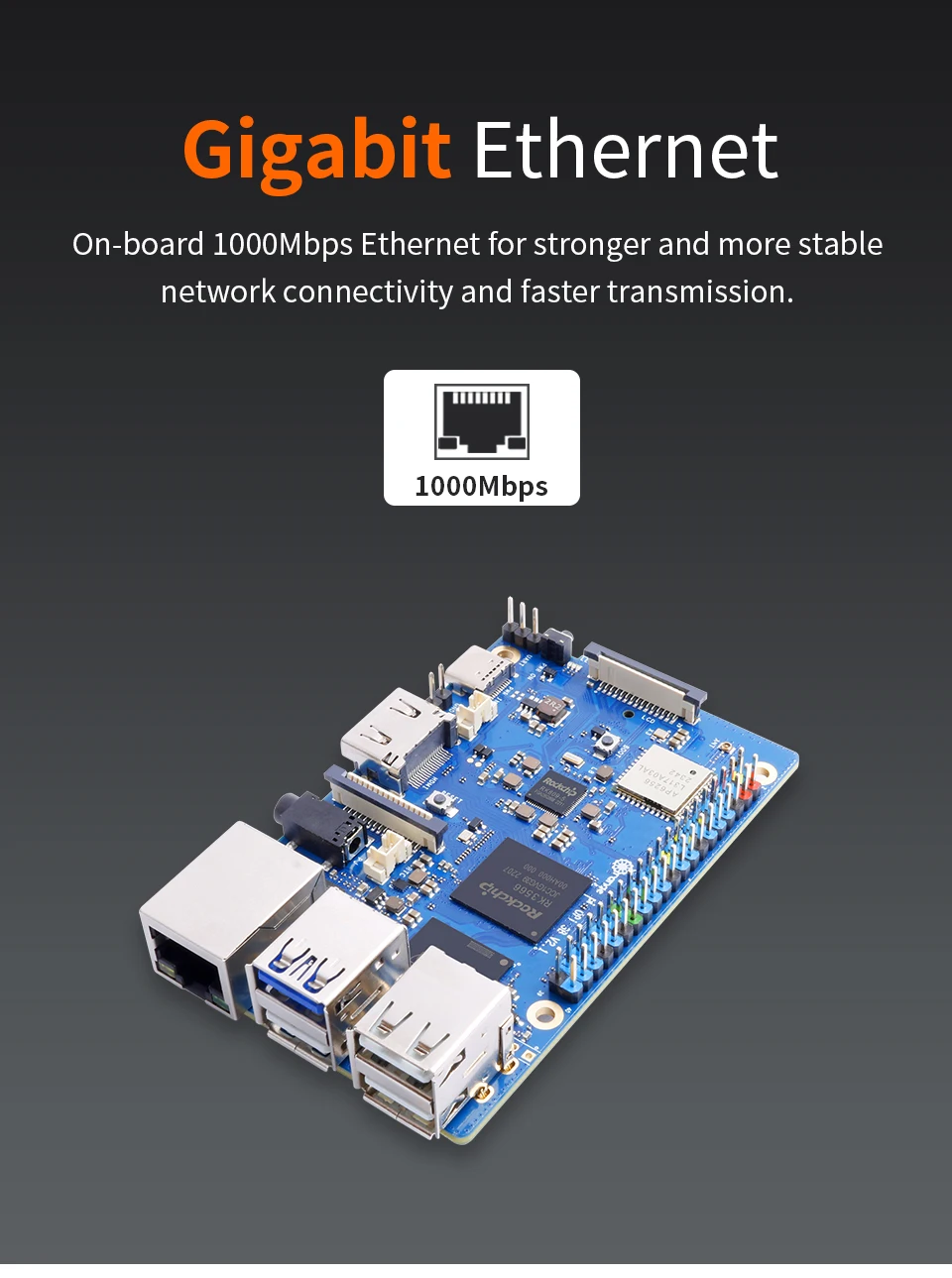

Ethernet: 10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C)

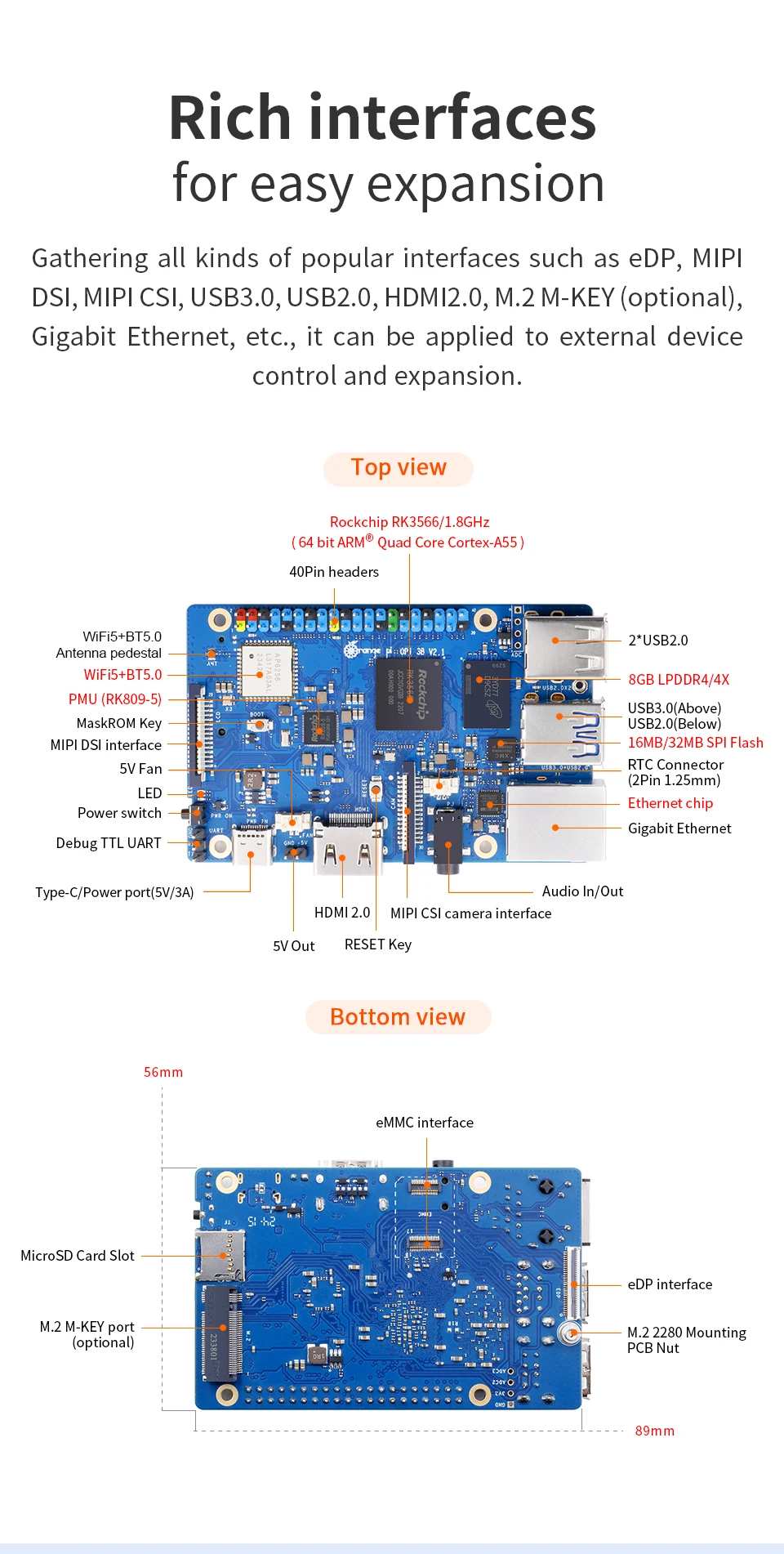

Video Output: 1* HDMI TX 2.0 , up to 4K@60fps;1*MIPI DSI 2 lane;eDP1.3
Camera: 1*MIPI CSI 2 lane camera interface
USB: 1*USB 2.0 support Device or HOST mode;1*USB 3.0 HOST;*USB 2.0 HOST
Audio: 3.5mm headphone jack audio in/out
Button: 1* MaskROM key, 1* RESET key, 1 *POWER key
FAN: 2Pin 1.25mm size 5V fan connector
RTC: 2Pin 1.25mm size battery backup connector

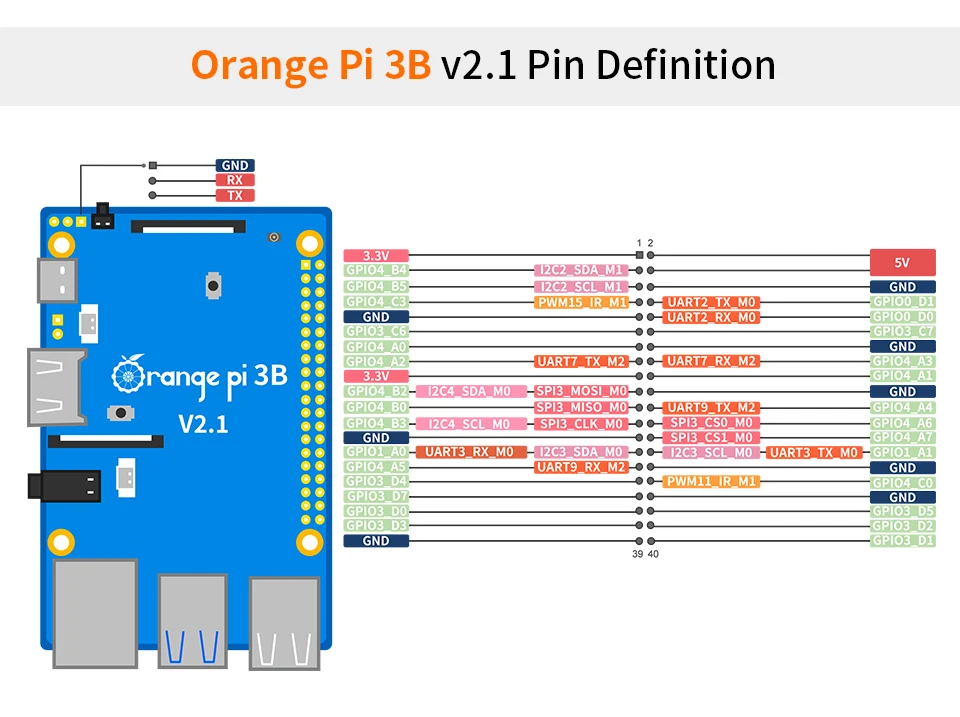

40Pin: 40Pin functional expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWM
Power Source: Type-C 5V3A
Supported: Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
PCB Dimension: 85mm x 56mm x 17mm
Weight: 49g
Choice: yes
semi_Choice: yes

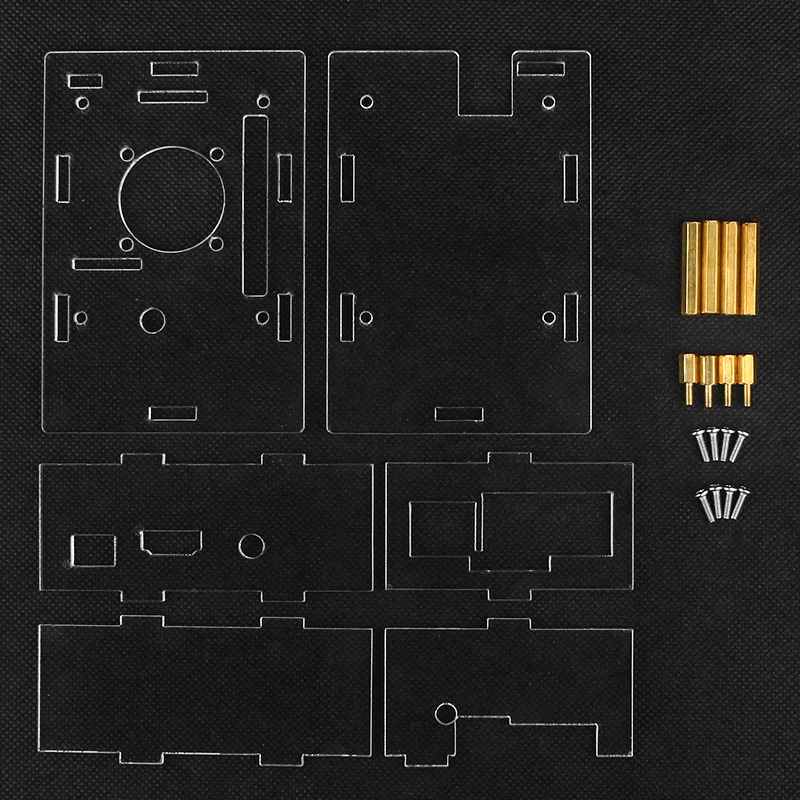

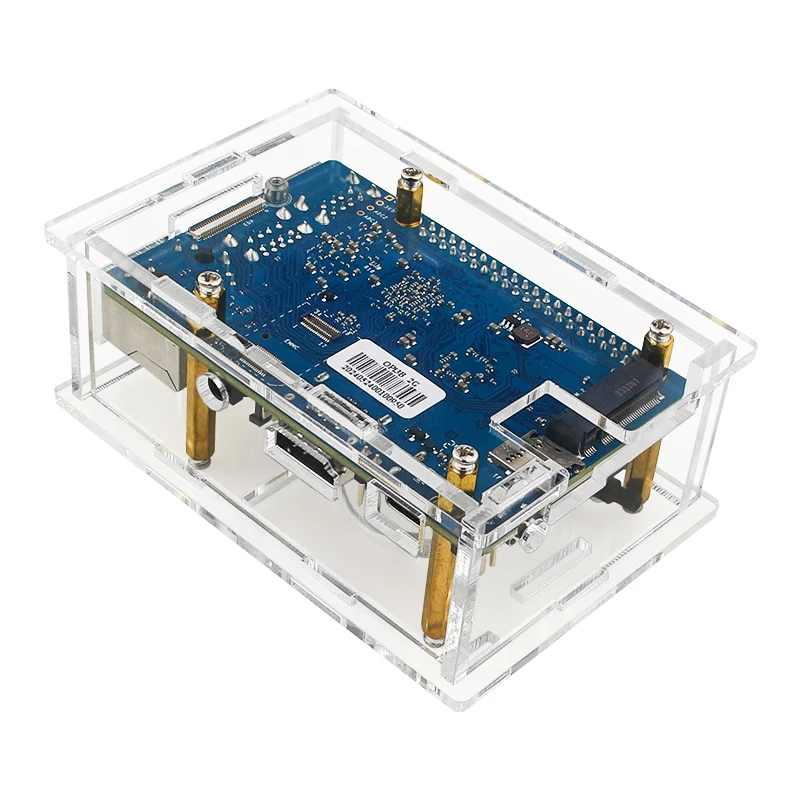

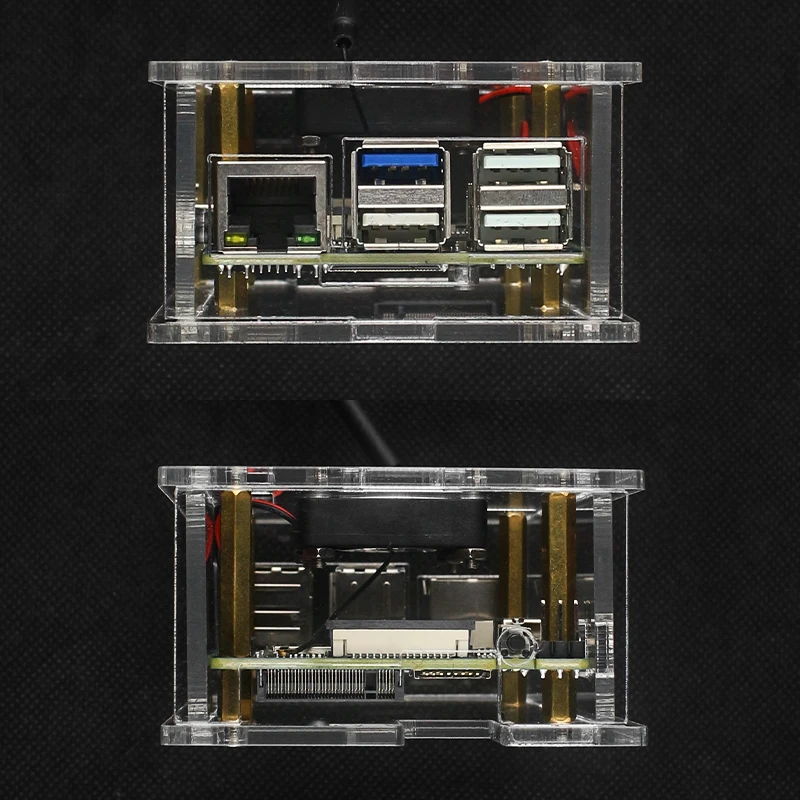

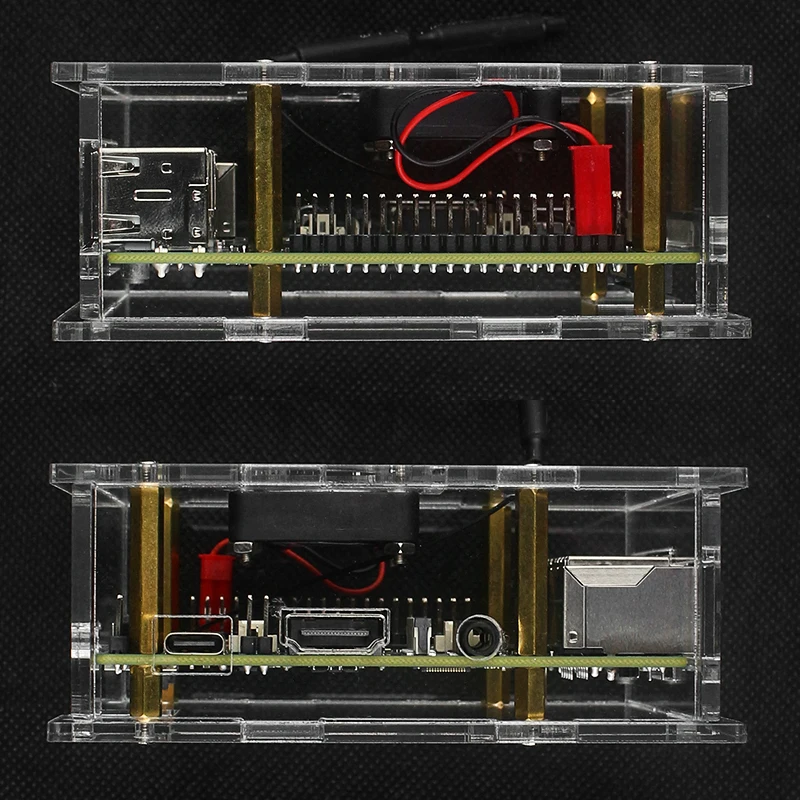

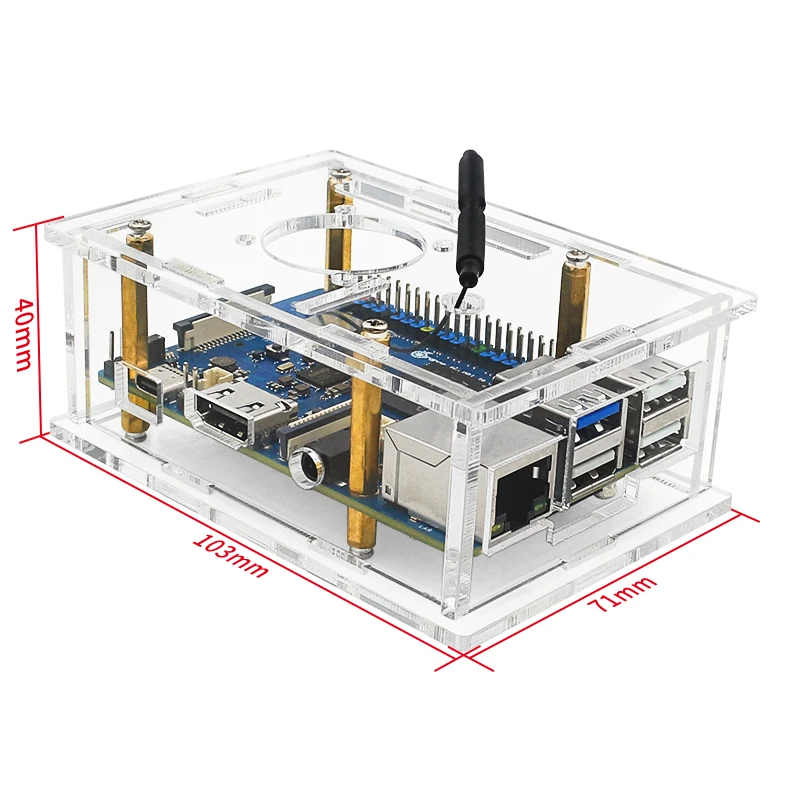

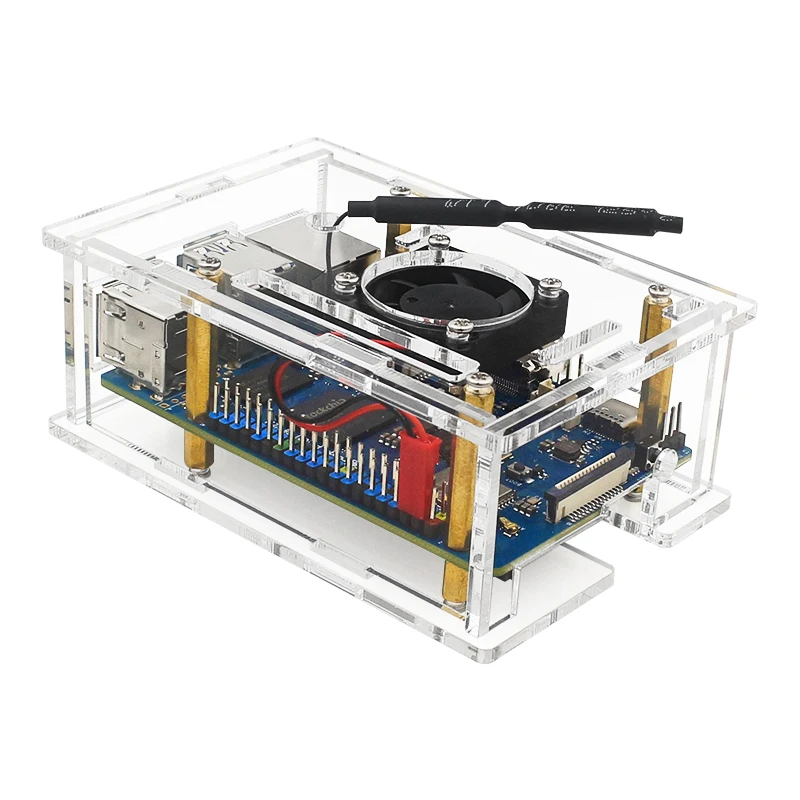

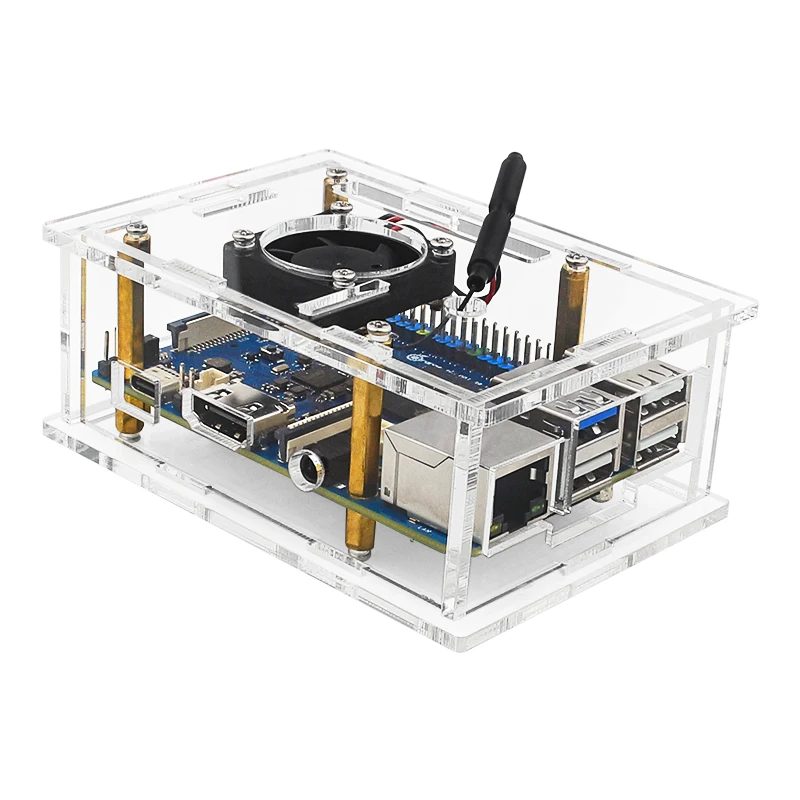

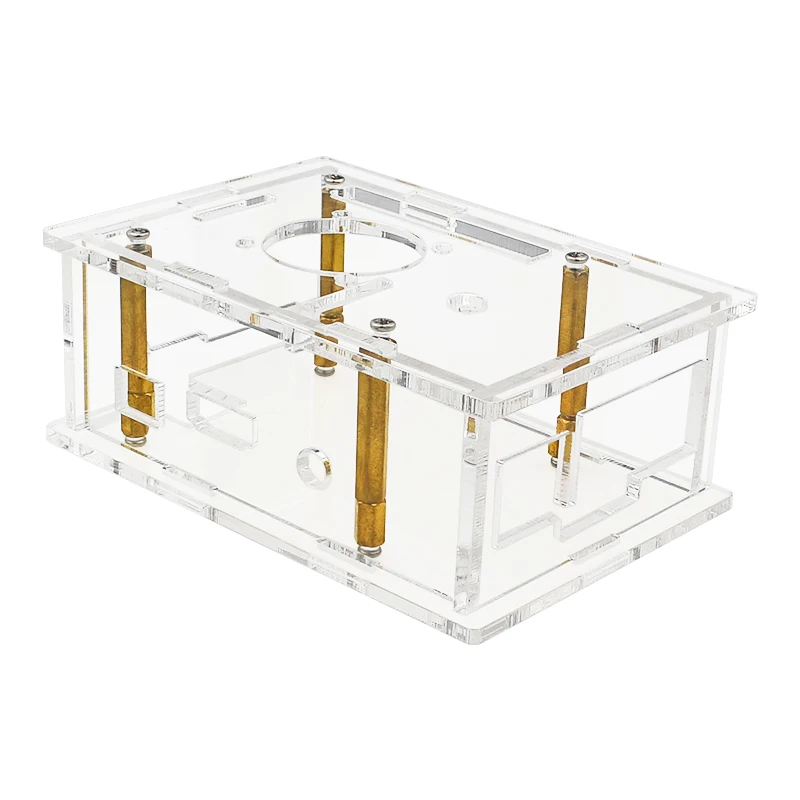

Acrylic Case

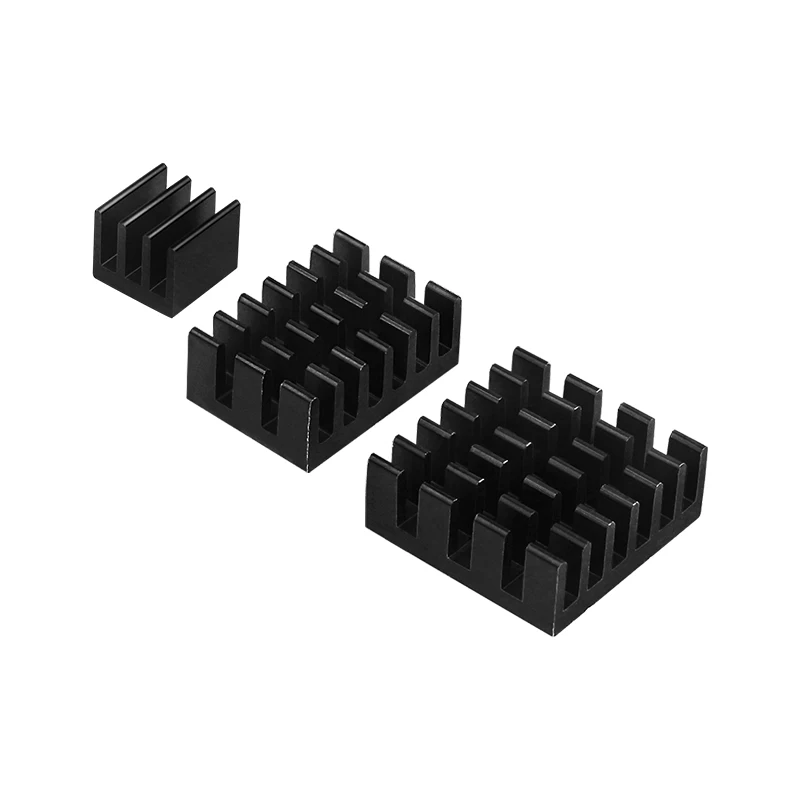

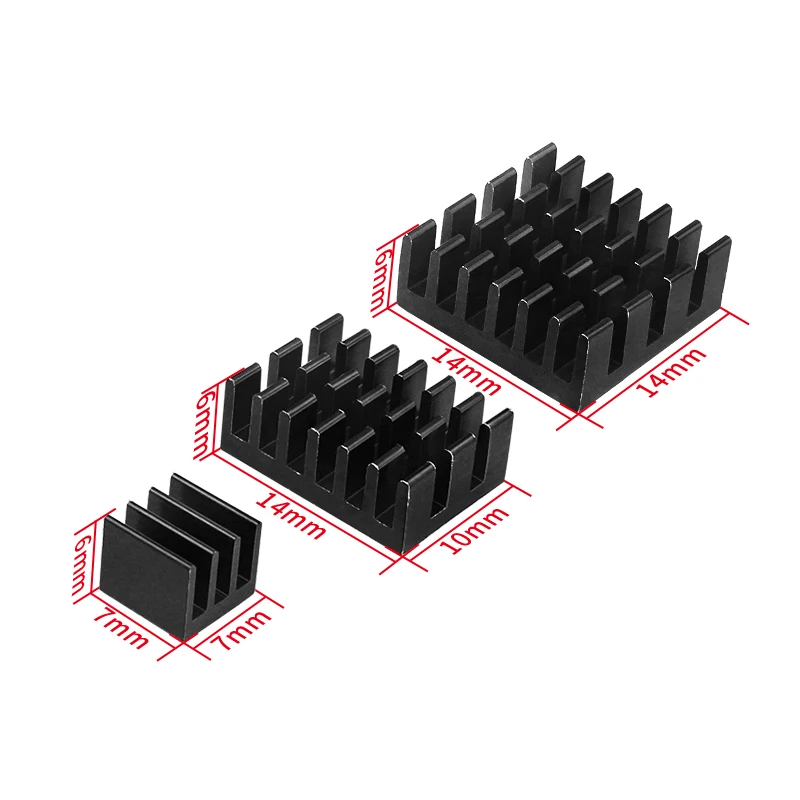

Aluminum Heatsinks

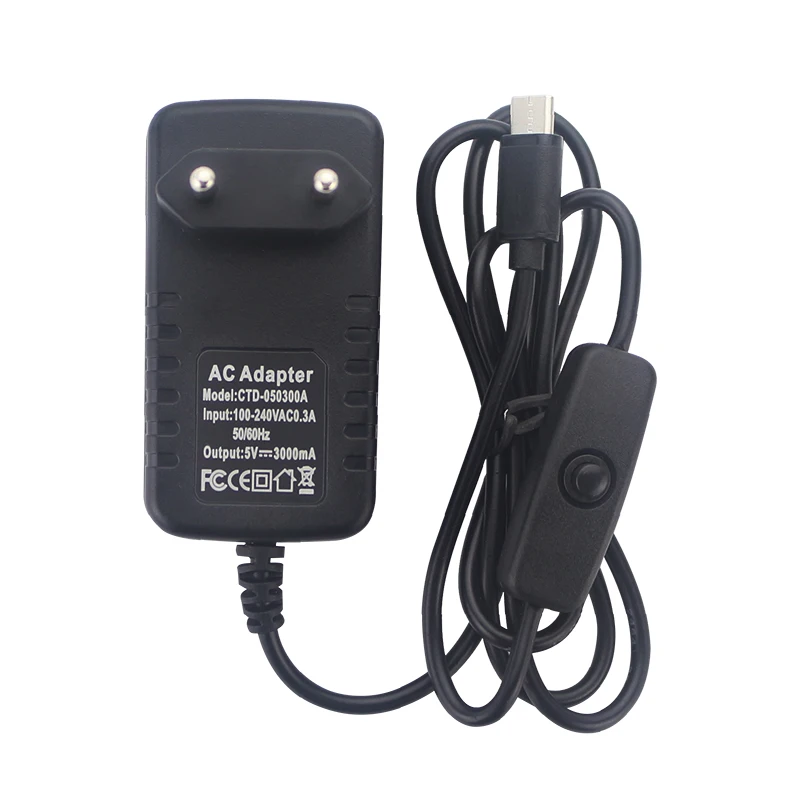

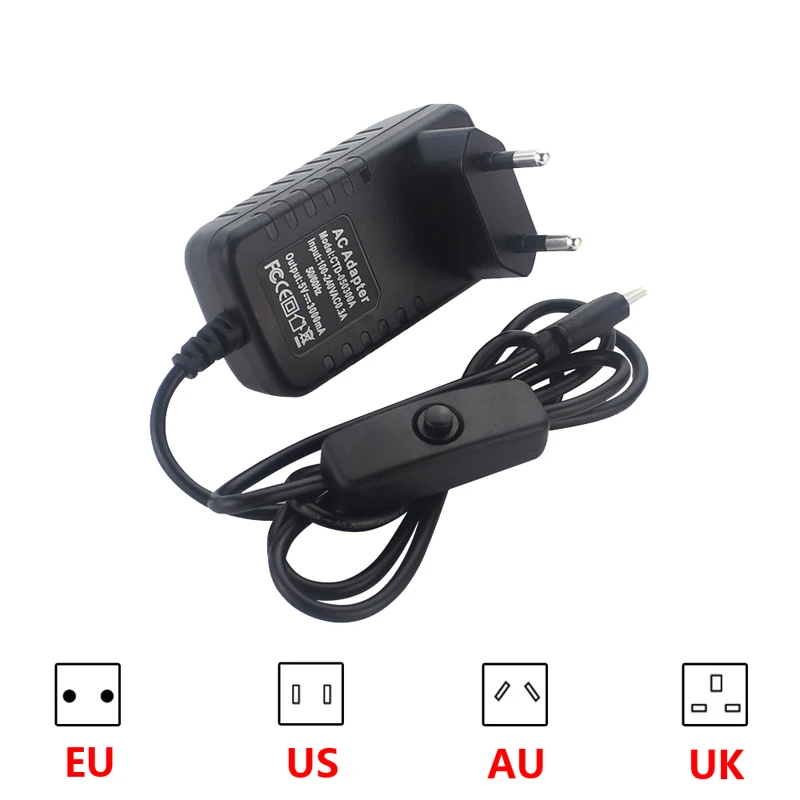

5V 3A Power Supply
Optional EU / US / UK / AU Plug

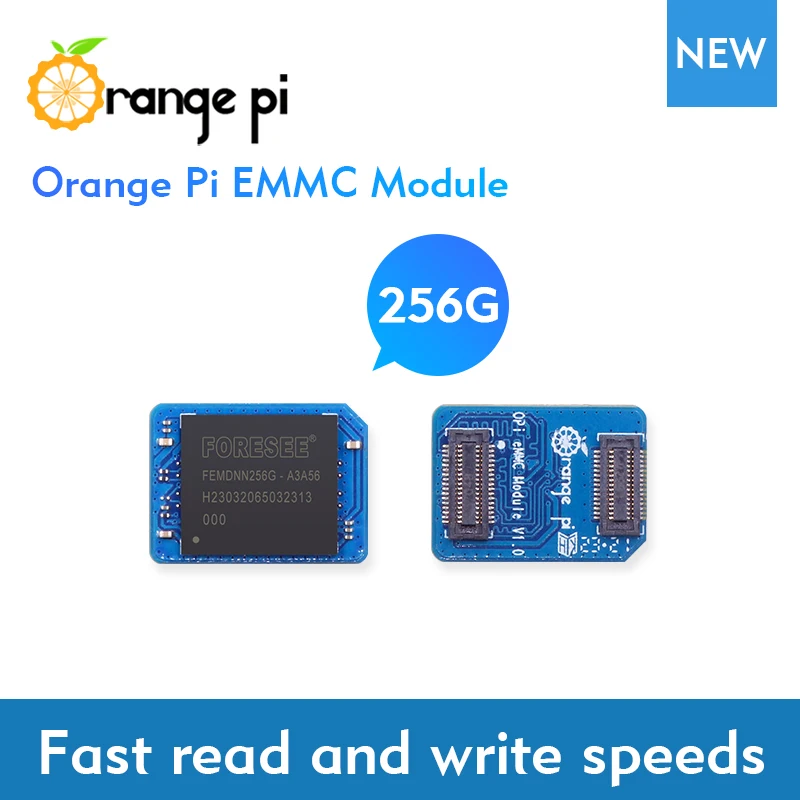

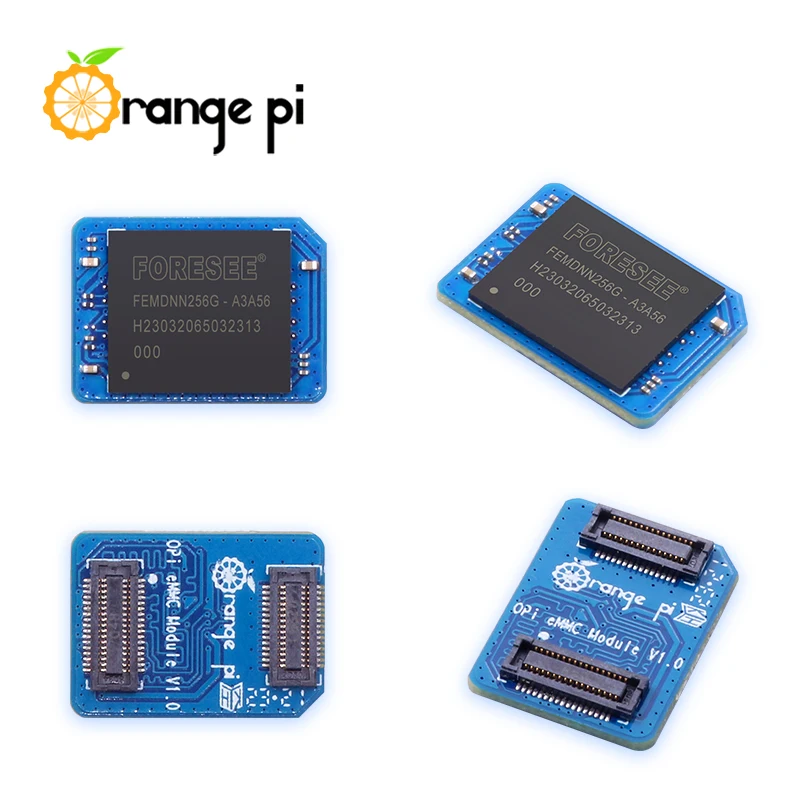

Orange Pi eMMC Module
Other Accessories
Packing List

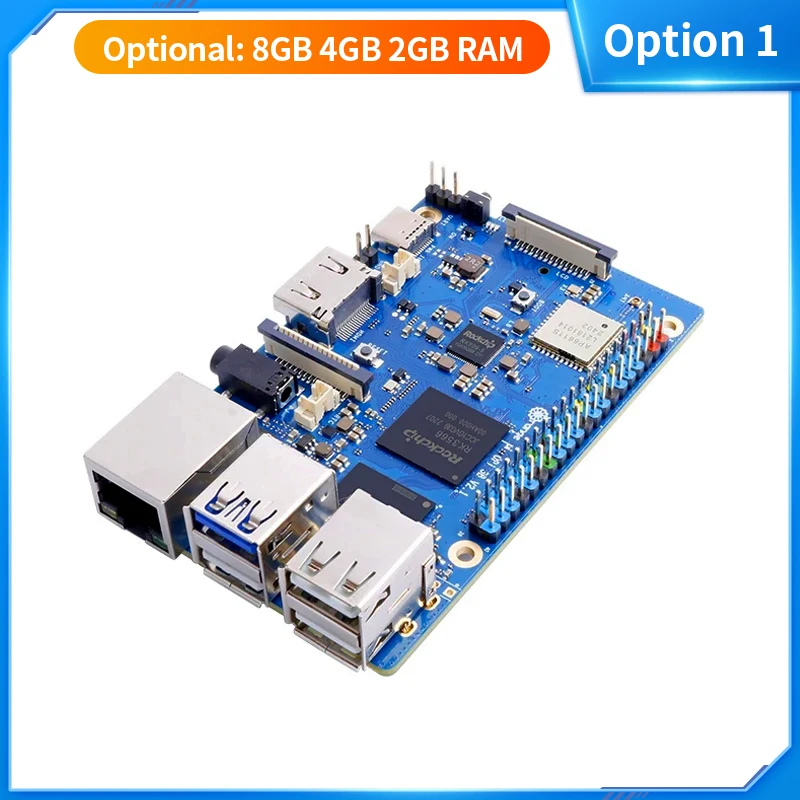

Option 1：
1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）
Option 2：
1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）
1 x 32GB eMMC Module

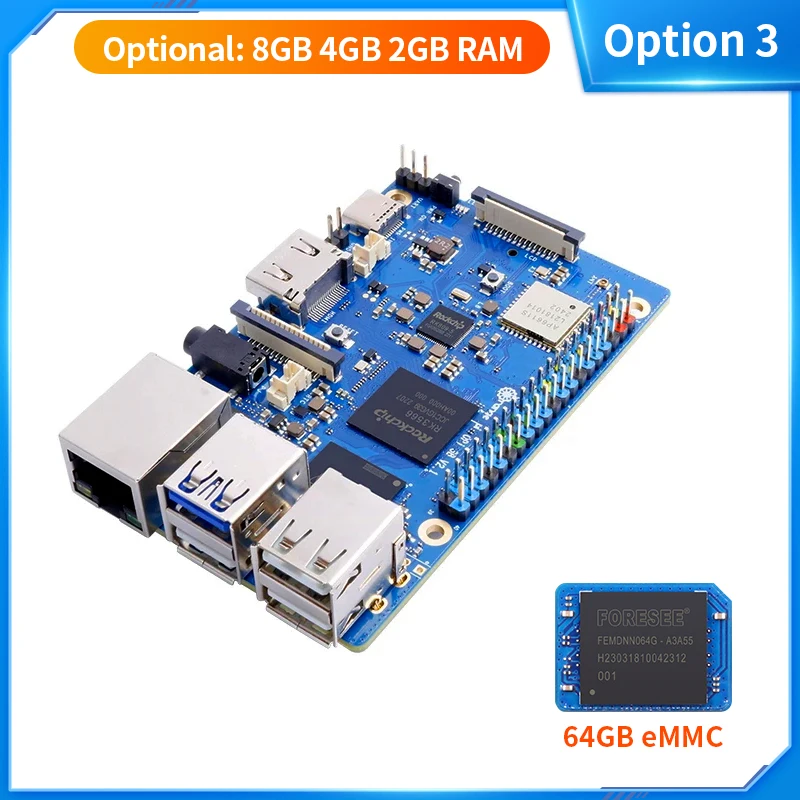

Option 3：
1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）
1 x 64GB eMMC Module
Option 4：
1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）
1 x 256GB eMMC Module

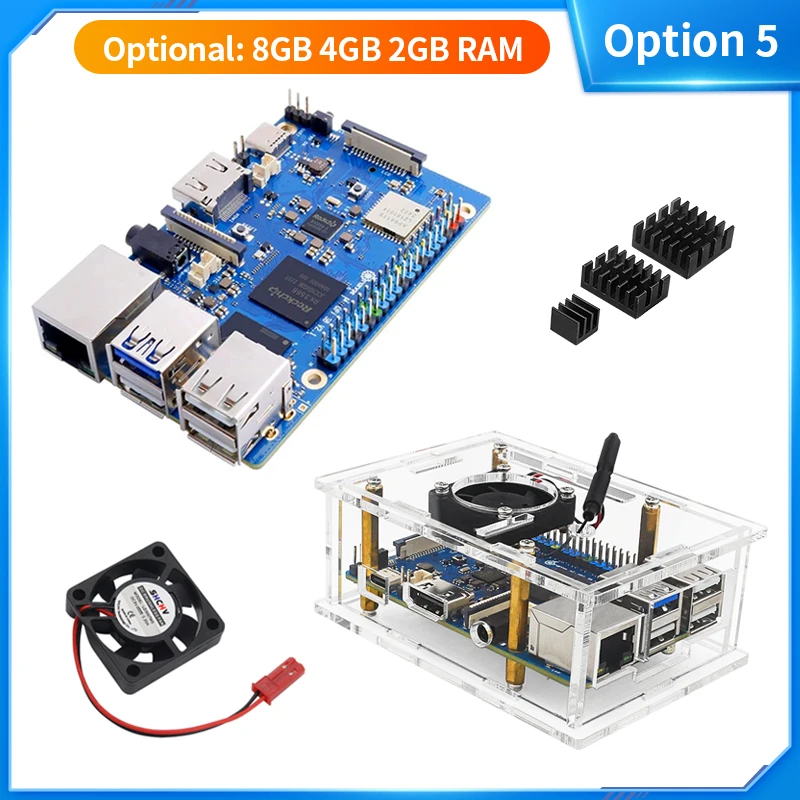

Option 5：
1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）
1 x Acrylic Case

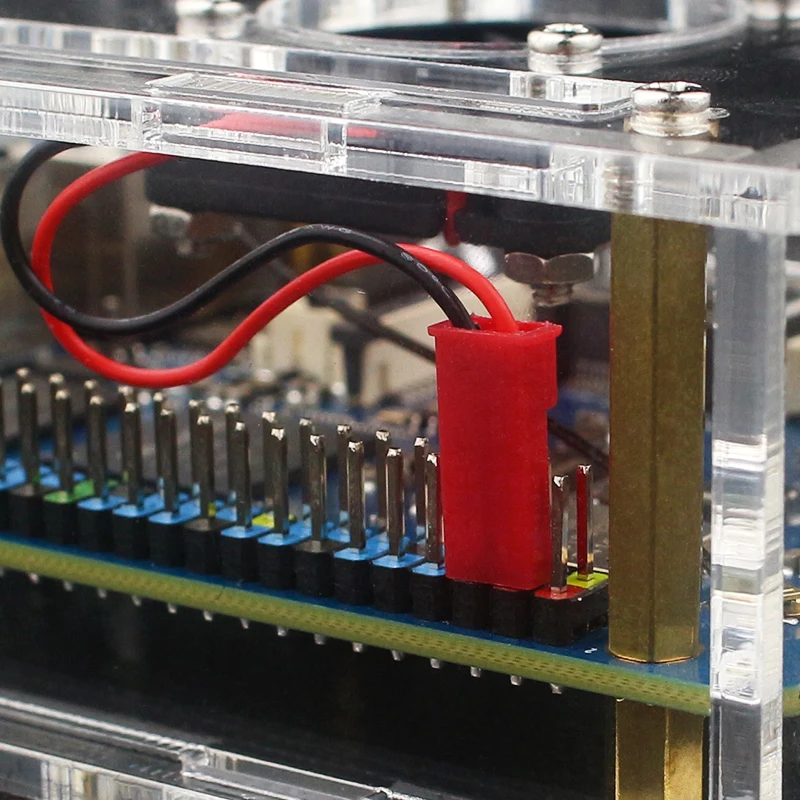

1 x Cooling Fan
3 x Aluminum Heatinks

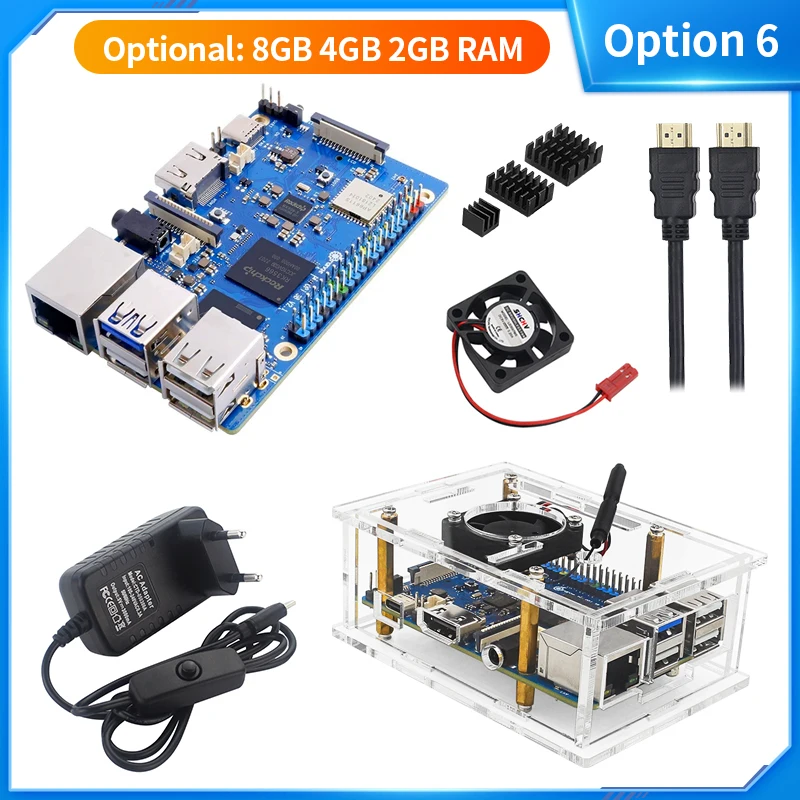

Option 6：
1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）
1 x Acrylic Case
1 x Cooling Fan
3 x Aluminum Heatinks
1 x 5V 3A Type-C Power Supply

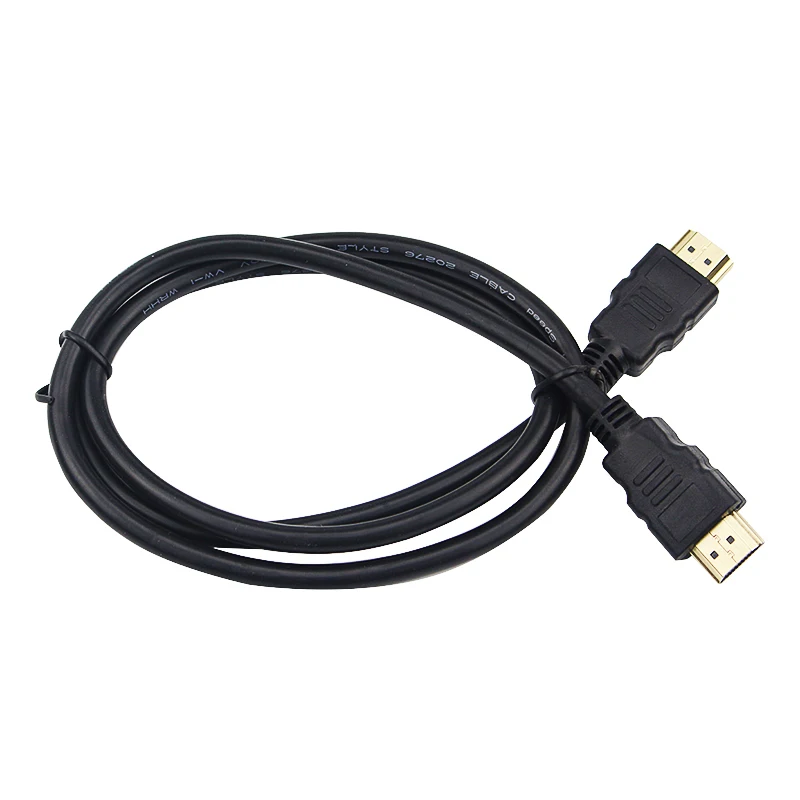

1 x 1M HDMI-compatible Cable

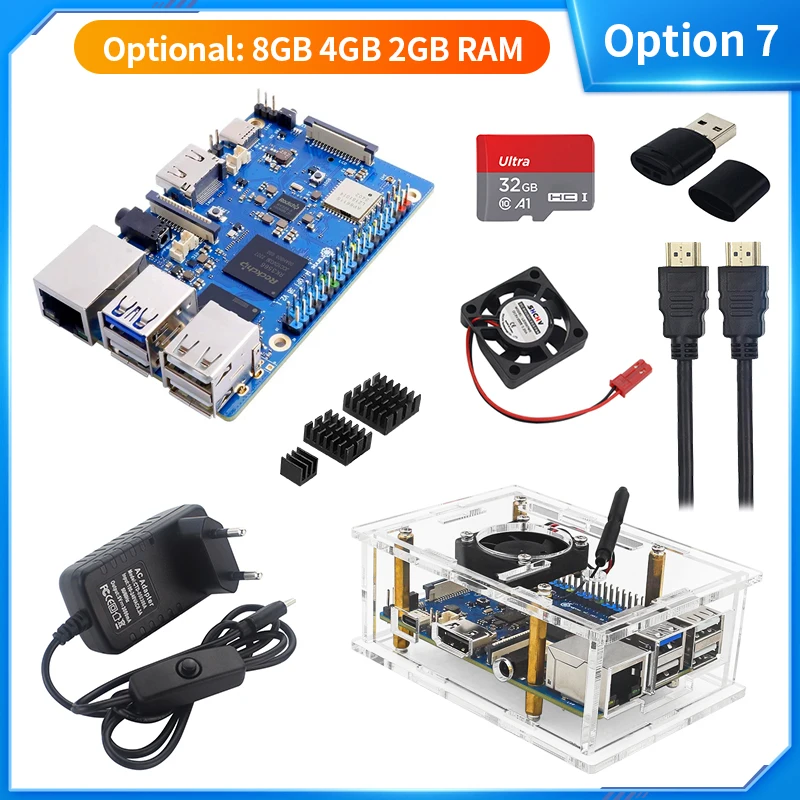

Option 7：
1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）
1 x Acrylic Case
1 x Cooling Fan
3 x Aluminum Heatinks
1 x 5V 3A Type-C Power Supply
1 x 1M HDMI-compatible Cable

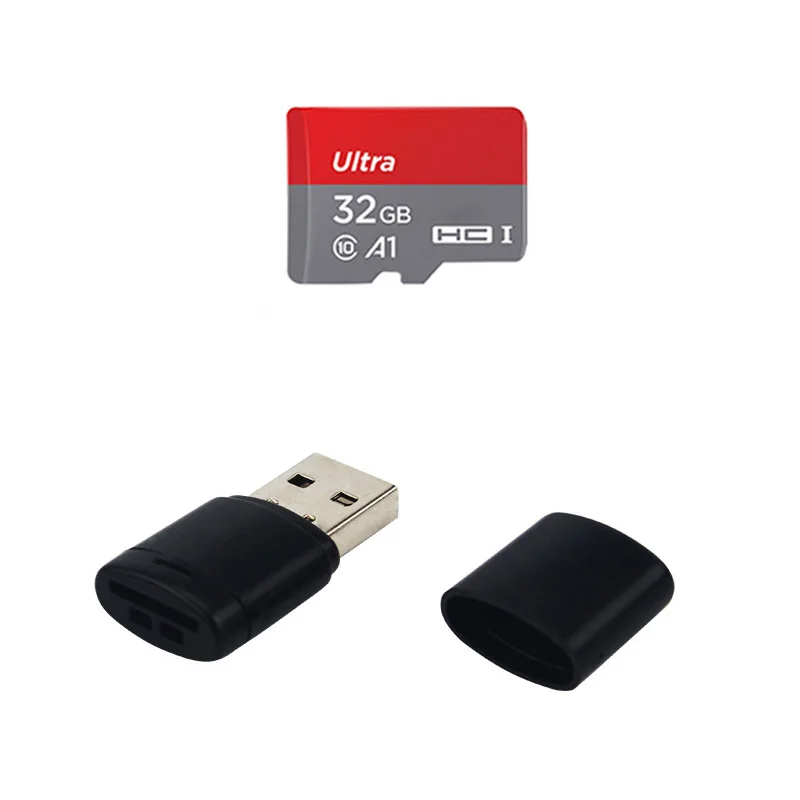

1 x 32GB Micro SD-compatible Card
1 x Card Reader
Option 8：
1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）
1 x Acrylic Case
1 x Cooling Fan
3 x Aluminum Heatinks
1 x 5V 3A Type-C Power Supply
1 x 1M HDMI-compatible Cable
1 x 32GB Micro SD-compatible Card
1 x Card Reader
1 x 32GB eMMC Module

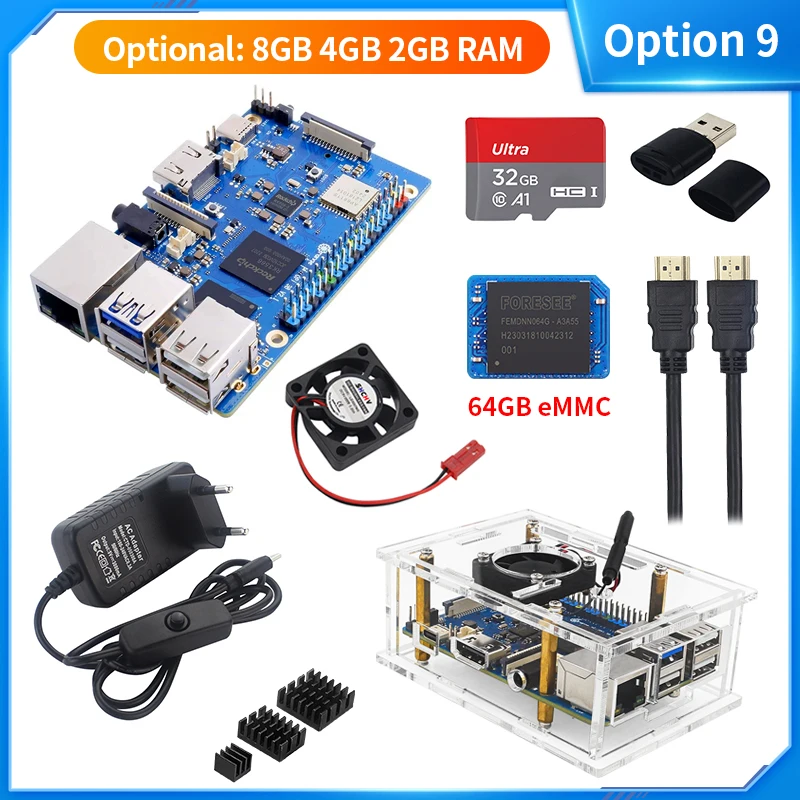

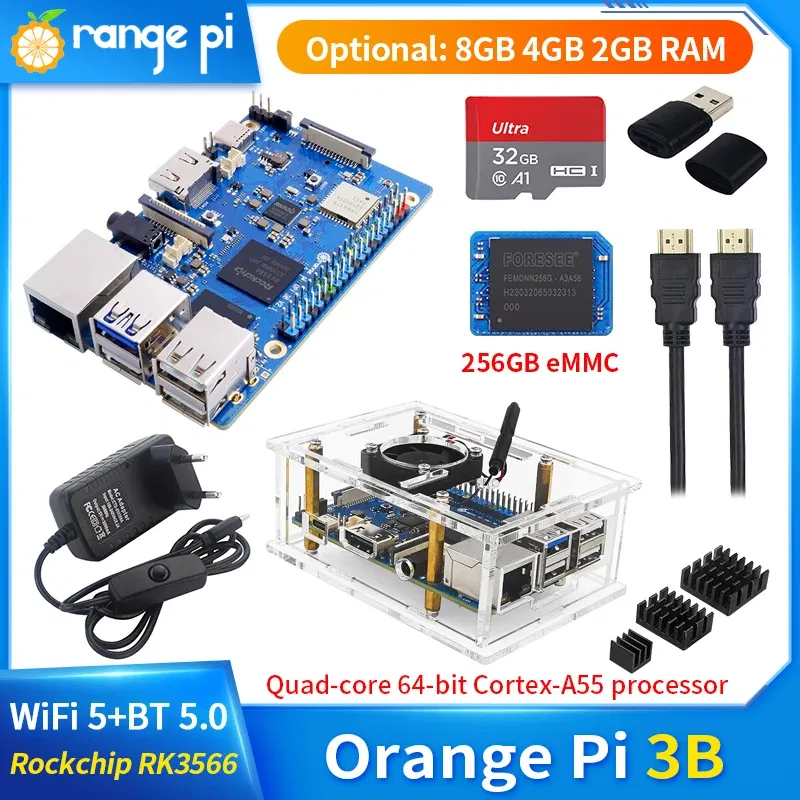

Option 9：
1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）
1 x Acrylic Case
1 x Cooling Fan
3 x Aluminum Heatinks
1 x 5V 3A Type-C Power Supply
1 x 1M HDMI-compatible Cable
1 x 32GB Micro SD-compatible Card
1 x Card Reader
1 x 64GB eMMC Module
Option 10：
1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）
1 x Acrylic Case
1 x Cooling Fan
3 x Aluminum Heatinks
1 x 5V 3A Type-C Power Supply
1 x 1M HDMI-compatible Cable
1 x 32GB Micro SD-compatible Card
1 x Card Reader
1 x 256GB eMMC Module
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
