As the rapid development of the Internet grows, various intelligent devices are gradually integrated into our daily life.

For example, we can use RFID to open the door. In addition, the kitchen is equipped with a gas detection alarm, which alerts people to the danger when dangerous gas and large smoke are detected.

When it detects rain, it can automatically collect clothes and close windows. All kinds of electrical equipment can be controlled by mobile phone, control lights, fans, air conditioning and so on.

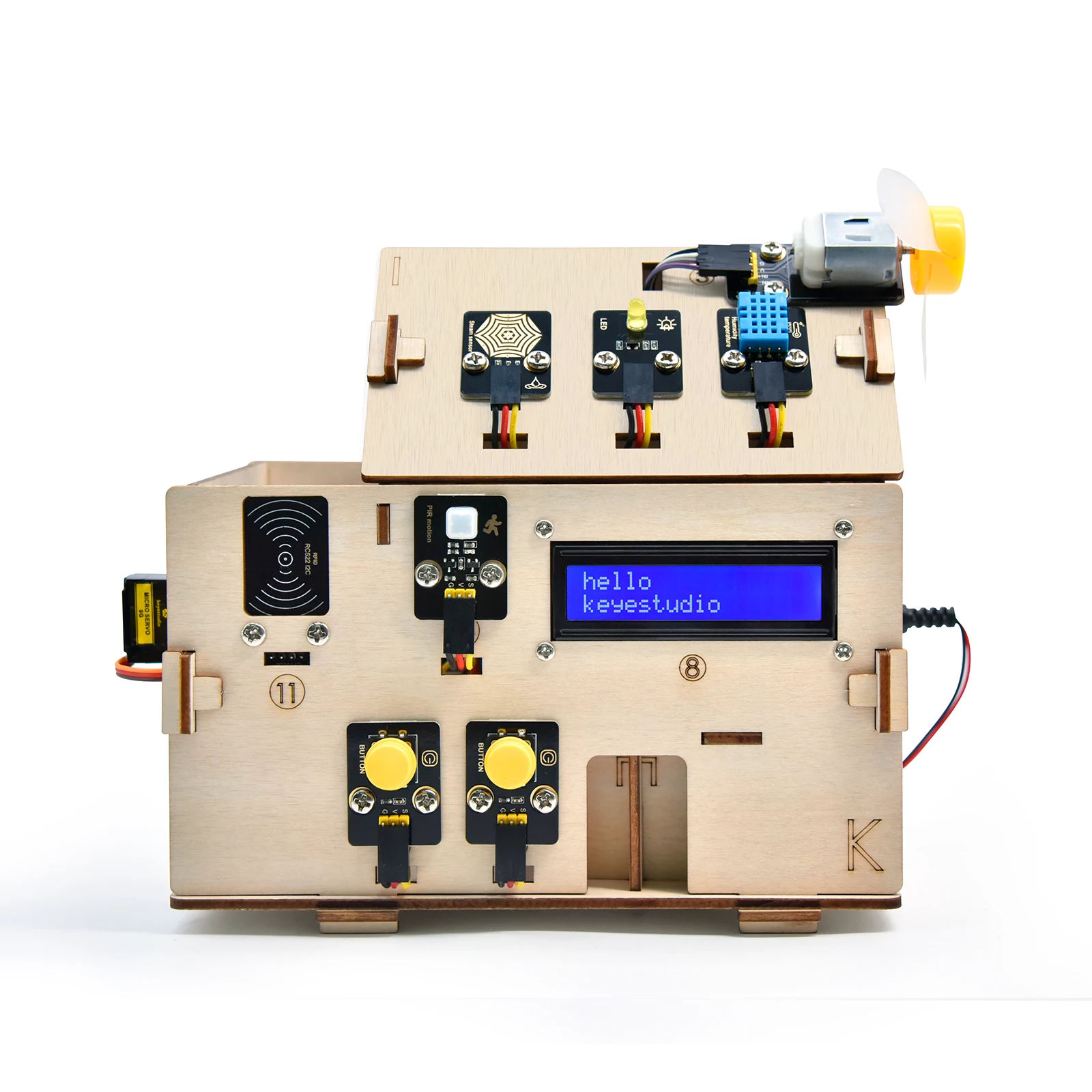

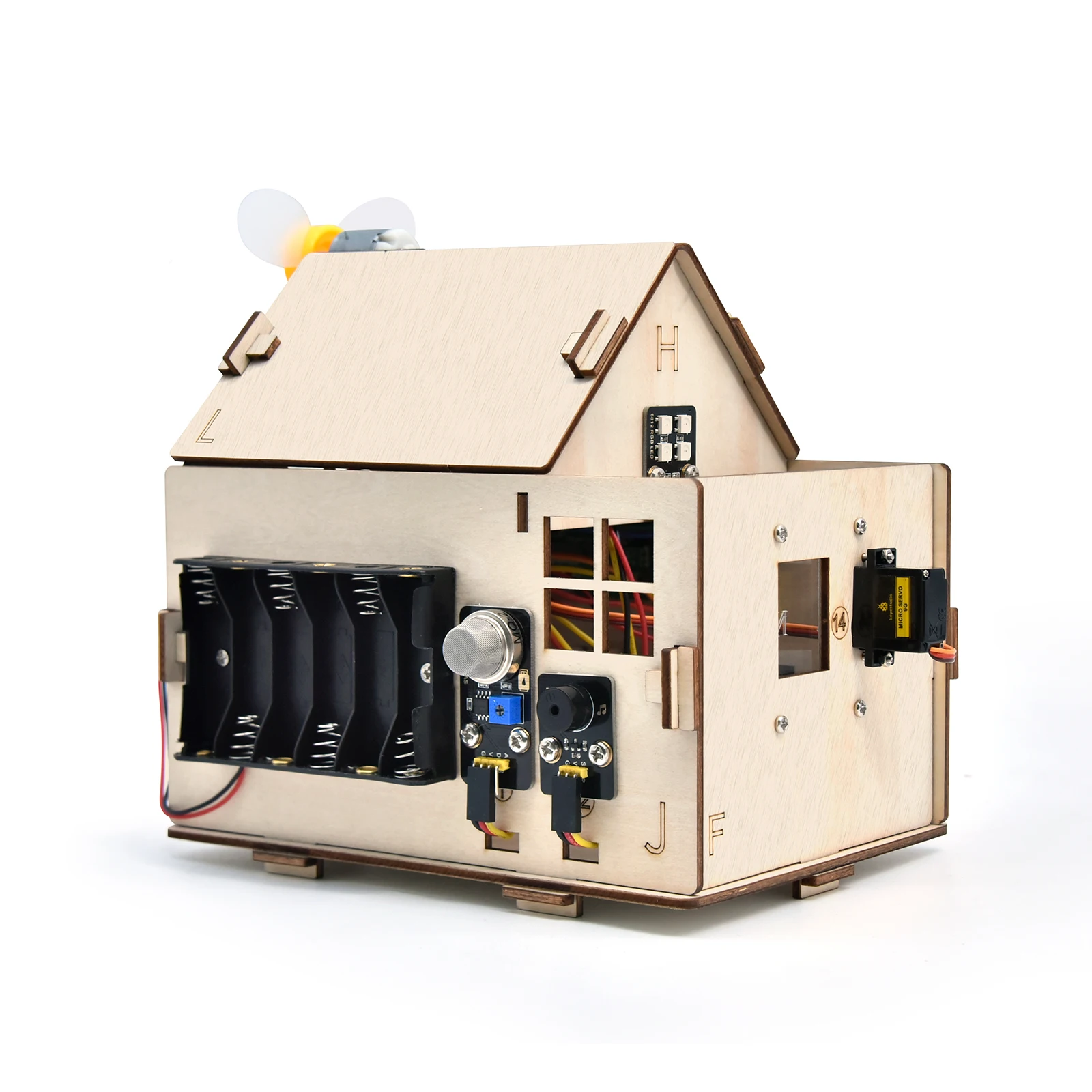

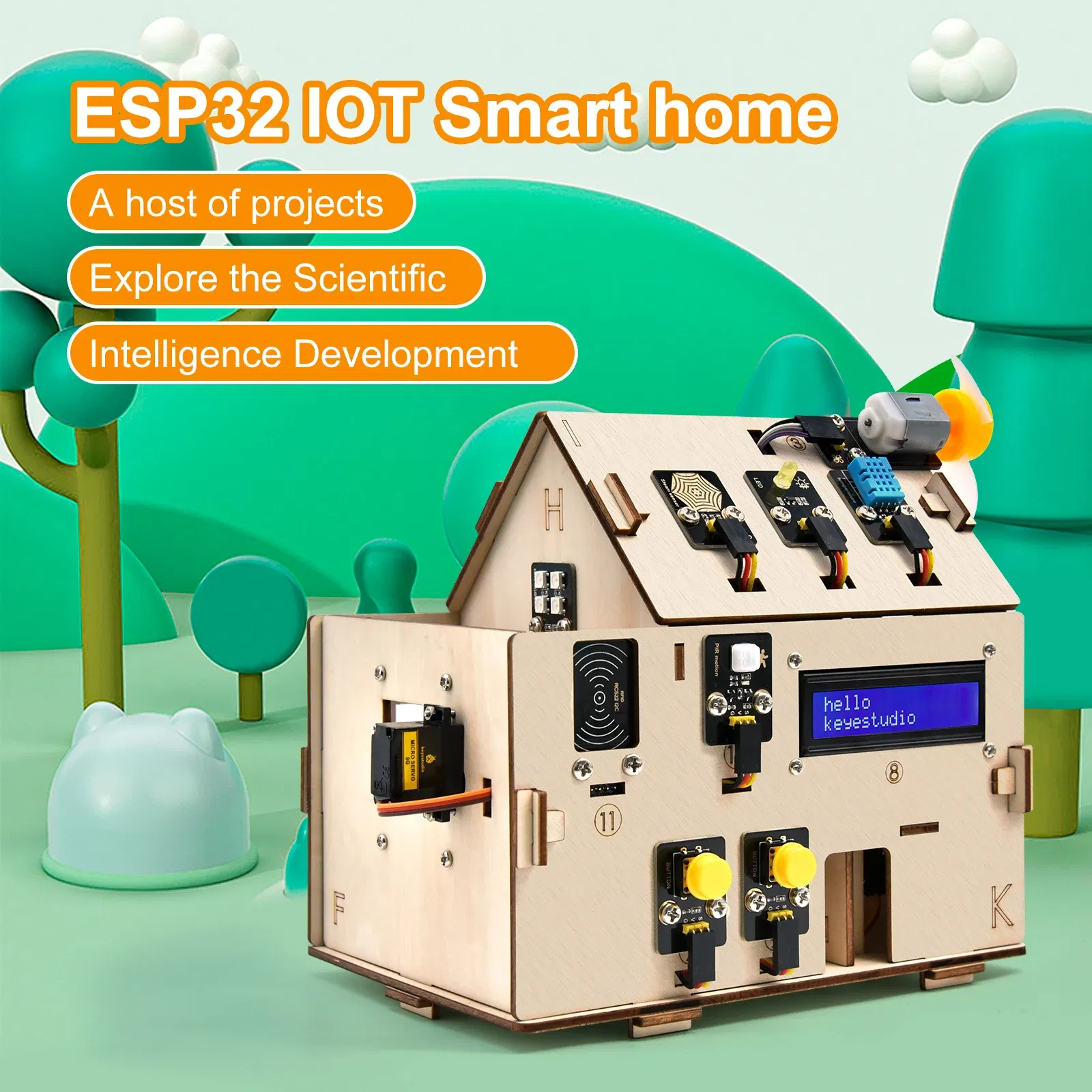

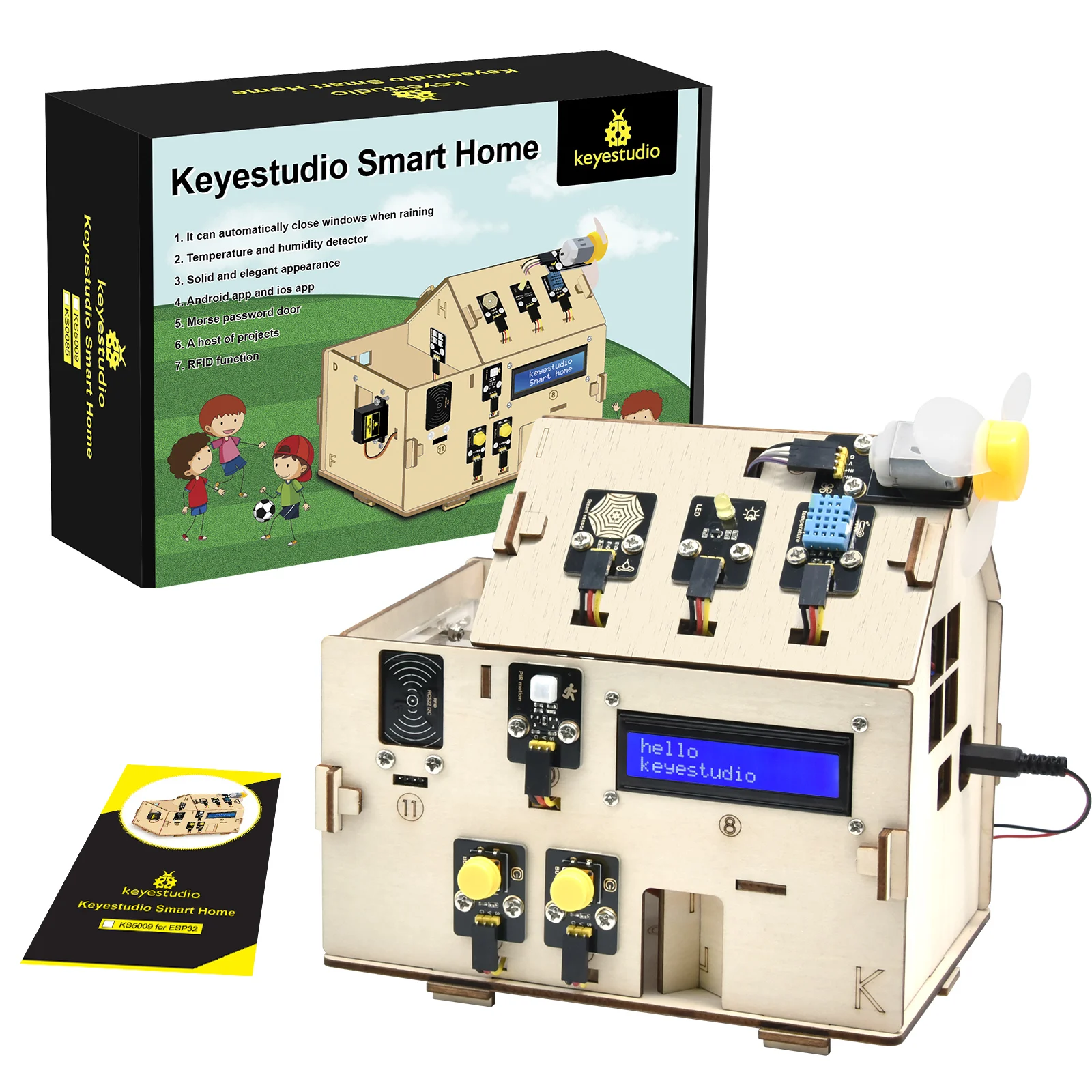

In this connection, we seek to launch this smart home product with ESP32 control, which has a host of sensors and modules as well as networking function, making the relevant knowledge of the Internet more accessible to you.

Features

1.Elegant appearance

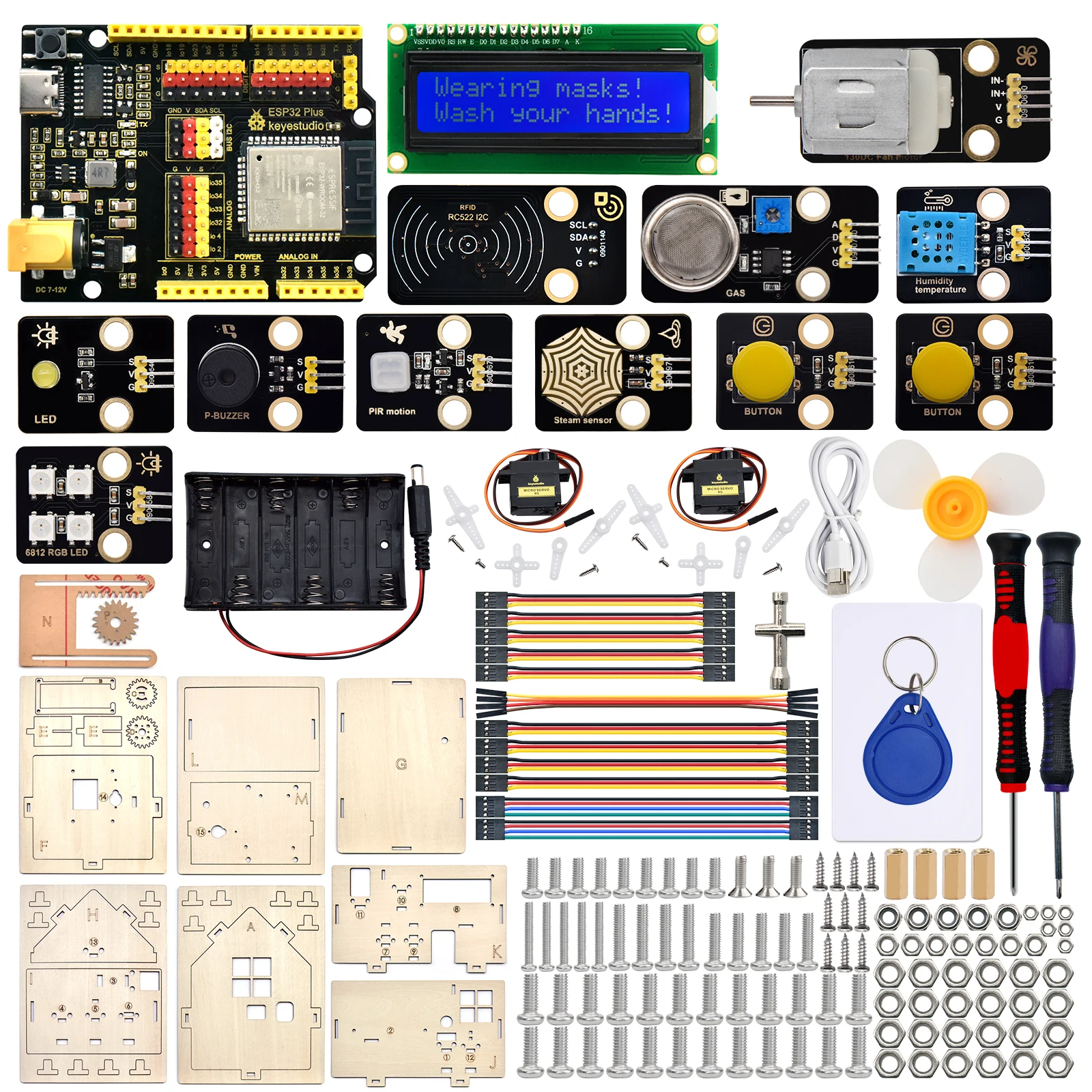

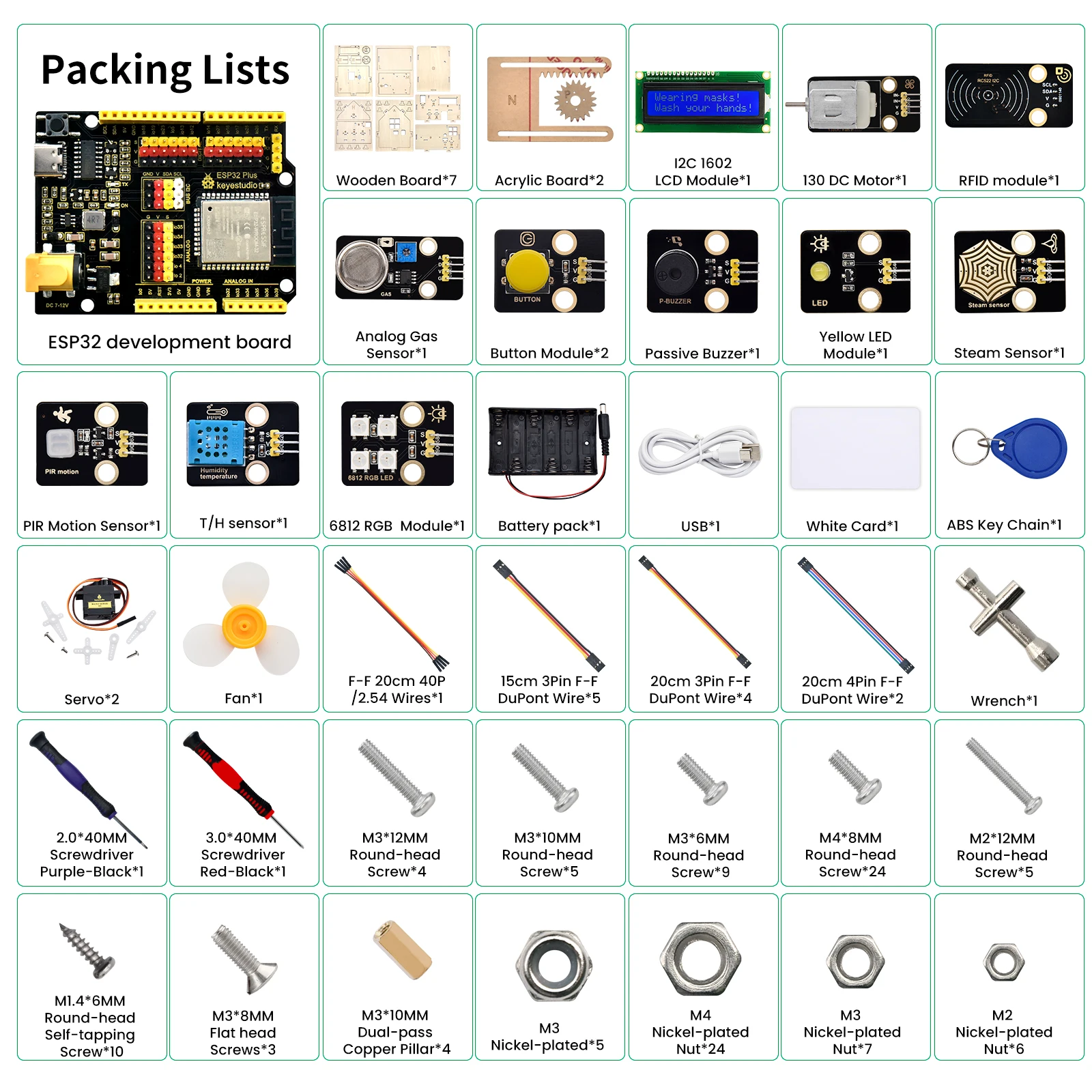

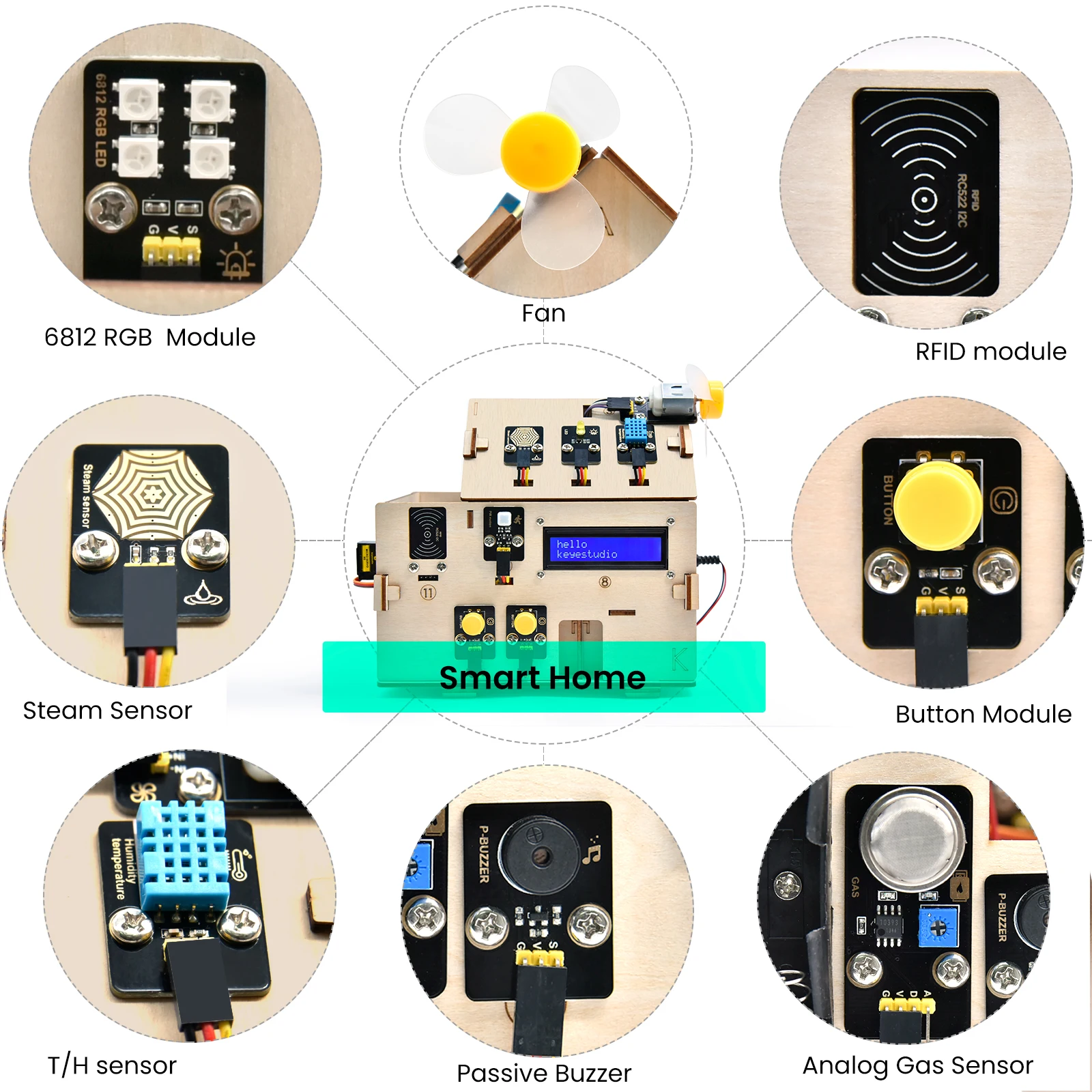

2.A host of sensor modules

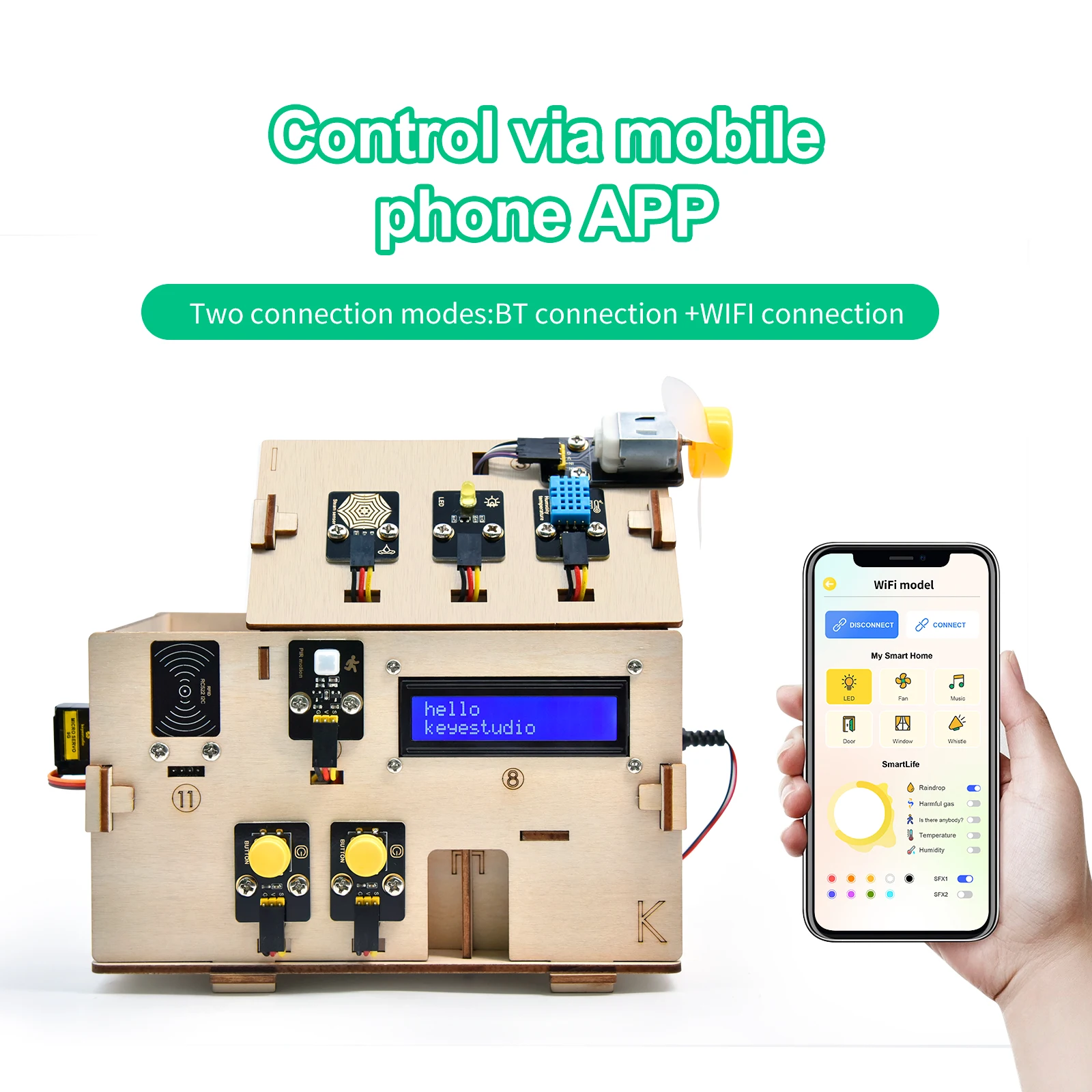

3.Mobile phone APP network control

4.Morse password door

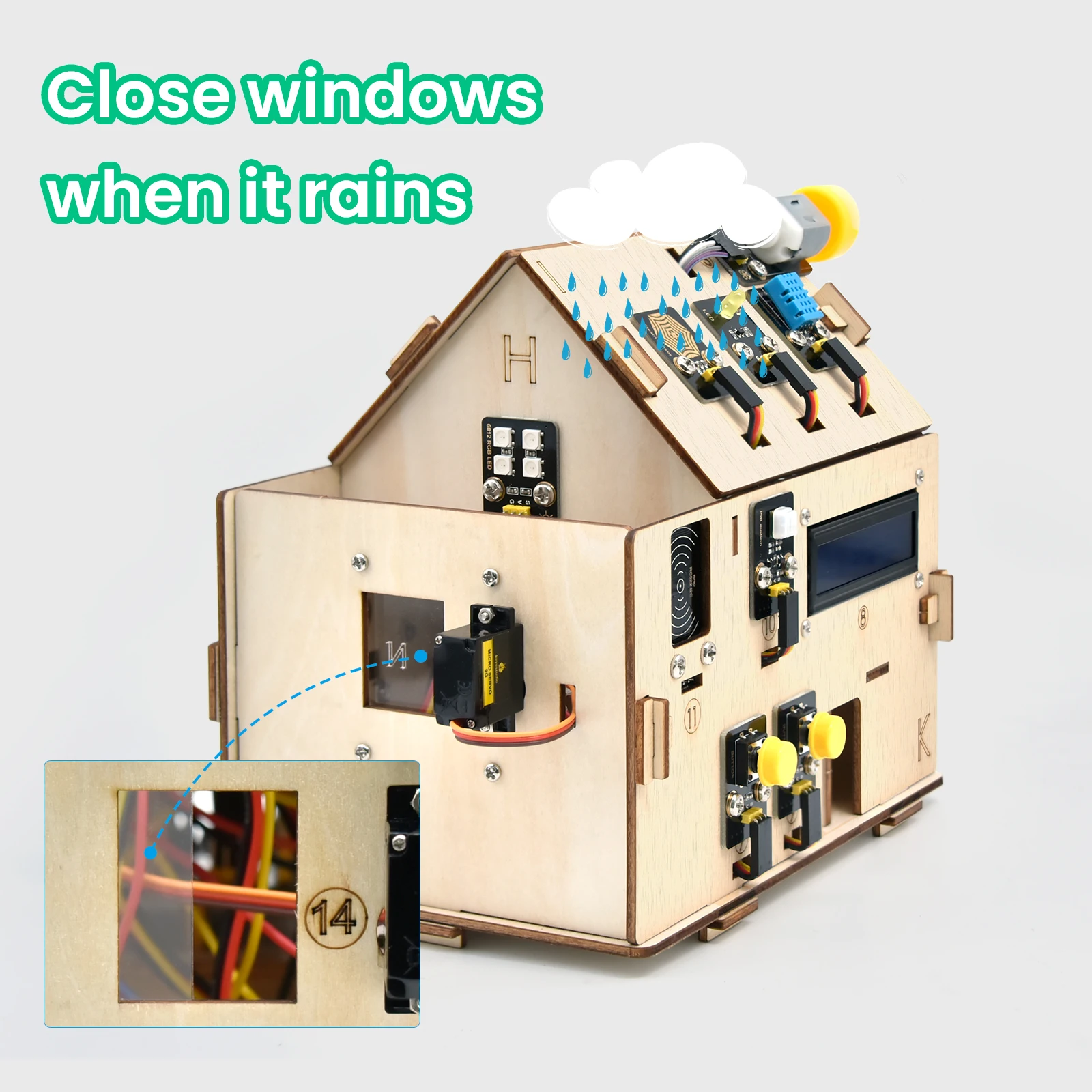

5.It can automatically close windows

6.RFID function

7.C language and MicroPython

Projects

Project 1: Control LED
Project 1.1 LED Flashing
Project 1.2 Breathing LED
Project 2: Table Lamp
Project 2.1 Read the Button
Project 2.2. Table Lamp
Project 3: PIR Motion Sensor
Project 3.1 Read the PIR Motion Sensor
Project 3.2 PIR Motion Sensor
Project 4: Play Music
Project 4.1 Play Happy Birthday
Project 4.2 Music Box
Project 5: Automatic Doors and Windows
Project 5.1 Control the Door
Project 5.2 Close the Window

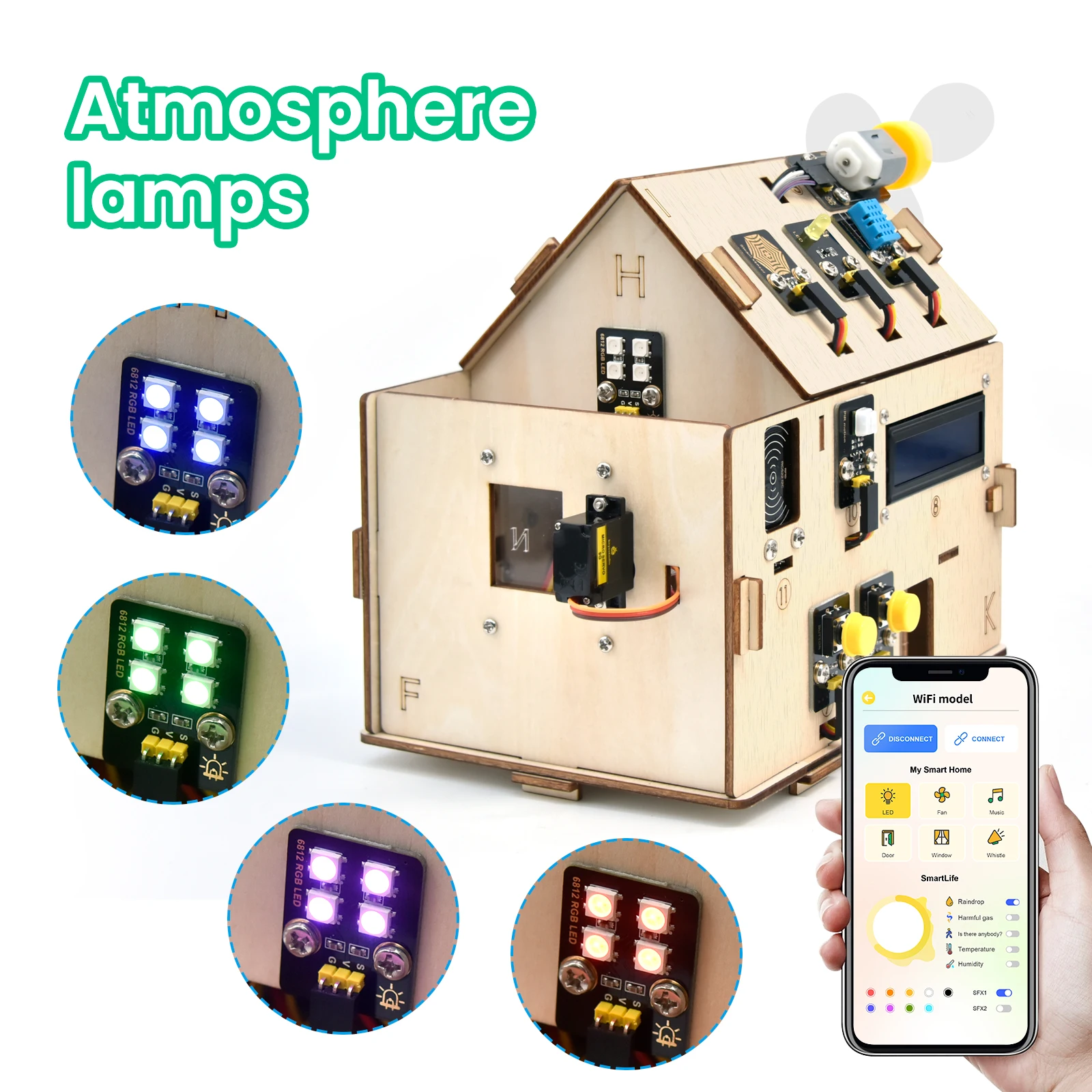

Project 6: Atmosphere Lamp
Project 6.1 Control SK6812
Project 6.2 Button
Project 7: Fan
Project 7.1 Control the Fan
Project 7.2 Switch On or Off the Fan
Project 8: LCD1602 Display
Project 8.1 Display Characters
Project 8.2 Dangerous Gas Alarm
Project 9: Temperature and Humidity Sensor
Project 9.1 Temperature and Humidity Tester
Project 10: RFID RC522 Module
Project 10.1 Open the Door
Project 11: Morse Code
Project 11.1 Morse Code Open the Door
Project 12: WiFi
Project 12.1 Smart Home
Project 12.2 Control Smart Home
Project 13: Mobile Phone APP
Project 13.1 Test APP
Project 13.2 IoT Smart Home

Resources

Download code, libraries and more details, please refer to the following link:https://docs.keyestudio.com/projects/KS5009/en/latest/docs/index.html
