System parameters

Memory

128 MB

Flash

32 MB

Operation system

Embedded Linux operation system

Display parameters

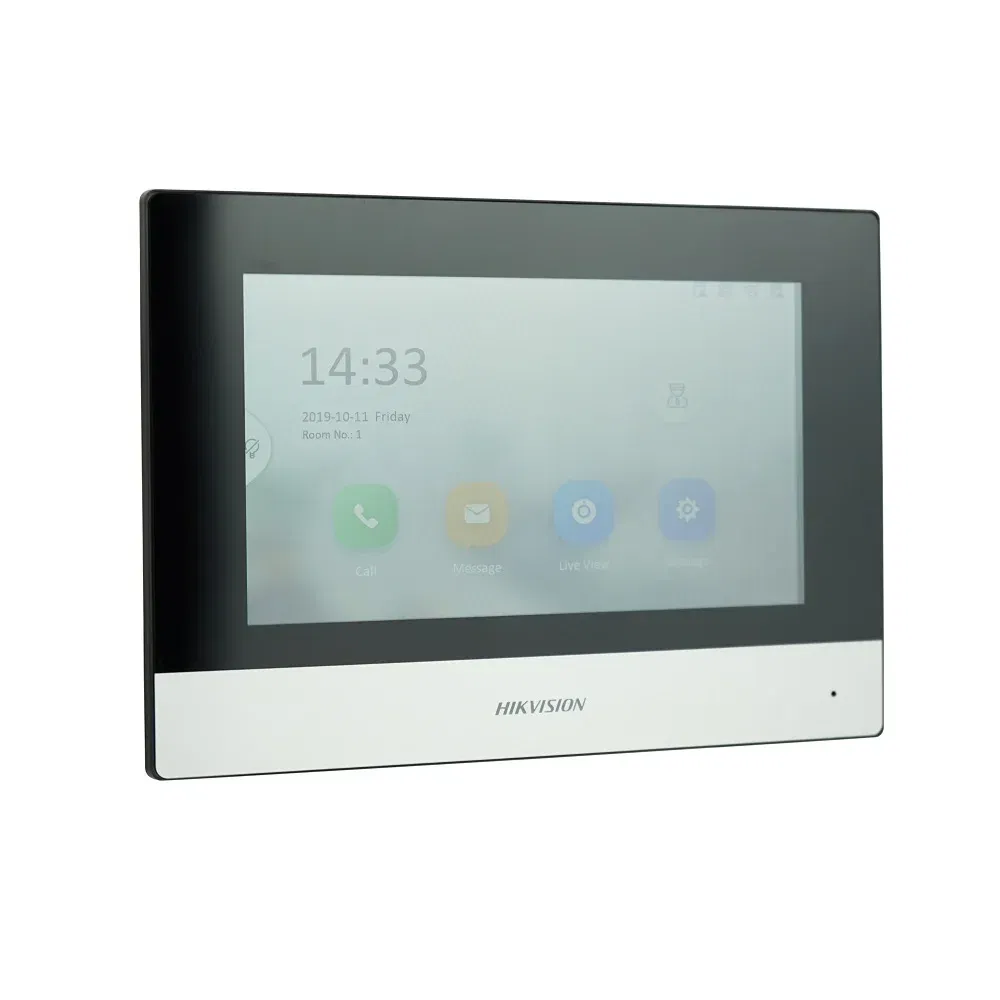

Display screen

7-inch colorful TFT screen

Display resolution

1024×600

Operation method

Capacitive touch screen

Audio parameters

Audio input

Built-in omnidirectional microphone

Audio output

Built-in loudspeaker

Audio compression standard

G.711 U

Audio compression rate

64 Kbps

Audio quality

Noise suppression and echo cancellation

Network parameters

Wired network

10/100 Mbps self-adaptive

Wireless

Wi-Fi 802.11 b/g/n

network

Network protocol

TCP/IP, SIP, RTSP

Network interface

1 RJ-45 10/100 Mbps self-adaptive

Alarm input

8-ch alarm inputs

Relay output

2

TF card

Max to 32 G, D 2.0 or lower version

RS485

1

General

Power supply

IEEE802.3af, standard PoE 12 VDC/1 A

Power consumption

≤ 6 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

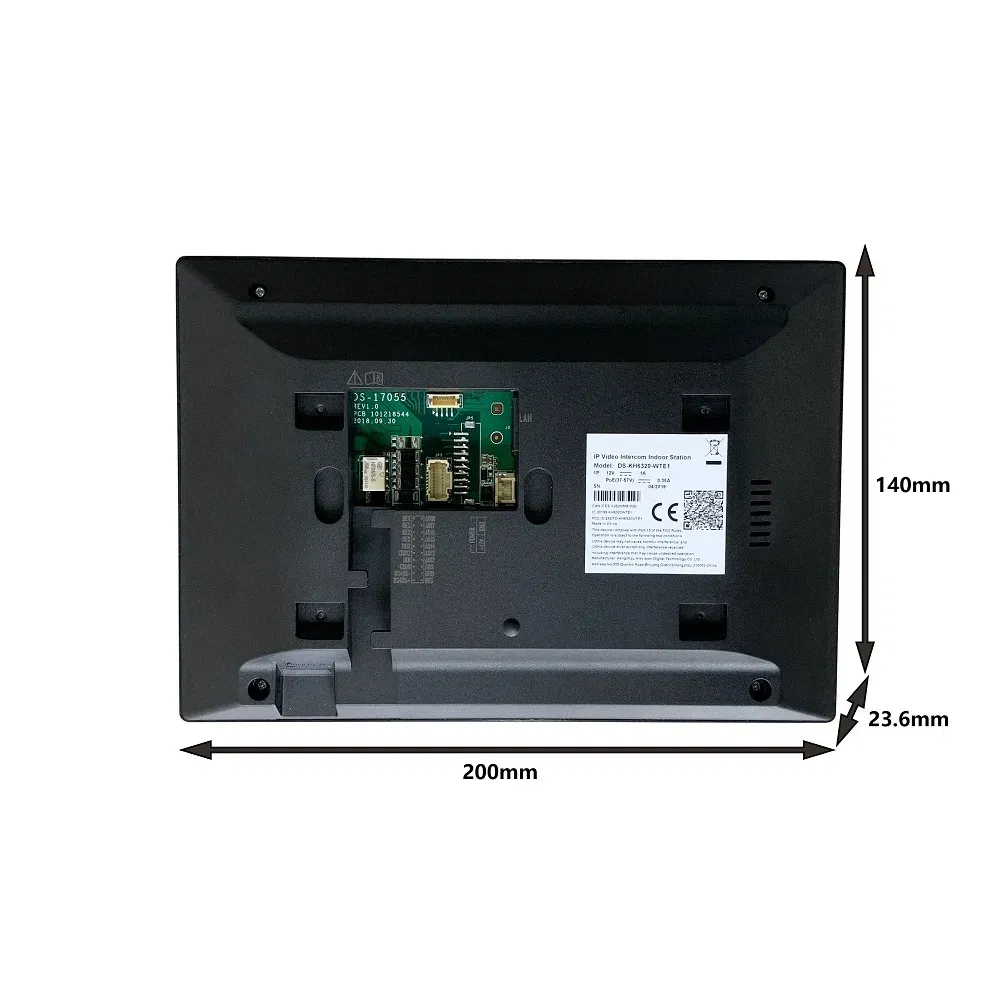

Dimensions

200 mm × 140 mm × 15.1 mm

(7.9" ×5.5" × 0.6")

Weight

683 g (with packaging) 355 g (without packaging)
