This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.

It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.

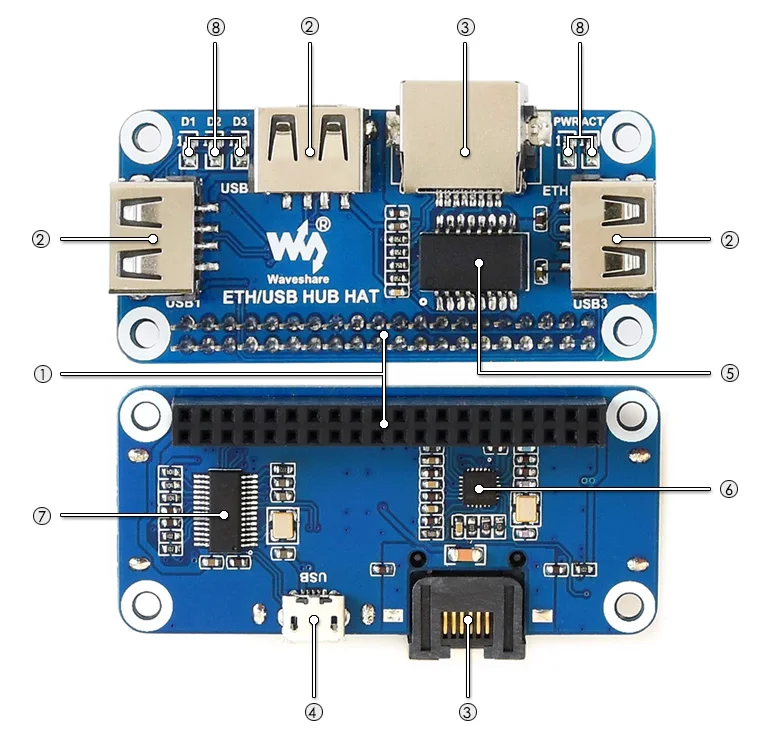

1. Raspberry Pi GPIO interface: for connecting Raspberry Pi


2. USB extended ports: USB1~USB3


3. RJ45 port: 10/100M Ethernet interface


4. USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port


   •
     Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector

   • Raspberry Pi B+ / 2B / 3B / 3B+: connected via  extra Micro USB cable
     (Our pacakge do not include, buy it alone)

5. TS8121A: Ethernet wave filter


6. RTL8152B: 10/100M Ethernet chip


7. FE1.1S: USB HUB chip


8. LED indicators:

   • PWR: power indicator

   • ACT: Ethernet indicator

   • D1~D3: dedicated indicator for USB1~USB3 respectively

•


• Operating voltage: 5V

• Dimension: 65mm × 30mm

• Mounting hole size: 3.0mm

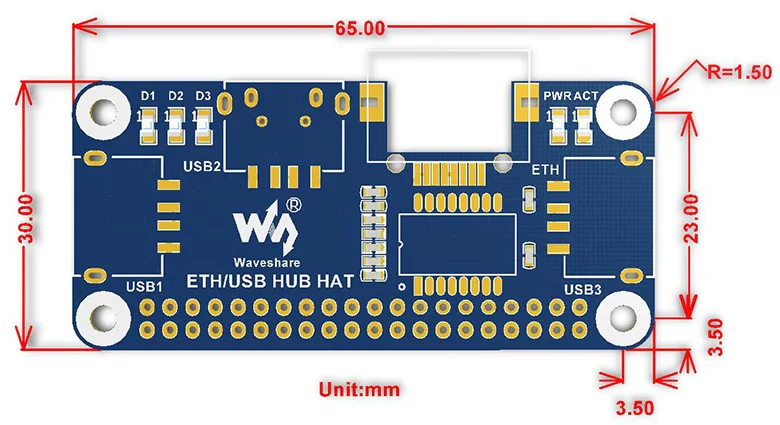

Dimensions

Package Contains

• ETH/USB HUB HAT x1

• Micro USB connector x1

• Micro USB cable x1

• RPi screws pack (2pcs) x1
